After changeover, the screen below appears.
15/07/09 19:10 :00 GS 1 Rental application Stop Faults Alarms
A651: Temporary power grid single Genset
coupling
Validation
Grid CT ratio 20.0

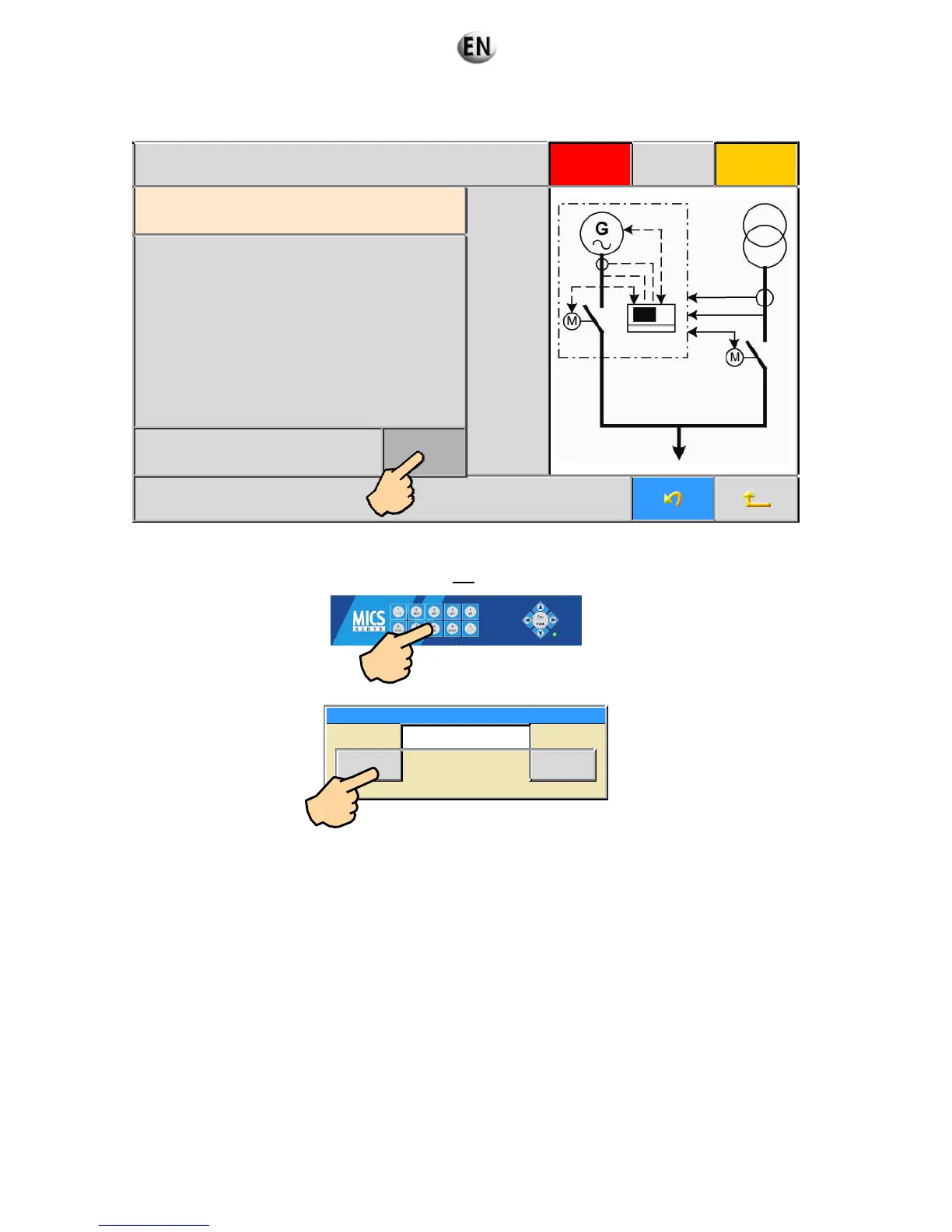

5. To enter the value of the grid current transformer ratio: press the
“GRID CT RATIO” button on the touch screen.
Using the alphanumeric keys of the MICS KERYS: enter the value of the CT ratio in tenths.
Example: CT = 100A/5A (calculation: 100/5 =
20; 20x10=200) value to be entered 200.
CT BUSBAR/Grid setting 1 (1/10)
0<= 0200 <=32767
Valid Esc.
6. Then press “
VALID” .
To Next Page
