Seatex DPS 200 Installation Manual, rev. 4 Appendix F – External remote cabinet
73
Figure 9 Internal assembling
Power Data Input/output
X1 Signal X2 Signal
1 230 V AC 4 TX-
2 230 V AC 5 TX+
3 GND 6 RX-
7RX+
8 PPS-
9 PPS+

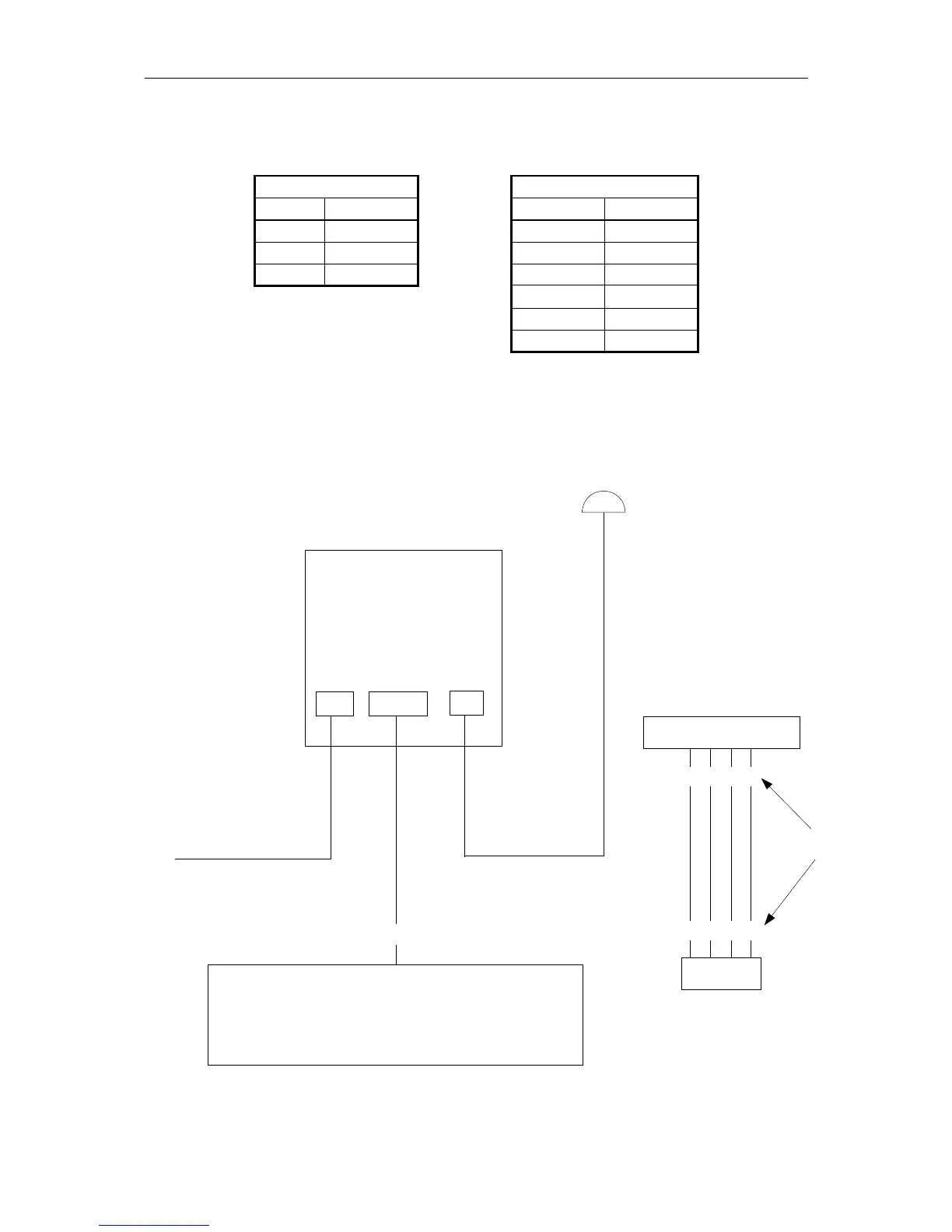

Table 28 Cable terminal strip table
Note It is not necessary to connect PPS- and PPS+ to the DPS unit.
Figure 10 Cabling between DPS and remote cabinet
X2
X2
Com10
8 2 7 3
4 5 6 7
Pin numbers
External remote
cabinet
X1 X2
GPS antenna
DPS
230 V AC
Com10
C3
Power
Data
GPS
