Seatex DPS 200 Installation Manual, rev. 4 Appendix H - NMEA display
81

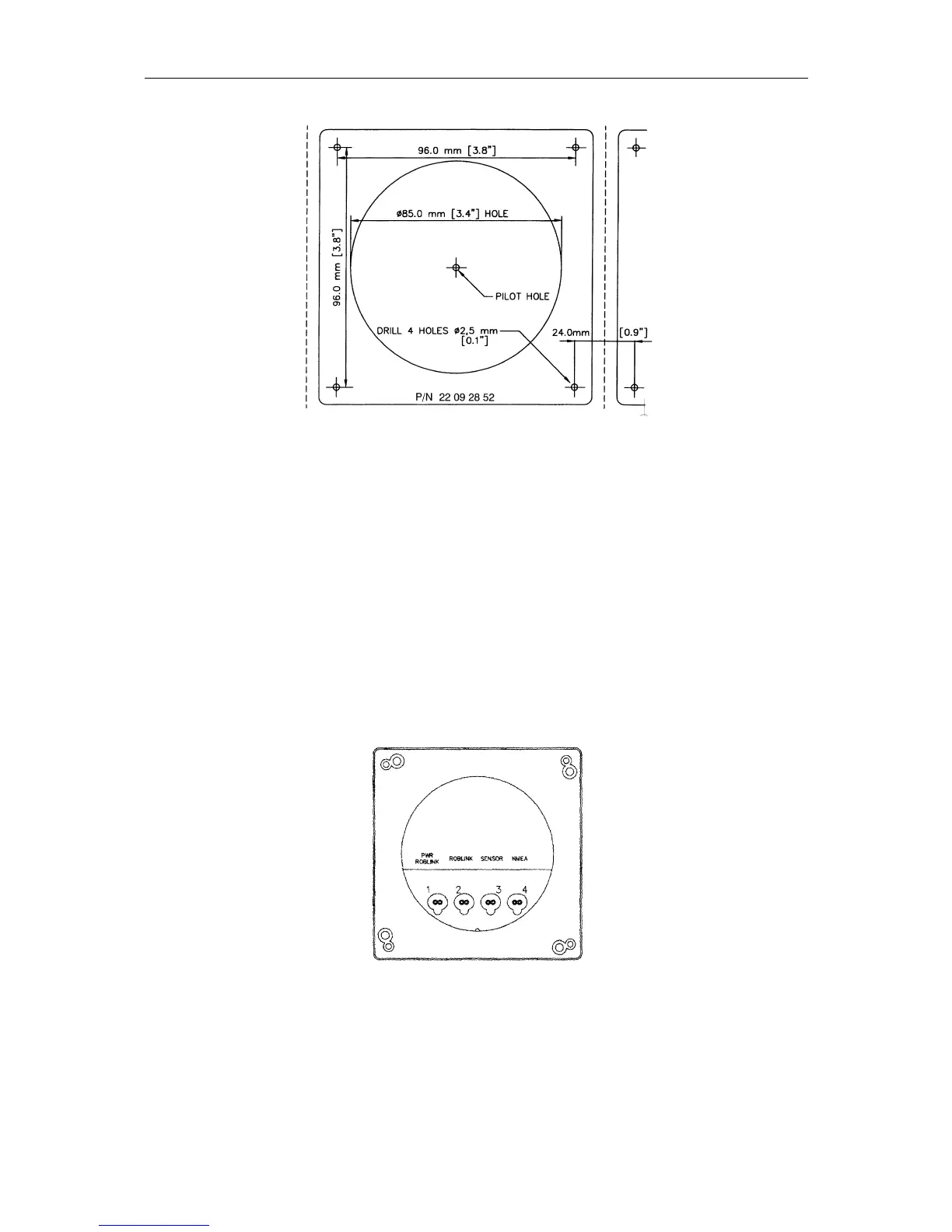

Figure 13 Mounting details
Connectors
The NMEA display has four identical two-pin connector sockets protected by rubber plugs at
the rear. Each socket is identified with number and signal markings.
The NMEA port, port 4, is unidirectional, i.e. it is automatically configured for input or
output. The display communicates with external equipment on port 4 through an RS-422
serial line, 4800 baud, no parity, 8 data bits and 1 stop bit.
Note The NMEA cable must be plugged into port 4. Wrong connection may damage the
connected equipment.
Figure 14 Rear panel of the display
