6.2 Retrofitting baby scales 757/727
You need the following parts from set no. 4520050009:
NOTE
• Select the long connecting cable if you want to mount the
seca 452
interface module to the wall or position it next to the scale at a signif-
icant distance. Select the short connecting cable if you want to
place the
seca 452 interface module directly next to the scale.
• The scanner brackets from the seca 452 sets are not intended for
wall installation. Use a suitable scanner bracket from the scanner
manufacturer. Follow the instructions in the respective installation
instructions.
Depending on the installation and connection version, you may need the
following tools (not included in the scope of delivery):
➔ Preparing the scale
➔ Connecting a seca 452 interface module
➔ Mounting the seca 452 interface module to the wall
➔ Performing final work

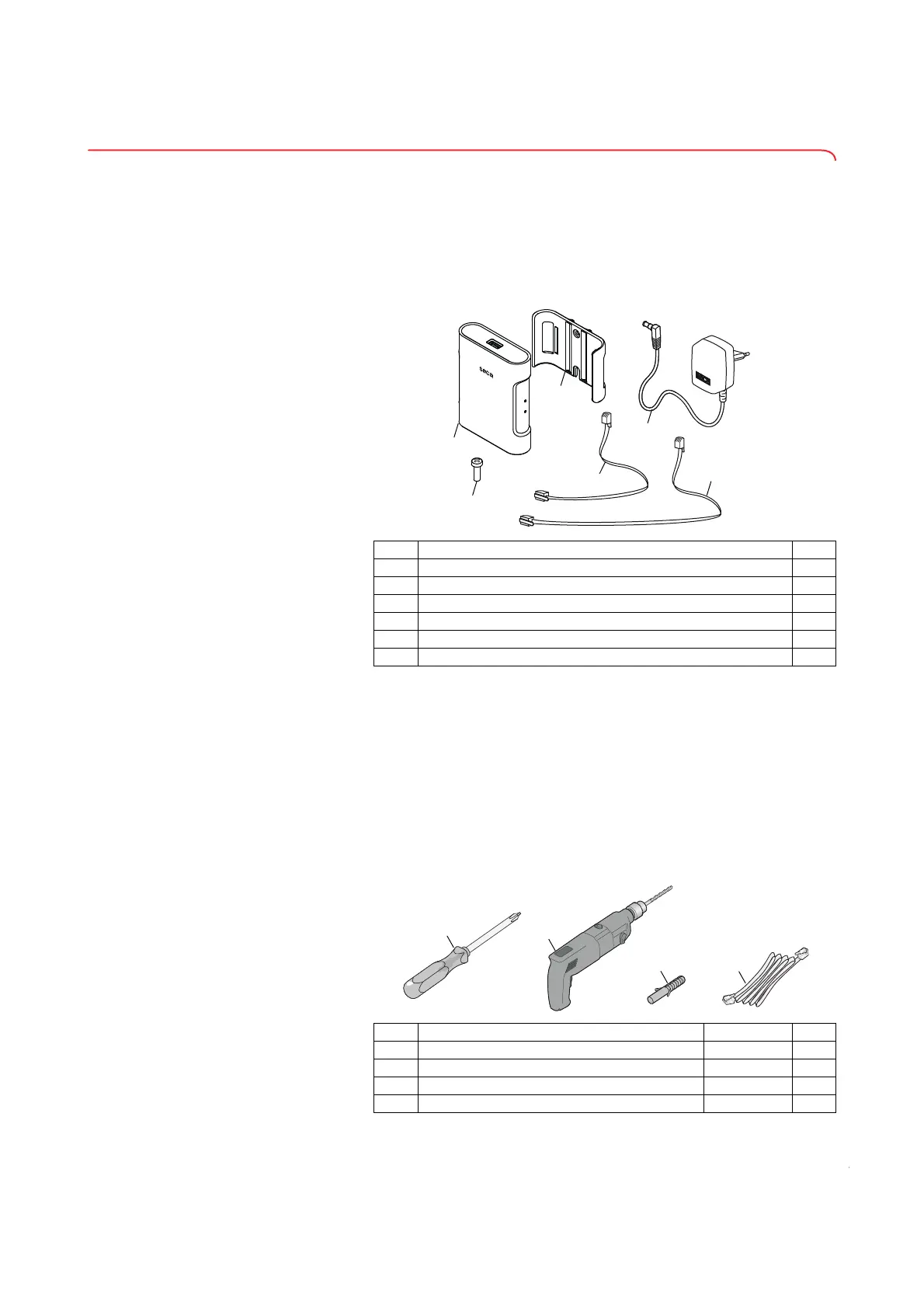

Pos. Component Pcs.
a
seca 452 interface module 1
b Bracket 1
c Power supply unit 1
d Connecting cable, long 1
e Connecting cable, short 1
f Cross-head screw 2
Pos. Component Size Pcs.
1 Cross-head screwdriver PH 2 1
2 Drill Ø 5 mm 1
3 Wall plug Ø 5 mm 2
4 Ethernet cable n/a 1
