Connecting and installing the seca 452 interface module • 47
17-10-01-266-002a/07-2018B
6.4 Retrofitting multi-functional scales 645/644, 665/664, 667, 677/676, 685/684
(models with mounted display)

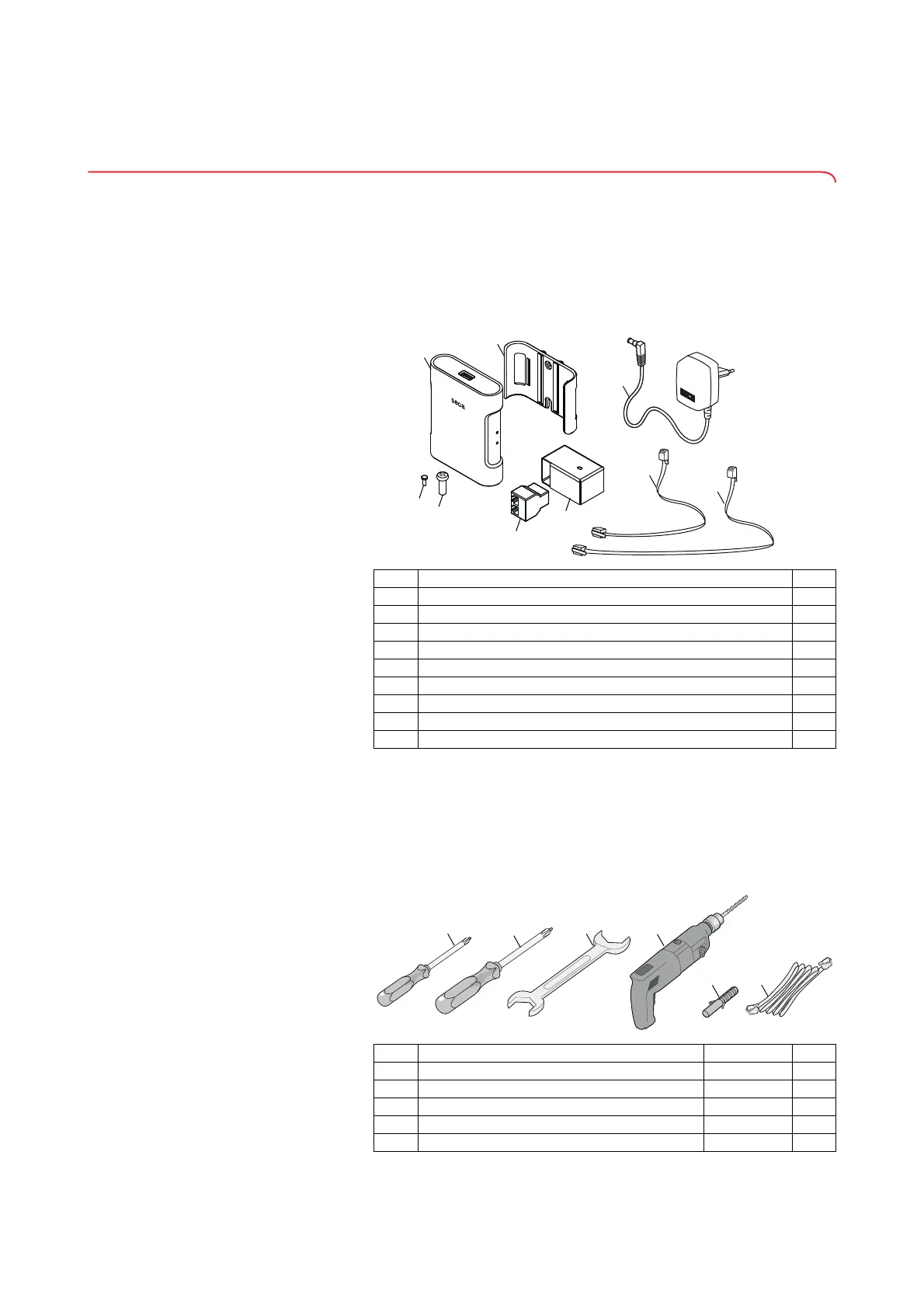

You need the following parts from set no. 4520050009:
NOTE
The scanner brackets from the
seca 452 sets are not intended for wall
installation. Use a suitable scanner bracket from the scanner manu-
facturer. Follow the instructions in the respective installation instruc-
tions.
Depending on the installation and connection version, you may need the
following tools (not included in the scope of delivery):
➔ Preparing the scale
➔ Connecting a seca 452 interface module
➔ Mounting the seca 452 interface module to the wall
➔ Performing final work
Pos. Component Pcs.
a
seca 452 interface module 1
b Bracket 1
c Power supply unit 1
d Connecting cable, long 1
e Connecting cable, short 1
f Adapter housing for Y adapter 1
g Y adapter 1
h Cross-head screw 2
i Hexagon bolt 1
Pos. Component Size Pcs.
1 Cross-head screwdriver PH 1 1
2 Cross-head screwdriver PH 2 1
3 Wrench 5.5 1
4 Drill Ø 5 mm 1
5 Wall plug Ø 5 mm 2
