52 • secaconnect 103/seca 452
17-10-01-266-002a/07-2018B

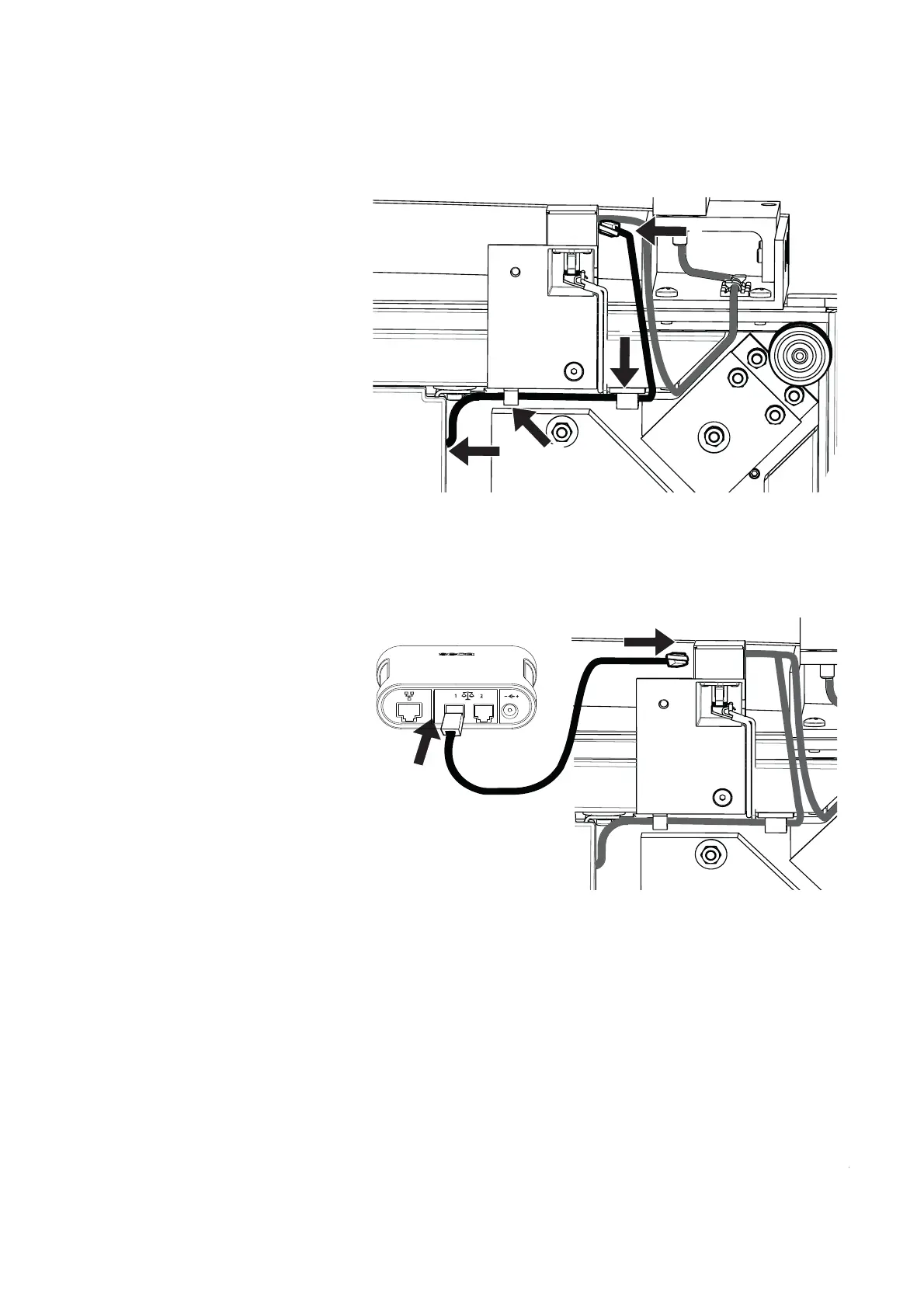

c) Connect the short connecting cable to the electronics box (1)
d) Secure the cable in the cable clips (2, 3)
e) Connect the short connecting cable to the lower connection of the
Y adapter (4)
2. Place the scale onto the ground horizontally.
3. Connect the scale to the seca 452 interface module:
a) Connect the long connecting cable to the connection of the Y
adapter
b) Connect the long connecting cable to interface 1 of the
seca 452
interface module
You have the following options to continue:
► For communication via Ethernet, continue with step 4.
► For communication over WiFi, continue with step 5.
1
2
3
4
