8. Place a slot-head screw in the upper assembly bore and the spacer
sleeve underneath it.
9. Tighten the slot-head screw.
10. Push the upper telescopic element into its lowest position.

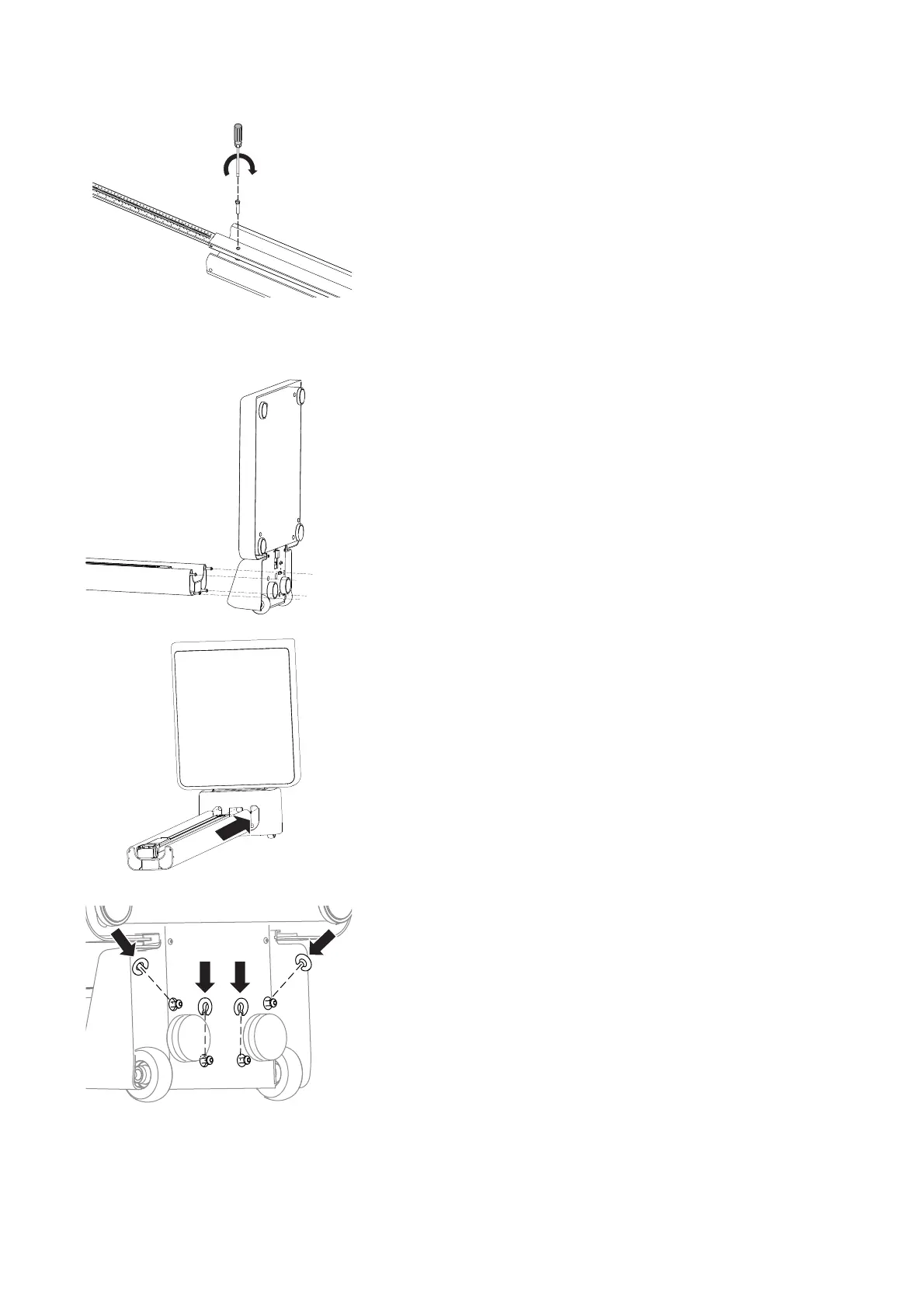

Fitting the column Proceed as follows to fit the column to the weighing platform.
1. Lie the column on the floor and position the weighing platform as shown
in the diagram.
2. Hold the weighing platform steady.
3. Push the column and measuring rod into the openings in the column
holder of the weighing platform.
The screws on the column protrude from the underside of the weighing
platform.
4. Place one lock washer in each of the bores for the screws.
