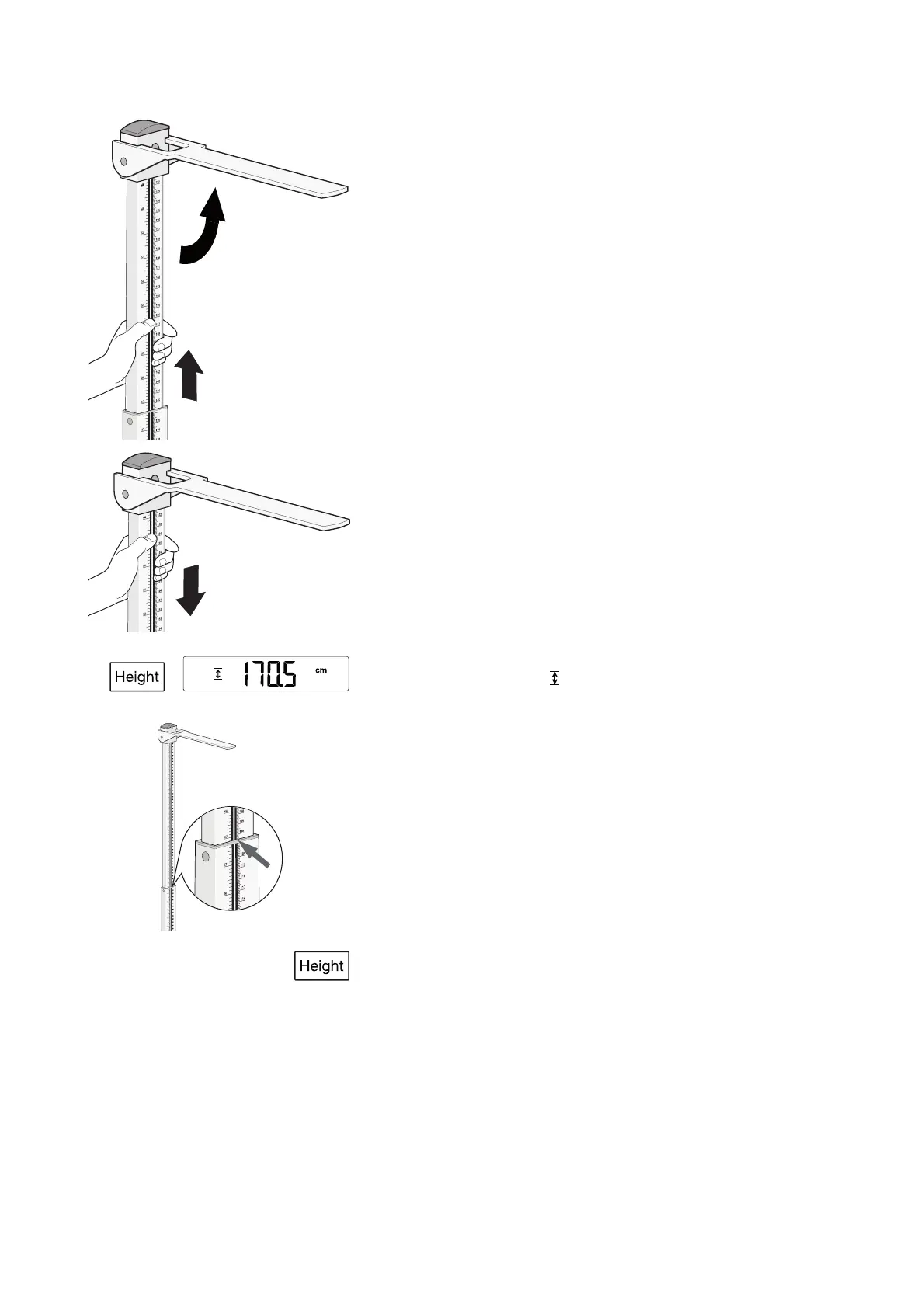

1. Fold up the measuring flap until it engages in a horizontal position.
2. Extend the upper telescopic element until the patient can get under the
measuring flap comfortably.
3. Ask the patient to stand under the measuring flap:
– Upright posture
– Head straight (Frankfort horizontal plane, parallel to measuring flap)
4. Push the upper telescopic element down until the measuring flap is in
contact with the patient's head.
The height value flashes in the display.
5. Press the
Height key.
The height value and the symbol are permanently displayed.
6. Read off the measuring result.
NOTE
• You can also read off the measuring result on the lower telescopic
element (read-off edge 2).
7. To exit permanent display of the measuring result, press the
Height key.
The height value flashes in the display.
8. Ask the patient to step off the weighing platform.
9. Push the upper telescopic element into its lowest position.
10. Fold down the measuring flap.
170,5 cm
