Secutron MR-2300T

15

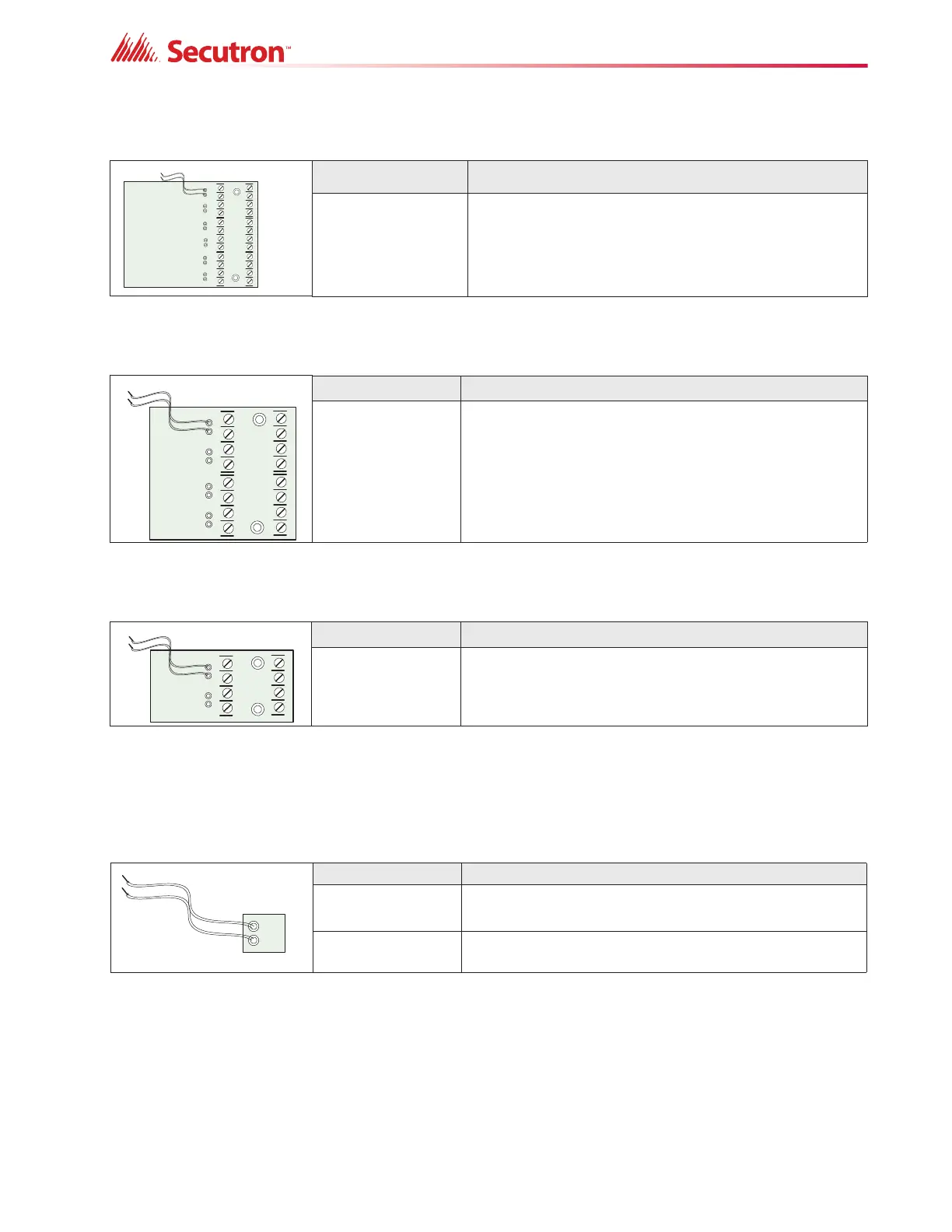

4.6 Input Class A Converter: Six Circuits
4.7 Output Class A Converter: Four Circuits
4.8 Output Class A Converter: Two Circuits
4.9 Active End-of-Line Resistors
The MR-2300-X are power-saving End-of-Line resistors that eliminate the need for an
additional battery cabinet or larger batteries in order to meet the 60 hour standby requirement.
Model Description
MR-2300-A
Input Class A converter Module (six circuits). This
module has built in Active End-of-Line resistors.
Model Description
MR-2300-NC4 Output Class A converter module (four circuits)
Model Description
MR-2300-NC2 Output Class A converter module (two circuits)
Model Description
MR-2300-X Active end-of-line resistor without plate
MR-2300-XR Active end-of-line resistor with end-of-line red plate
BLK RED
BLK REDBLK REDBLK REDBLK REDBLK RED
- DET1 OUT+- DET2 OUT+- DET3 OUT+- DET4 OUT+- DET5 OUT+- DET6 OUT+
- DET1 RET+- DET2 RET+- DET3 RET+- DET4 RET+- DET5 RET+- DET6 RET+
- SIG1 OUT+- SIG2 OUT+
- SIG1 RET +- SI G2 RET +
BLK RED
BLK RED
- SIG3 OUT+- SIG4 OUT +
- SIG3 RET +- SIG4 RET +
BLK RED
BLK RED
- SIG1 OUT+- SI G2 OUT+
- SIG1 RET +- SIG2 RET+
BLK RED
BLK RED
BLACK
RED
