Secutron MR-2300T

32
7.2 Relay Adder Module Wiring
Wire relays on the relay adder modules MR-2312-R12 and MR-2306-R6 as shown in Figures
19 and 20.

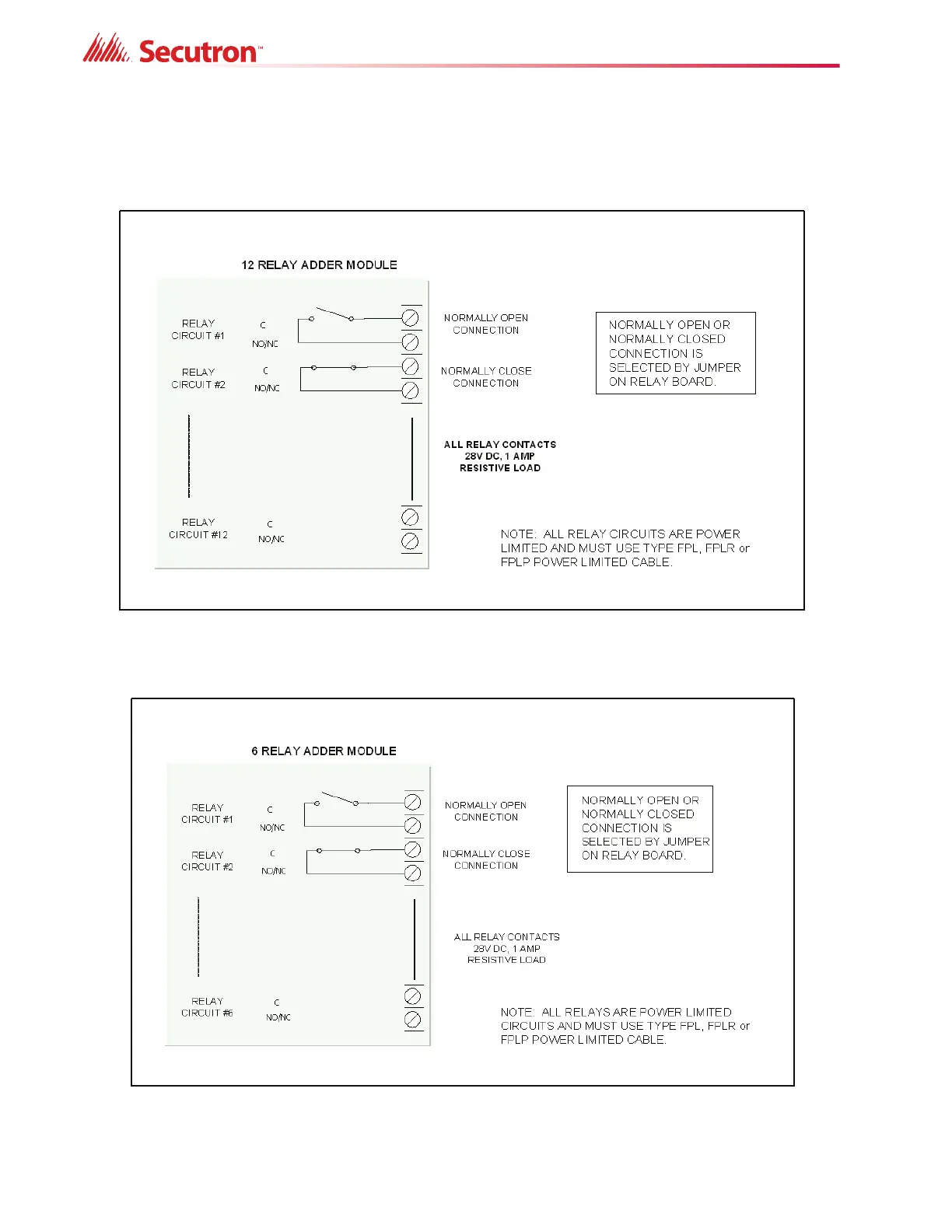

Figure 20 Relay per zone (MR-2312-R12) Terminal connection
Figure 21 Relay per zone (MR-2306-R6) Terminal connection
