Secutron MR-2300T User Manual

18
5.0 Mechanical Installation
5.1 Installing the Enclosure
Install the MR-2300 LED Series Fire Alarm Panel enclosure as shown below. Mount enclosure
surface mount using the four mounting holes, as shown and the screws provided.

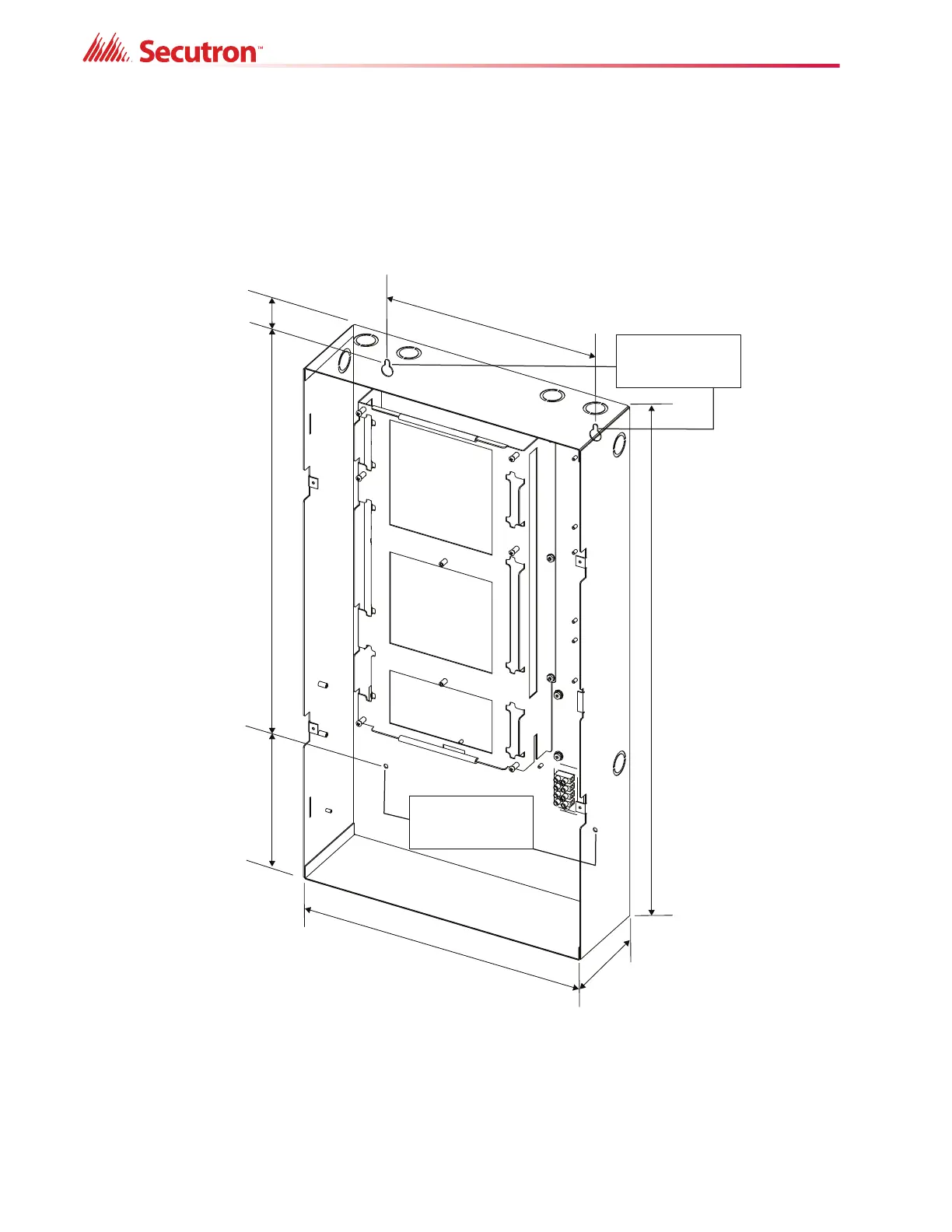

Figure 2 Box dimensions
The backbox may be semi-flush mounted using the trim ring model MR-2312-FT (BLACK),
see Figure 3. Remove the door (also disconnect the ground strap), the dead front and semi-
26.0”
11.0”
1.5”
20.5”
4.0”
14.5”
4.5”
Mounting Holes for
Surface Mounting
Mounting Holes for
Surface Mounting
