SERVICE MAN UAL
15.22
GENERAL
The Seeburg
Type RIT54-56
and
RIT54R-56
Recording Income
Totalizers
are electromech-
anical
counting devices used to total rDoney
deposired
in
the
phonograph coosole and as-
sociated consolettes.
Type
RIT54R-56
is used
on
phonographs equipped
with
or
without
coo-
solettes, Type RIT54-56
is used only on
phooographs not equipped *ith coosolettes.
A window
is
provided
in the iocome totalizer so
the total amount of mooey
recorded
on
the
counter may
be
vieved.
Nlaoually operated
printing
facilities
are
also
provided fot
ptioting
this total oo a form furnished
with the
totalizer.
A lamp connected to the to@lizer illuminates a
THANK YOU
vindov
wheo
a deposit is made.
The shortest
period
of lighciog is
for
dimes aod
the
longest for a dollar.
Basically,
the counter assembly
coosists
of
four
add solenoids
(dime,
quarter,
half-dollar
and dollar),
a countet
motor,
a main shaft as-
sembly
aod a counter. A
coin
or
dollar
bill
causes
the appropriate add solenoid to ener-
gize.
This,
in turn, allows a spring loaded
ratchet
wheel
io
the main shaft assembiy
to
rotare
ao amou[t corresponding to
the
value
of
rhe money. Vhen
the
spriog loaded ratchet
rheel
rotates,
it closes a circuit
to
the counter
motor. The
counter motor drives a
gear
vhich
rewiods the spring and simultaoeously advances
the counter. Vheo
the spriog is fully
wound,
the
circuit to
the
couoter motor is opeoed.
R
ECORDIN G lNCOli,tE
TOTAL I Z ER, Type
Rl T5,t.56
Page I

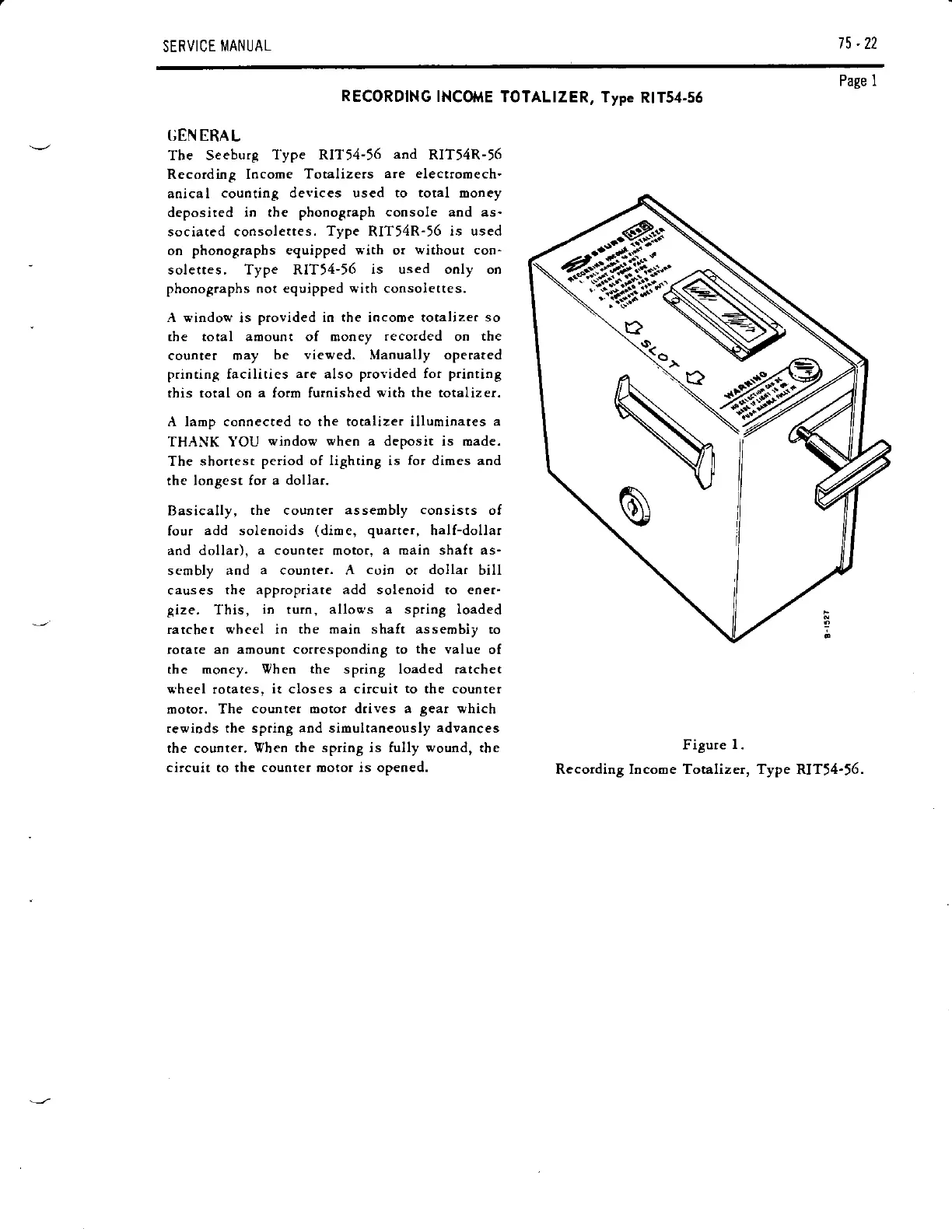

Figure
1.
Recording Iocooe Totalizer, Type
RIT54-56.
