Seeburg LS 1 - Removal or Insertion of Identification Plate; Recording Income Totalizer

SERVIC
E IVAN UAL
T
I
I
i
15
.22
Page 3
RECoRDING INCOME TOTALIZER, Type
RIT54-56
IOET,ITIFICATION
,/ PLAT'
DENTIFICATIOT{
PLATE
RE TA IiIER
OETENT LEVER
CABLE COTIIIECTOR
ASSEMELY
COVER
ASSEfBLY

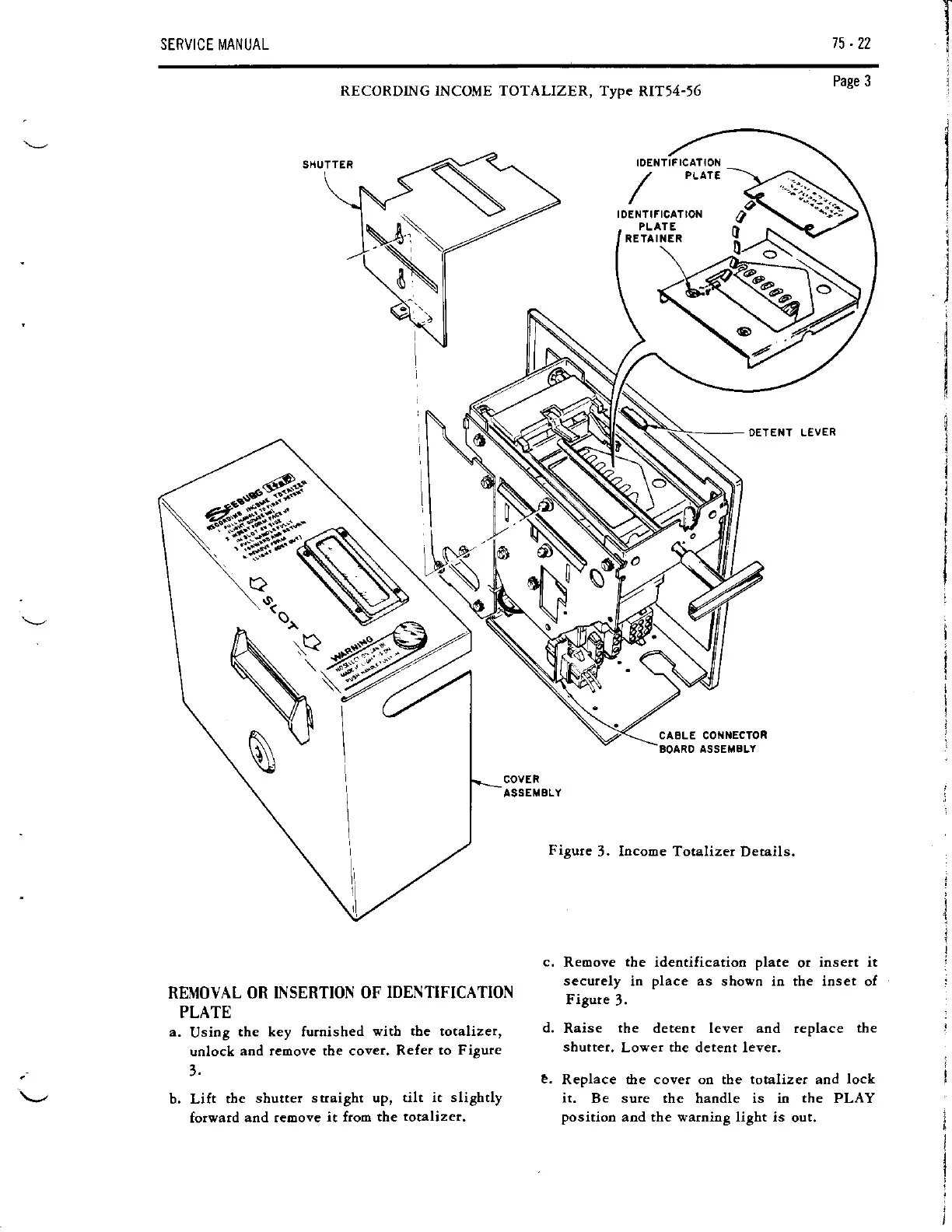

Figure
3.
Incooe Totalizer
Details.
NEMOVAL OR
INSERTION OF
IDENTIFICATION
PLATE
a.
Usiog
the key furnished
with the totalizet,
unlock
aad redove the cover. Refer
to Figure
3.
b. Lift the
shutter
suaight up,
tilt it slightly
forvard
and reoove
it from the
totalizer.
Reoove
the
identification
plate
or
insert it
securely
in
place as
shorpn in the ioset of
Figute
l.
Raise
the
detent lever and replace
the
shutter.
Lower the detent lever.
Replace &e cover on the totalizer and
lock
it.
Be sure the handle is in
the
PLAY
position
and the warniog light is
out.
