SERVICE MANUAL
Page
8
SELECT.O.MATIC MECHANISM
ADJUSTMENTS
,.CLUTCH
I"
- -

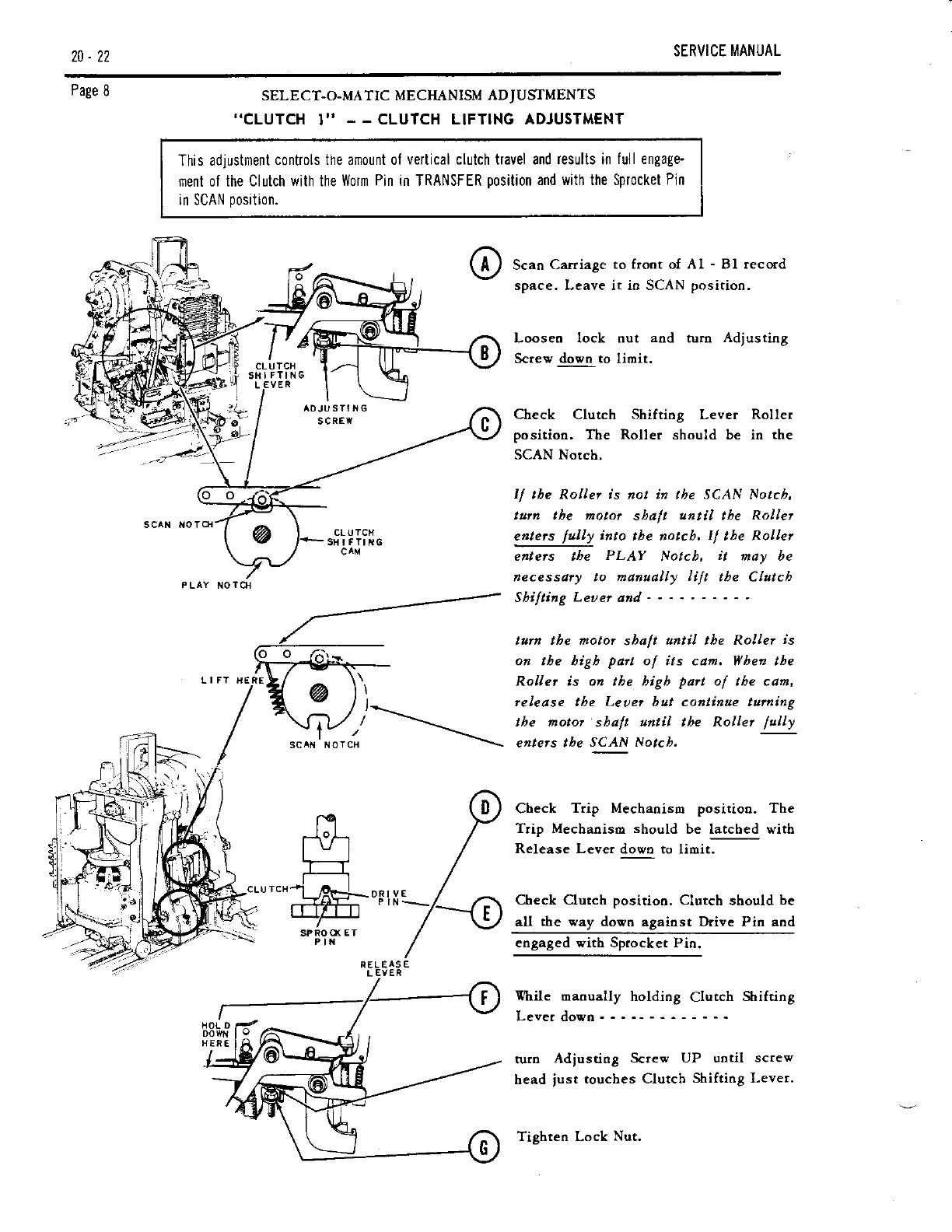

CLUTCH LIFTING ADJUSTMENT
This adjustment
controls the amount of
vertical clutch travel and tesults in
full engage'
ment of
the Clutch
with
the
lrllorm Pin in TRANSFER
position
and with the Sprocket
Pin
in SCAN
position.
Scan
Catriage
to front
of
Al
-
B1 record
space. Leave it in SCAN
positioo.
Looseo lock nut
and
turn
Adjusting
Screv dowo to limit-
Check
Clutch
Shifting
Lever
Roller
positioo. The Roller
should be in
the
SCAN Notch.
ll
tbe Roller is not it rhe SCAN Notcb,
t
rn
,be motor
shalt
until
the
Rollet
entets
lxlly
into
tbe florcb,
Il
lbe
Rollet
en e$ tbe
PLAY
Notcb,
it
,nay be
,recessory to matudlly
lilt
tbe Clurch
Sbiltiag
Leuet
and
-
- - -. - - - - -
,un tbe ,notor
sbal,
Lttil tbe Rollet
is
or, tbe bigb
pd
ol irs cam. Wben tbe
Rollet
is on tbe higb
port
ol tbe cdn,
release tbe
Leuet
b contirr{e ,ur
ing
the floro,
sbdlt
un il tbe Roller
ldly
entets tbe
SCAN Nolcb.
Check
Trip Mechanism positioa. The
Trip Mechanisa should
be latched vith
Release Lever
down to limit.
Cbeck Clutch position. Clutch
should
be
all
the way dowo
aSainst Drive Pin and
eogaged with Sprocket Pin.
nhile manually
holdiog
Clutch
Shifting
Levet dovn
turn
Adjusting
Screw UP uotil
screw
head
just
touches Clutch
Shifting Lever.
Tighten Lock
Nut.
