SERVICE
MANUAL
n-22
This
djustment
establislEs
the correct
posilion
of
the Safety
Lever and results
in
proper
travel of the Safety Plunger when the
mechanism is entering
PLAY
or
SCAN
position.

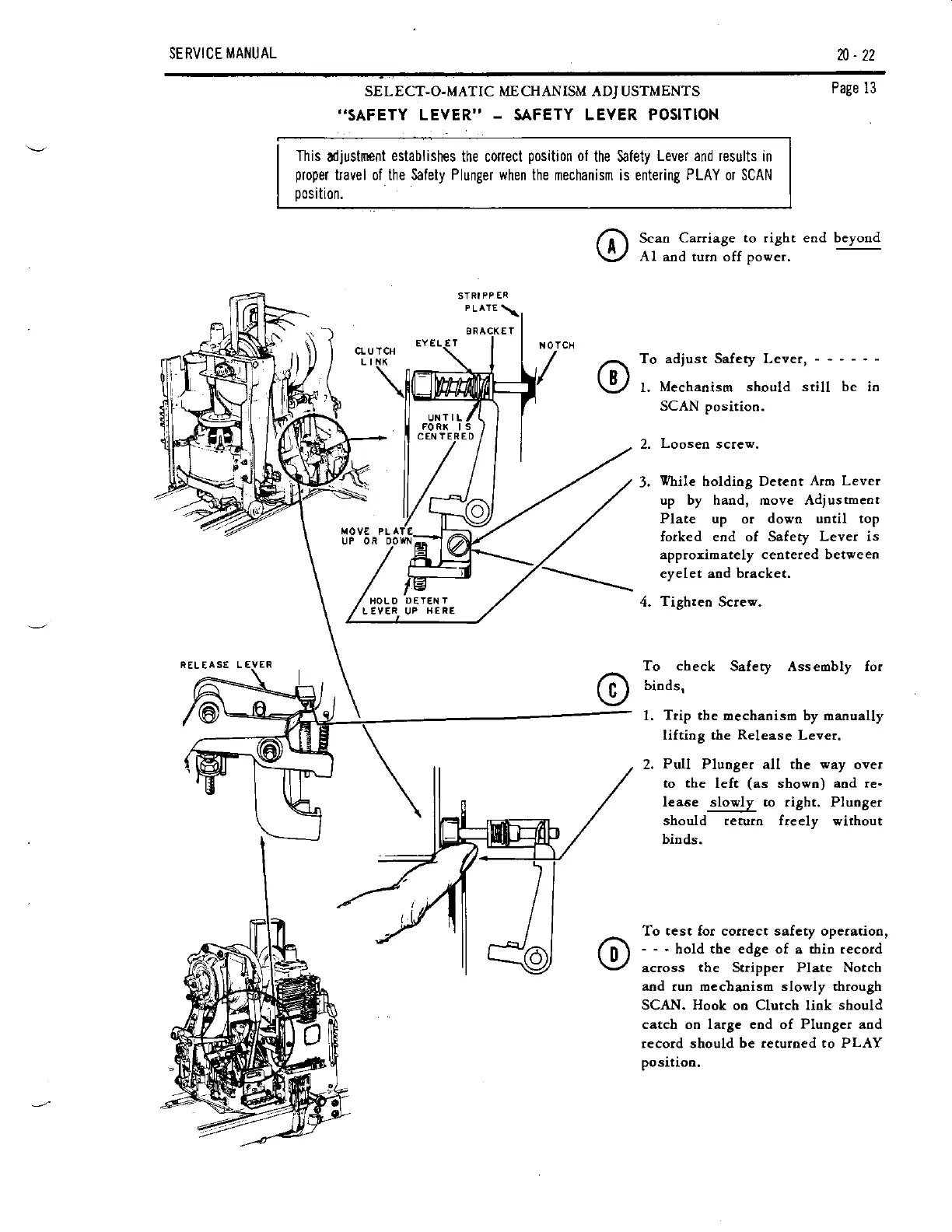

SELECT.O.MATIC MECHANISM ADJ USTMENTS
.,SAFETY
LEVER"
-
SAFETY LEYER POSITION
Page l3
Scan
Carriage to right eod
A1
and turo off
power,
beyond
To adjust Safety Lever,
1.
Mechaoism should still be io
SCAN position.
2.
Loosen
screw.
3.
Vhile
holdiog Deteot
Aro Lever
up by hand, move Adjustmeot
Plate
up or
dowo until top
forked end of Safety
Lever is
approximately ceotered betweeo
eyelet aod bracket.
4.
Tighteo
Screw.
To check
Safety Assembly for
binds,
1.
Ttip
the mechaniso by manually
liftiog the
Release
Lever.
2.
Pull
Plunger all the vay over
to
the
left
(as
shown) aod
re-
lease
1!9y]1
to right. PlunSer
should teturo freely
without
binds.
To test for correct safety operation,
- - -
hold the edge of
a
thin tecord
across
the Sttipper Plate Notch
and tun mechanism slowly through
SCAN.
Hook
oo Clutch liok
should
catch on large end of
Pluoger
aod
record should
be returned to PLAY
position.
CL U ICH
LI
IIOLD DETEN I
L EVER UP H ERE
