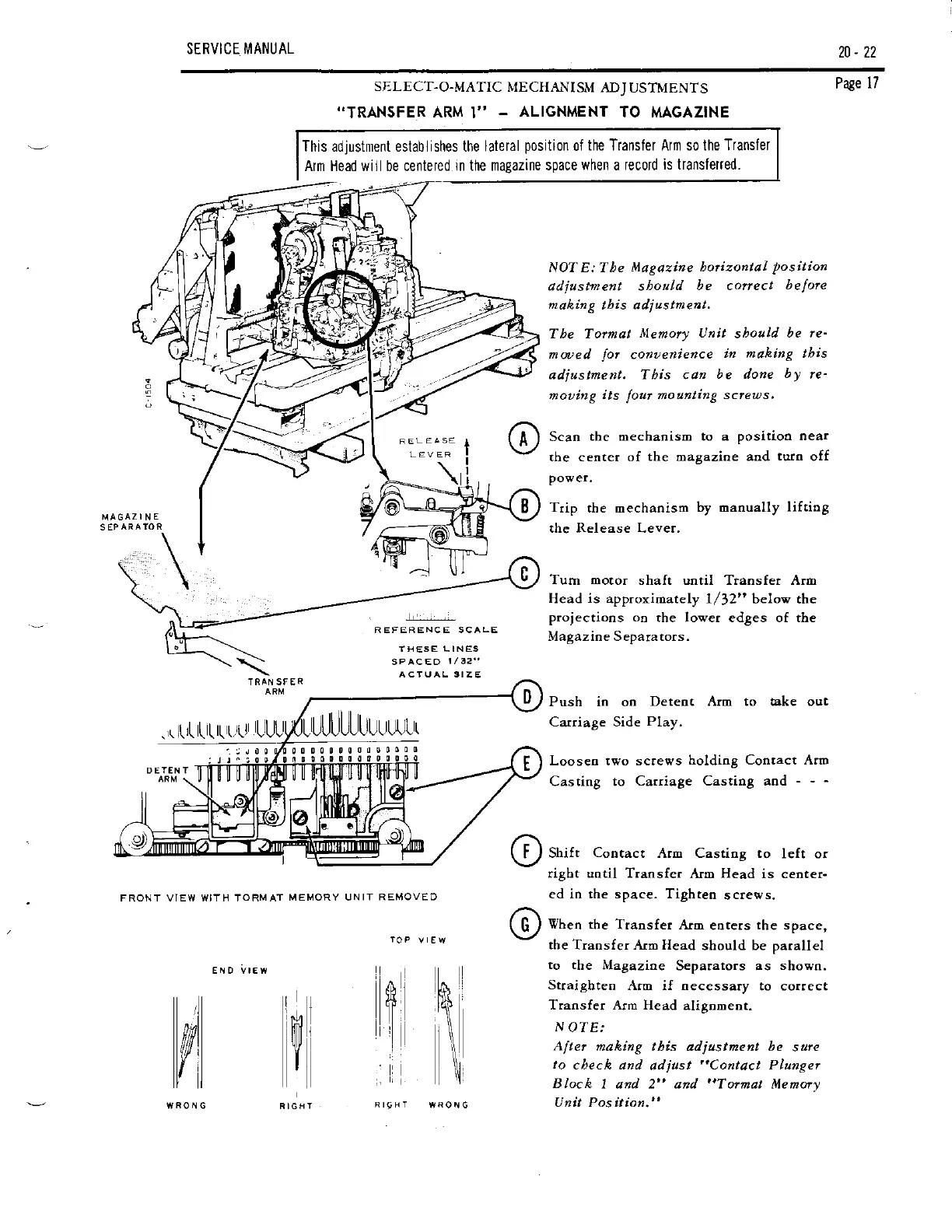

SERVICE MANUAL
?0-22
SELECT.O.MATIC
..TRANSFE
R
ARM
I"
-
This adjustment establishes the lateral
position
of
the Transfer Arm s0 the Transfer
Arm Head will be centered
in the magazine
space when a record
is transferred.
N{ECHANISM
ADJ
USTMENTS
ALIGNMENT
TO MAGAZINE
Page
17
FRONT VIEW WIIH TORMAT MEMORY UNIT
REMOVEO
NOT E: Tbe
Nagazine botizontal
position
ddiustmefit should
be corect
belote
making
tbis adjustment.
The Tormdt
l,lemory Unit
shoald
be rc-
moued
lor
coiuenieflce
in makirg tbis
adiustment. Tbis can
be done
by
re'
mouing
its
lo
t
tuounritle scrc@s,
Scan
the mechariism to a
positiod near
ahe center of
the magaziae aad
turn
off
power.
Trip
the mechaoism
by oanually
lifting
the Release Lever.
Tum motor
shaft until Transfer Arm
Head
is
approximately l/32"
below the
projections
oo
ahe lower edges of the
Magazioe Separators.
Push in on
Deteot Arm to take out
Carriage Side
Play.
Looseo two screws
holding Contact Arm
Casting to
Catriage Casting aod
- -
-
Shift
Contact
Arm Castiog to
left or
right until Transfer
Aro
Head
is center-
ed in the space- Tighteo
screws.
When the
Transfer Arm
eo[ers
the space,
the Transfer Arm Head
should be parallel
to the
Magazioe
Separators as
shown.
Straighten
Arm if necessary
to correct
Transfer Arm Head
alignment.
N
O7E..
Alte?
naking this aditstment be
s
re
to
cbeck attd
adjust
"Contact
Plunger
Block
1axd 2" and
"Tormat
Memcnt
Unit Position."
nll
IHESE
T.I
N ES
SPACEO
!/32"
ACTUAL SIZE
.(
[( [ l(
urll
UUUUUUuuuut,
DETENT
