SERVICE MAIIUAL
10-22
Page
19
SELECT-O-MATIC
PHONOGRAPH, Model LSI

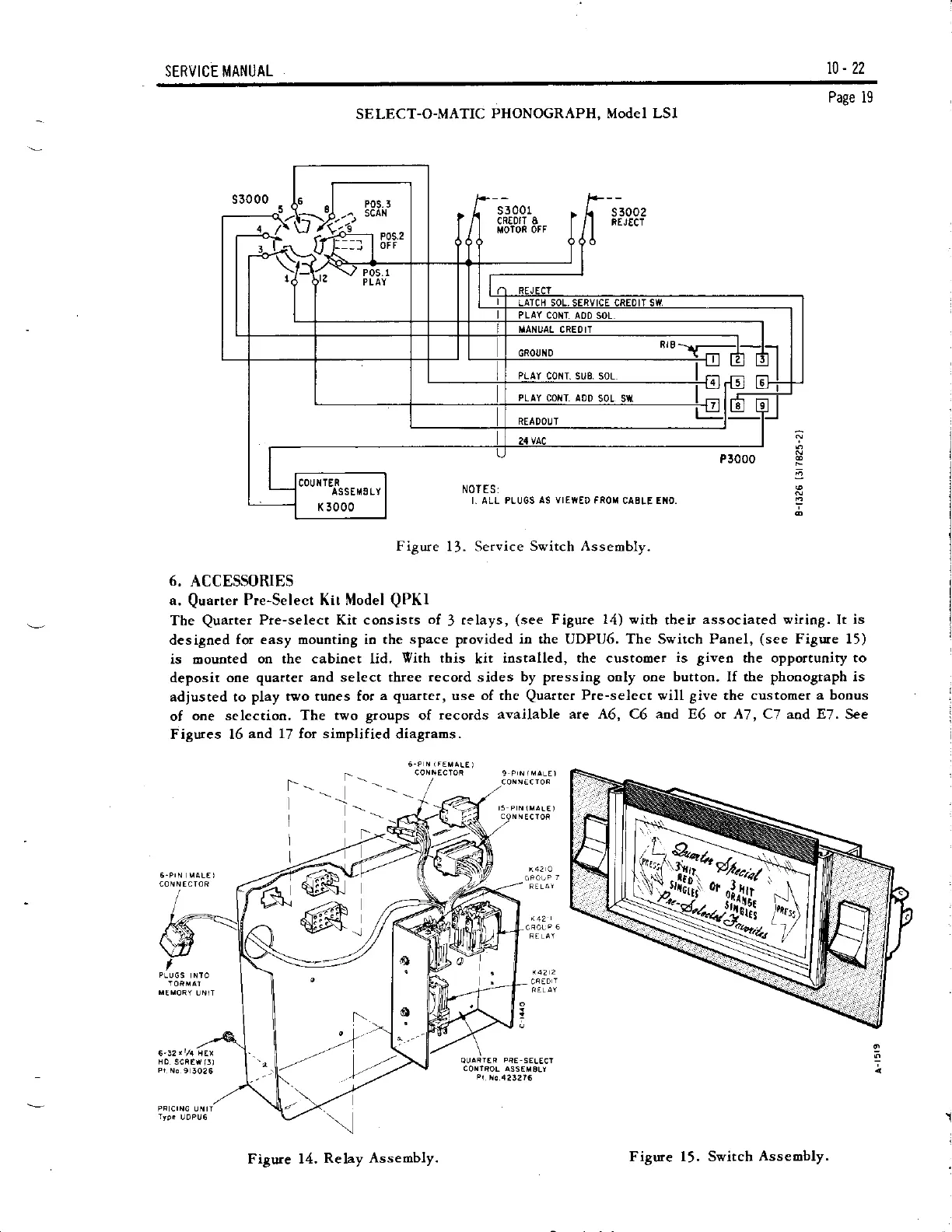

Figure
13. Service
Switch Asseobly.
6.
ACCESSORIES
a.
Quarter
Pre-Select Kit Model
QPKI
The
Quarter
Pre-select Kit consists
of
3
relays,
(see
Figure 14) with
their
associated wiriog.
It
is
designed
for easy mounting io the
space provided in the UDPU6, The Switch Panel,
(see
Figure 15)
is oouoted
on the cabinet lid,
Vith this
kit
iostalled, the customer
is giveo
the opportunity to
deposit
one
qua(er
aod
select three
record
sides
by pressing
only one
buttoo.
If
the phonograph is
adjusted to
play rwo runes for
a
quarter,
use of the
Quarter
Pre-select
will
give
the customer
a bonus
of
one selectioo,
The two
groups
of
records
available are A6, C6 and E6 or A7, C7 and E7.
See
Figures 16
and 17 for sitoplified
diagrams.
I
I
\
t. aLt PLU6S
AS VrEtE9
FRoll CAE|-E Et{o.
Figure 14.
Relay Assembly.
Figure 15. Switch
Asseobly.
