Seeburg LS 1 - Rubber Bumpers

20.22
SERVICE
!lANUAL
Page 38

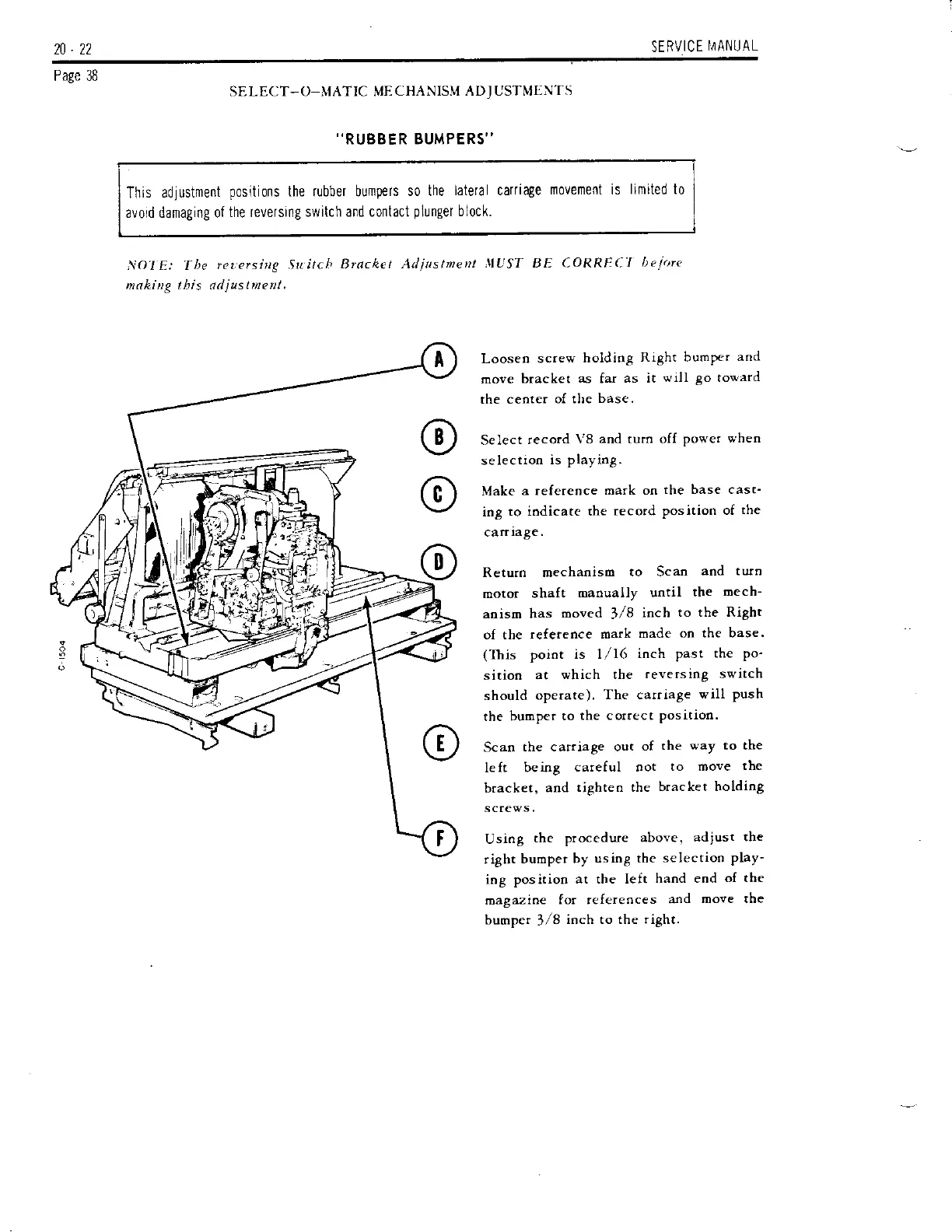

SELECT_O_TIATIC MECHANISM
ADJUSTMENTS
,.RUBBER
BUMPE RS,,
This
adjustment
positions
the rubbel burnpers
so the
lateral calriage
movement is
limited to
avord damaging of
the leversing
switch and contact
plunger
block.
NolF,:
'the
retersirtg
stLitcl:,
Ilrdcket Aditstnent
naki ng this .td
justne
l,
,\lU
ST
BF,
(.oRRF,CI
belrne
Loosen
screw
holding
Right bumper
and
move
bracket as far
as it
will go to*'ard
the center of the
base.
Select
record
\'8
and
turn
off power
when
selection
is
playing.
Make
a reference
mark on
the base casr_
ing
to iodicate the
recotd
position of
the
carriage.
Return mechanism
to Scan
and turn
motor
shaft
maoually until
the
Dech-
anism has
moved
3/8
inch
to the RiSht
of the
reference mark
made oo
the base.
(This
poiot is l,/16
iflch
past the
po-
sitioo
at
which rhe
reversing switch
should
operate).
The carriage
will
push
the bumper
to
the cotrect
Posirion.
Scan the
carriage out
of
the way to the
Ieft
beiog
careful tot
to move
the
bracket,
and
tighten the
bracket holding
screws.
Using
the procedue
above,
adjust the
right
bumpet by
using the
selection
play-
ing
positioo at the left
hand end
of the
nag^zioe
for references
and
move the
bumper
3/8
ioch to the right.
