Seeburg LS 1 - DETENT SWITCH - CONTACT GAP AND PRESSURE ADJUSTMENT

SERVICE MANUAL
20.22
Page
14
SELECT-O-MATTC
MECHANTSM
ADJUSTMENTS
.,GUIDE
ROLLERS"
-
CARRIAGE GUIDE ROLLER
ADJUSTMENTS

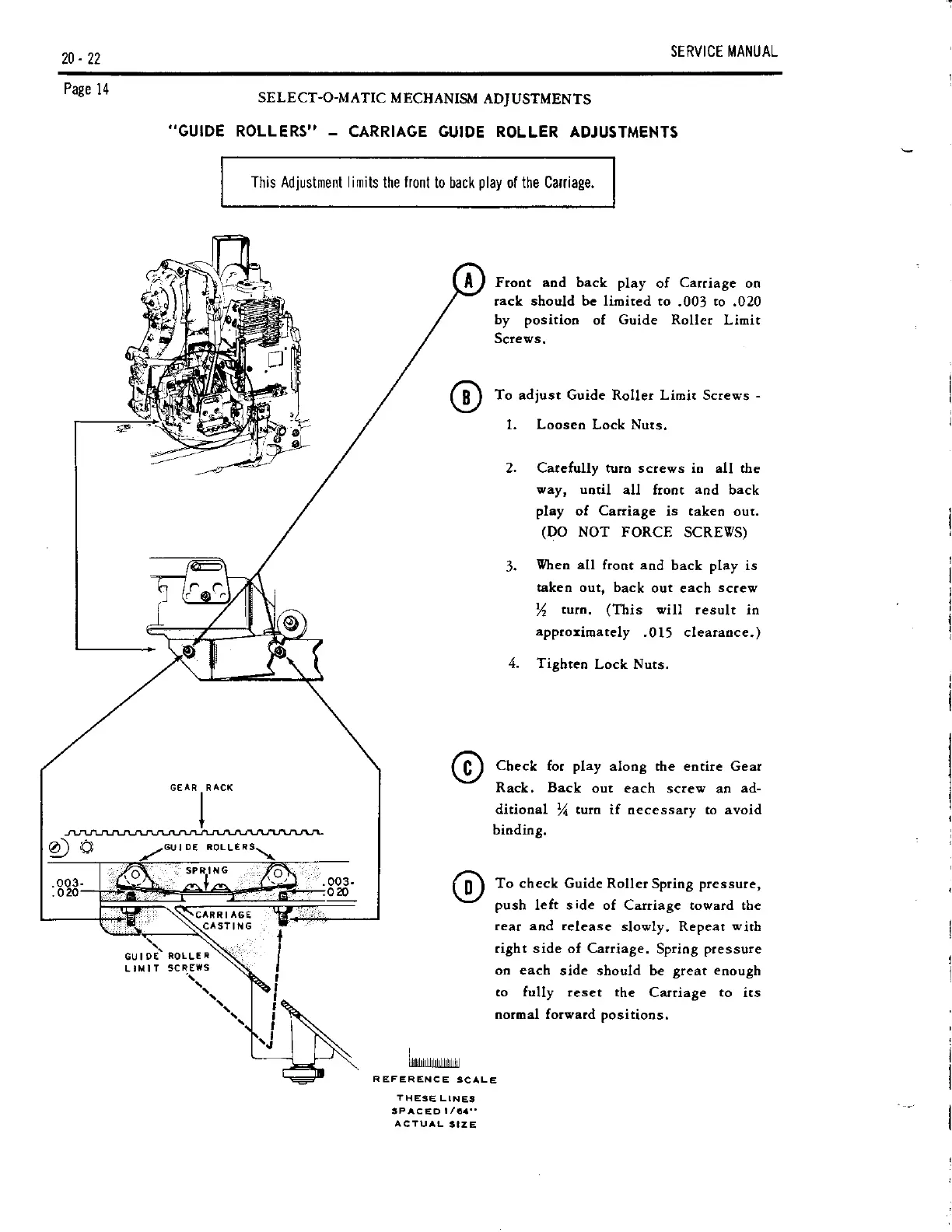

This Adjustment limits
the
front
to back
play
of the Carriage.
Froot and back play
of
Carriage
on
rack should bc limited to.003 ro
.020
by positioo
of
Guide Roller
Limit
Screvs.
@
f. adjust Guide Roller Limit Sctews
-
1.
Looseo
Lock Nuts.
Carefully turo screws io all the
vay, uotil
all froot
and
back
play
of
Carriage
is taken out.
(DO
NOT
FORCE SCREVS)
Vheo
all
ftoot and
back play is
taken out, back
out each
screw
f
turn.
(This
qill
result in
approrimately
.015 clearance.
)
Tighteo
Lock Nuts.
Cbeck
for
play
along the entire Geaf
Rack. Back
out each
screw an
ad-
ditioial
/a
turo
if oecessary to avoid
binding.
To check Guide Roller
Spring
pressure,
push
left side of Cartiage torvard the
rear and release
slowly. Repeat
with
right side of Carriage.
Spriog
pressure
on each
side should be
great enough
to fully reset the
Carriage
to
ias
normal forward positions.
3.
4.
GUIOE
sc REts
{
I
\i
t,
I
I
a,j
REFERENCE
3CALE
'
HE3E LINE!
SPAc
€O
I /Ga"
A
C
TUAL
3IZE
