SERVICE
MANUAL
20-
22
Page
12

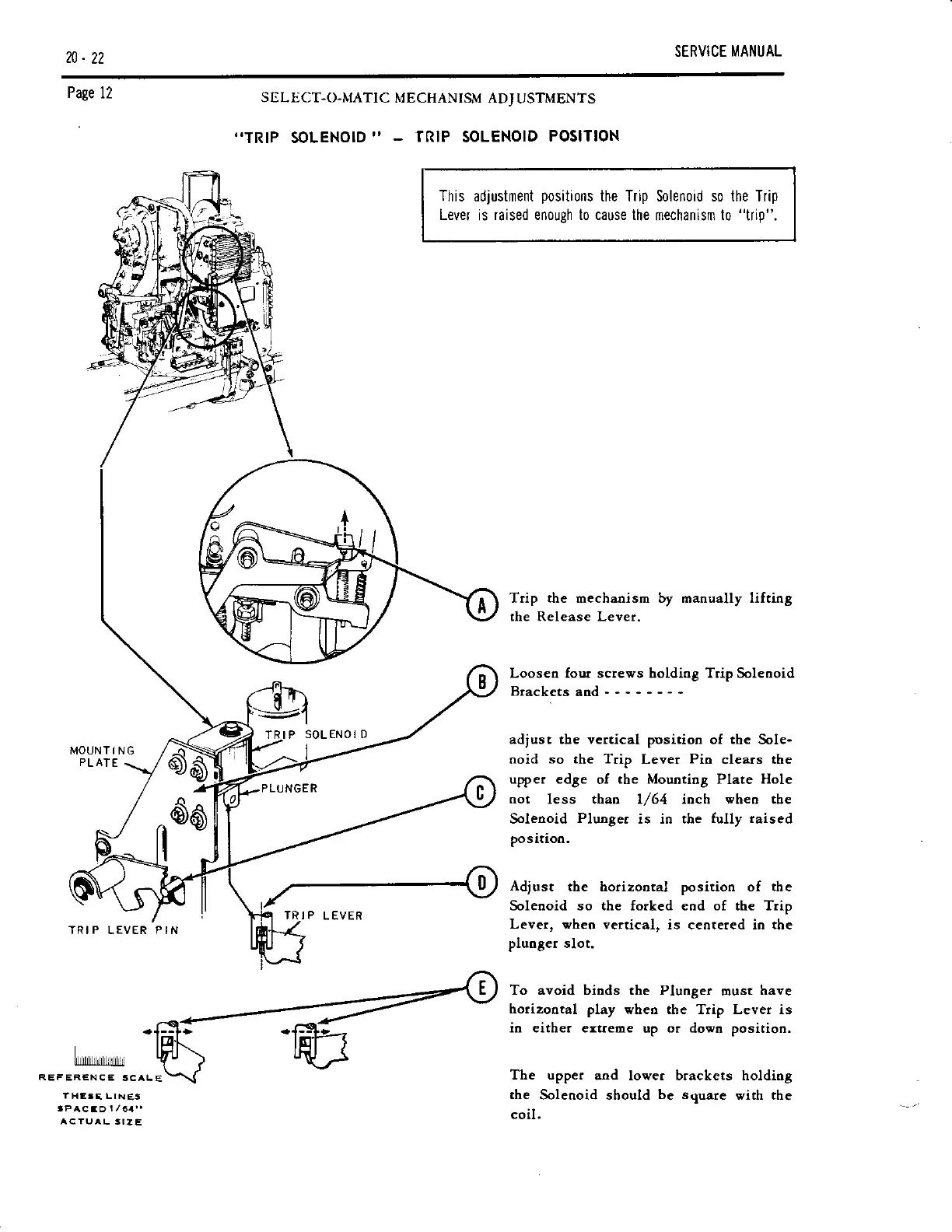

SELECT.O.TIATIC
MECHANISM ADJ
USTMENTS
..TRIP
SOLENOID
"
-
TRIP
SOLENOID
POSITION
REFERENCE
5CAI
E
IHEIT
L INE!
aPAC
aD
I /64i1
ACIUAL
I]12E
This adjustment
positions
the Trip Solenoid so the Trip
Lever
is raised
enough to cause the
mechanism t0 "trip".
Trip the mechaaism by manually lifting
the Release Lever.
Loosen four screws holdiog Trip Solenoid
Brackets
aod
adiust the vertical positioo
of
the
Sole-
aoid
so the Trip
Lever
Pio
clears the
upper edge
of
the Mountiog
Plate
Hole
oot
less thar l/64 inch wheo the
Soleooid
Plunger
is in the
fully raised
position.
Adjust
the horizootal position
of
the
Soleooid so the forked end of the Trip
Levet, when vertical,
is ceotered io the
plunger slot.
To avoid binds the Plunger
must
have
horizootal play
wheo the Trip Lever is
in either ert.ebe
up
or
down
posirion.
The upper
and lower brackets holdiog
the
Solenoid should
be square
with the
coil.
SOLENOID
