SFRVICE MANUAL
SELECT.O.MATIC
MECHANISM
ADJUSTMENTS
.,POPULARITY
METER,,
-
DIAL ADJUSTMENT

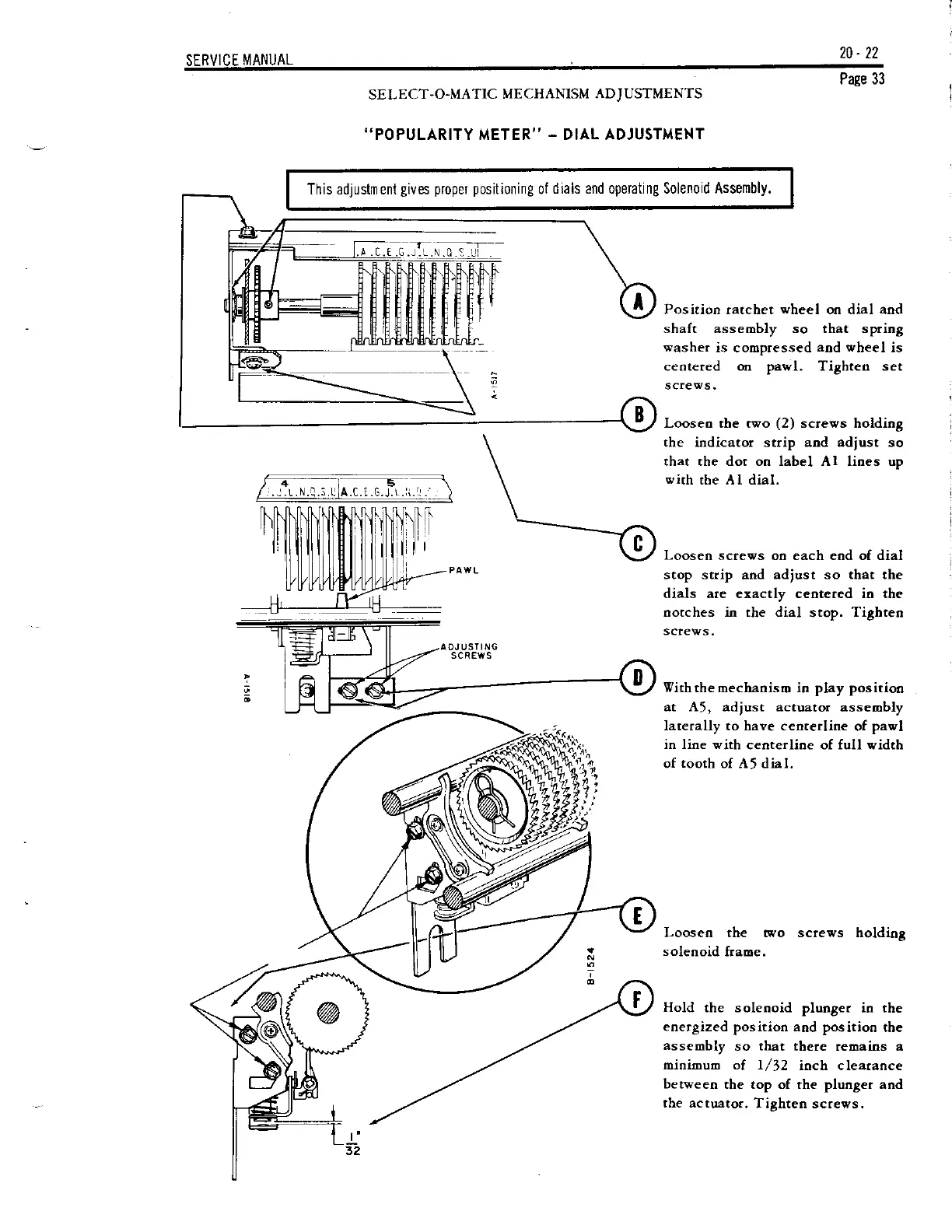

This adlustment
gives proper p0sitioning
of
dials and operatinB Solenoid Assembly.
Page 33
Position ratchet
wheel
on dial aod
shaft assembly so that sFing
washer
is compressed
and wheel
is
ceotered on pavl. Tighten set
sclews.
Looseo the rwo
(2)
screws holding
the indicator
strip
and adiust so
that the dot on label Al lines up
with the Al dial.
Loosen
screws oo each end of dial
stop srip
and
adiust so that the
dials ate elactly ceotered io the
notches in the dial
stop.
Tighten
scfews.
With the mechaoiso in pl,ay
positioo
at Ar, adiust actuator
assembly
laterally to have centerline
of
pavl
in line with
centerlioe of full vidth
of tooth of A, dial.
Looseo rhe wo screws holdiog
solenoid fraoe.
Hold
the solenoid plunger in the
energized position aod position
the
assembly
so
that
there remains a
minimum of l/32
inch clearance
beweeo
the top of the
plunger
and
the actuator.
Tighten screvs.
