Sega Let’s Go ISLAND! - Assy Main Bd

108
PARTS LIST
LGI-4000
ASSY MAIN BD

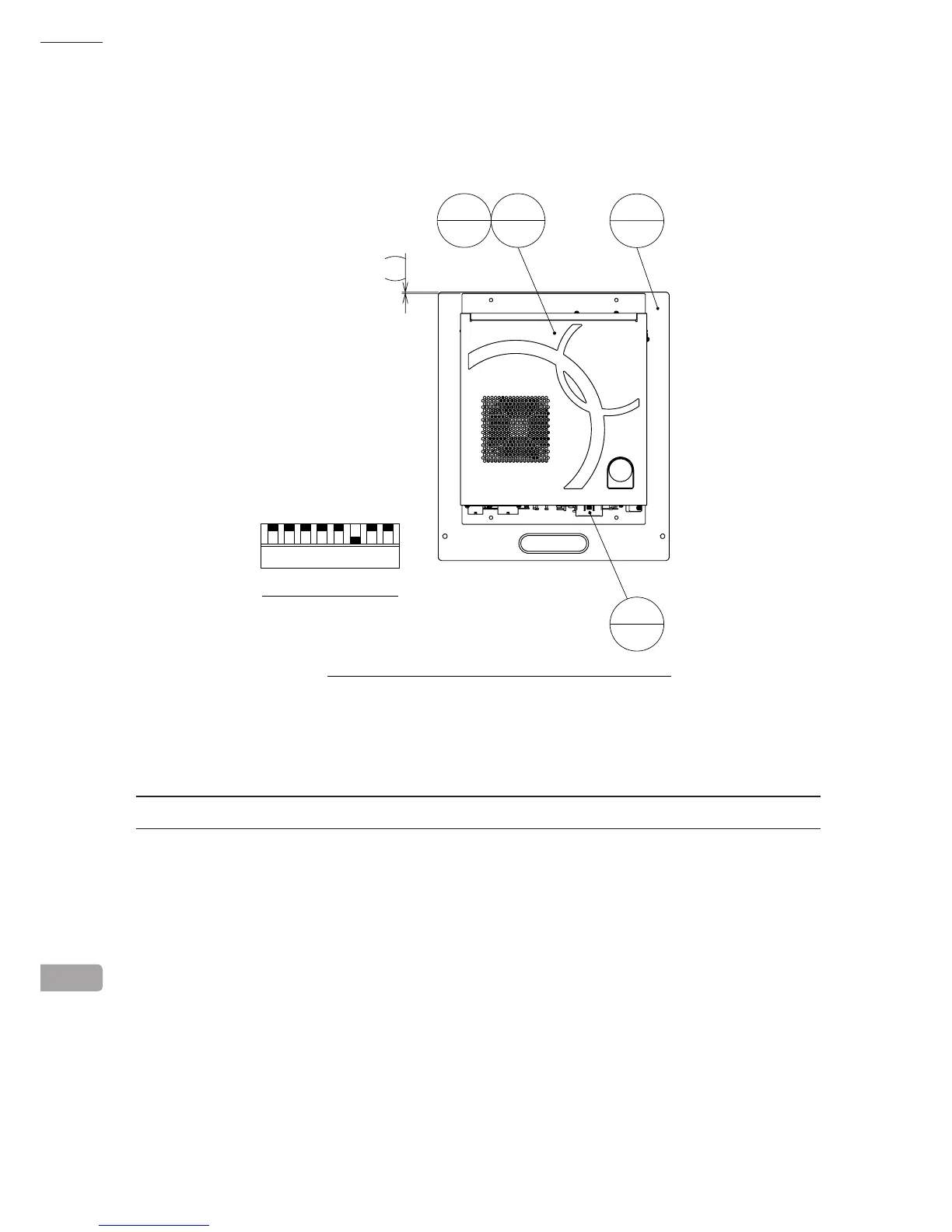

ITEM NO. PART NO. DESCRIPTION NOTE
1 LGI-4001 WOODEN BASE MAIN BD
2 847-0001D-02 ASSY CASE WDE W 1GB EXP
3 253-5644-010BG KEY CHIP RGW LGI
1 2 3 4 5 6 7 8
↓ON
2
2
1
1
1
201
4
3
1
DIP switch setting (2) should be as above.
DIP switch setting
21
