Sega Let’s Go ISLAND! User Manual

18
ASSEMBLY AND INSTALLATION

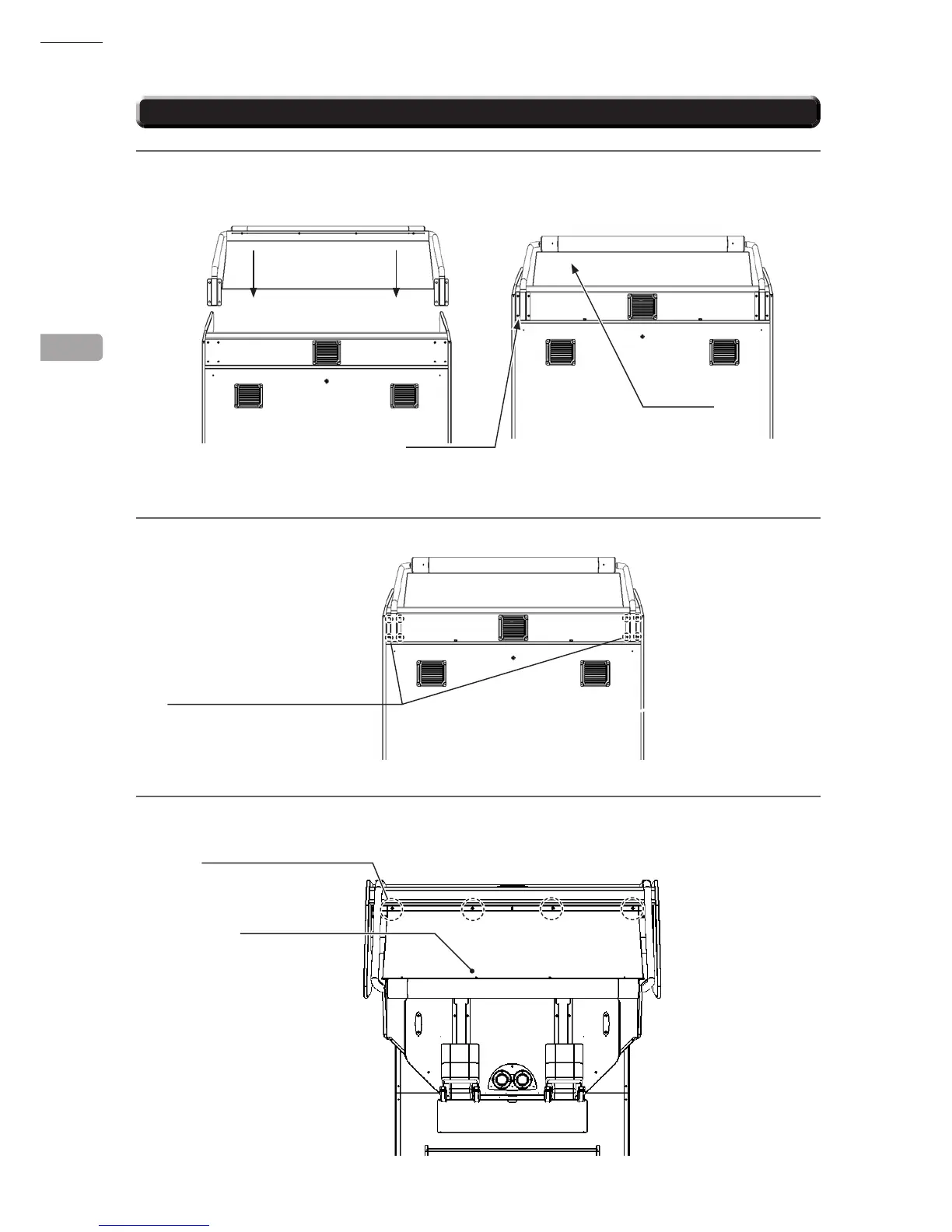

6-1 ATTACHING THE BILLBOARD
1
Using 2 or more workers, lift up the billboard and hook the bottoms of the pipes through the square holes
in the back of the front cabinet.
2
Afx the billboard with the 8 hexagonal bolts.
3
Afx the bottom of the billboard sheet to the front cabinet with the 4 screws.
6
HEXAGONAL BOLT (8)
M8 x 30, w/at & spring washers
FIXING POINTS
BILLBOARD
SCREW (4)
M4 x 8,
w/at & spring washers,
large at washers used
BILLBOARD SHEET
