88
RINGWIDE

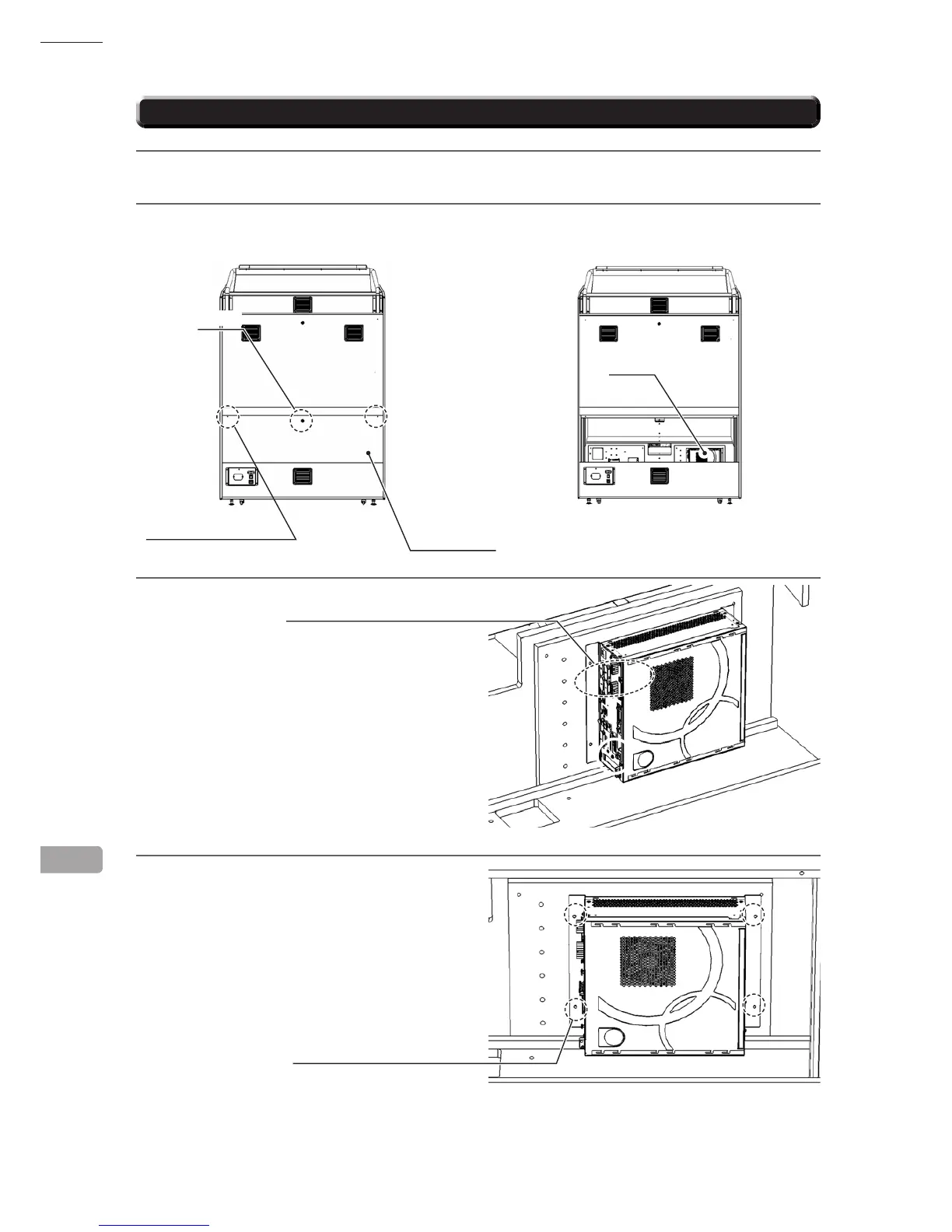

18-1 REMOVINGTHERINGWIDE
1
Turn off the power switch.
2
Remove the 2 truss screws, unlock the door to remove.
3
Disconnect the 6 connectors.
4
Remove the 4 machine screws which
secure RINGWIDE into the cabinet.
18
REAR DOOR
TRUSS SCREW (2), black
M4 x 25
Unlock
CONNECTORS
PWR (2), VGA, AUDIO, USB, SERIAL
Macxhine Screws (4)
M4 X 20, MSCR PAN W/FS PAS
RINGWIDE
