36
SWITCH UNIT AND COIN METER
Do not touch undesignated places. Touching places not designated can cause electric
shock or short circuit.
 9
SWITCH UNIT AND COIN METER
●Adjustthesoundtotheoptimumvolume,takingintoconsiderationthe
environmentalrequirementsoftheinstallationlocation.
●RemovingtheCoinMetercircuitryrendersthegameinoperable.
●WhenyouentertheTESTMODE,fractionalcoinandbonusadderdataiserased.
Whenattachingorremovingdoorsbecarefulthatyourhandorngerdoesnot
get caught in anything.

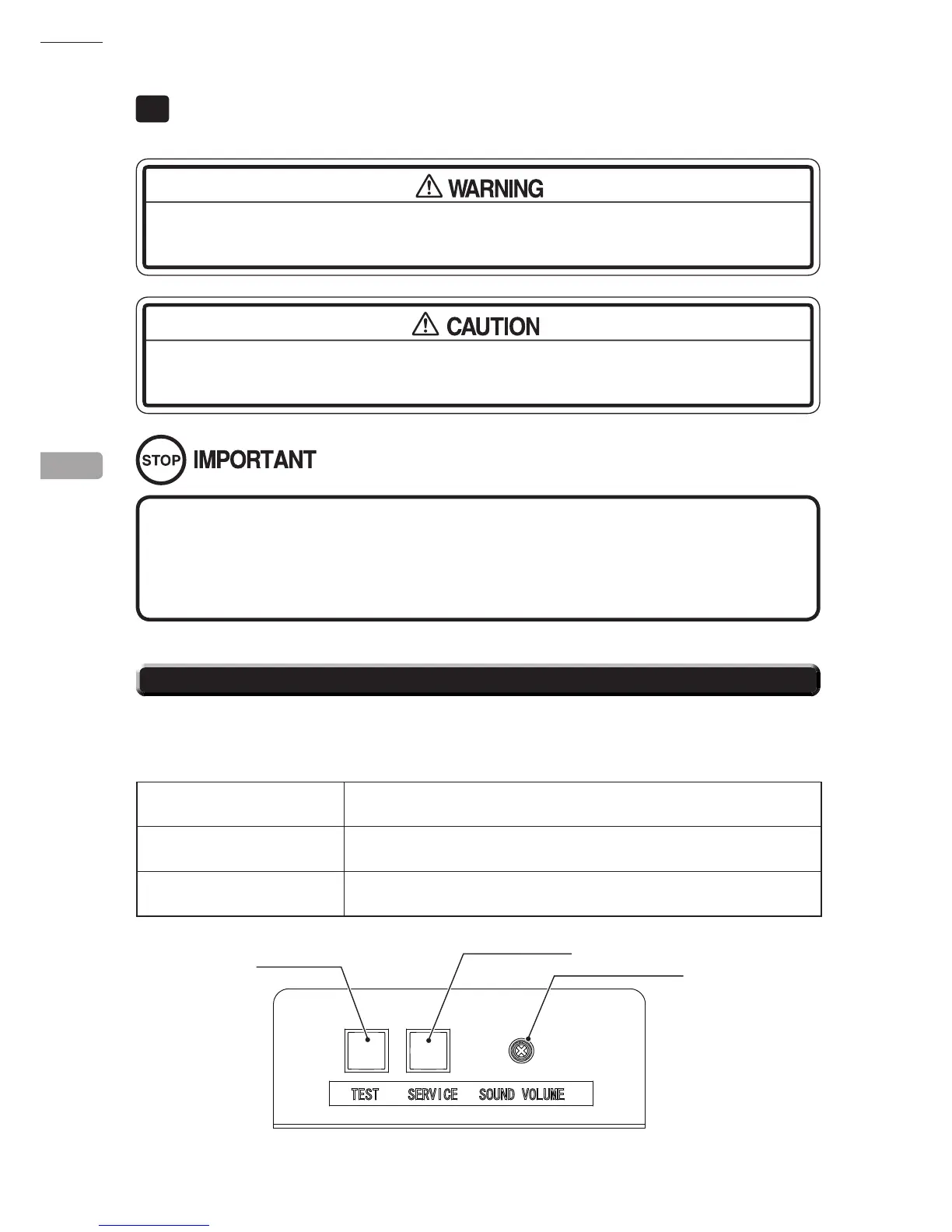

Open the coin chute door, and the switch unit shown will appear.
The function of each button is as listed below.
9-1 SWITCHUNIT
TEST Button
(TEST)
Establishes TEST MODE.
Becomes the button to conrm selections in TEST MODE.
SERVICE Button
(SERVICE)
Makes it possible to enter credits for service without increasing the coin meter.
Becomes the button to select items in TEST MODE.
SOUND VOLUME Knob
(SOUND VOLUME)
Adjust the volume of the front cabinet left and right speakers.
9
TEST BUTTON
SERVICE BUTTON
SOUND VOLUME Knob
