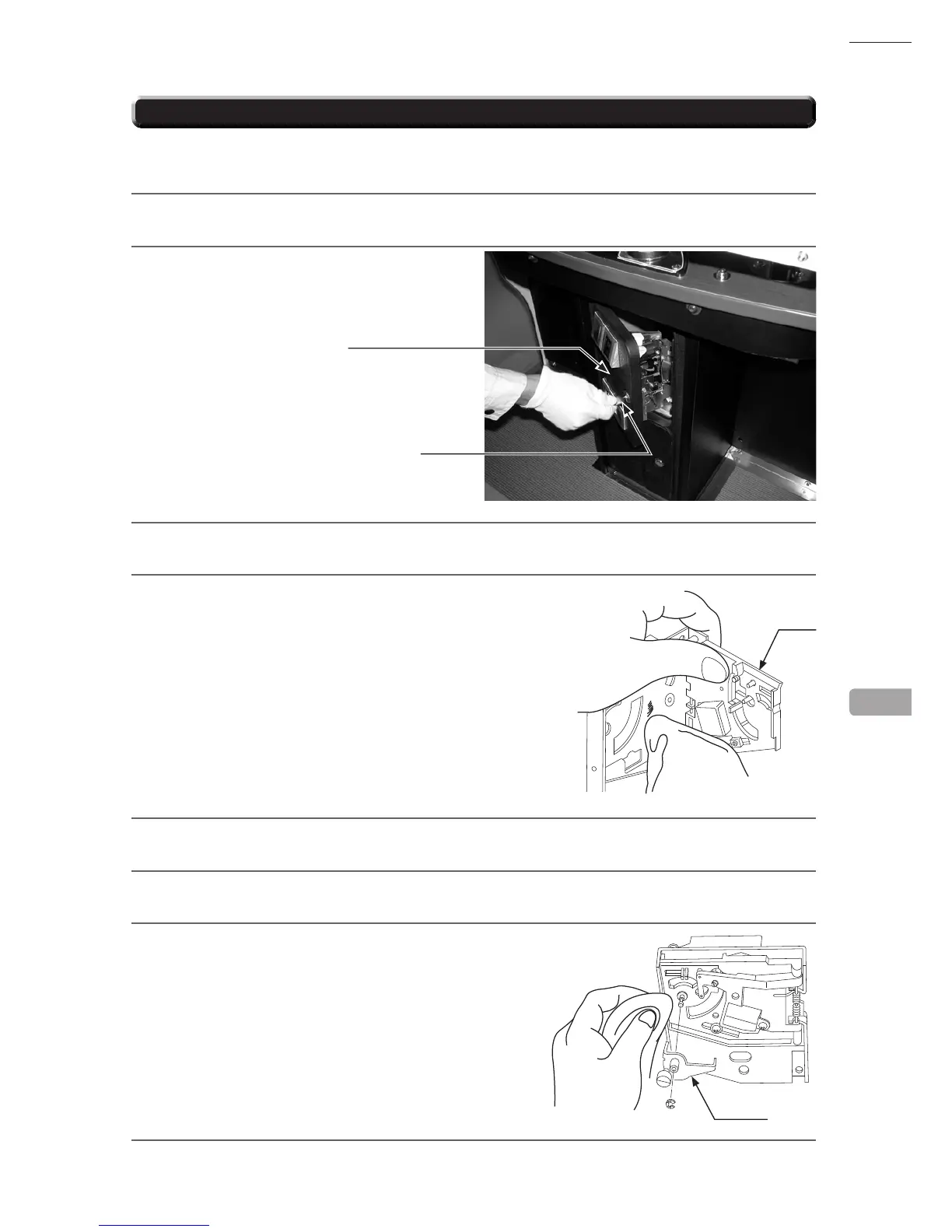

COIN SELECTOR
14-2 CLEANING THE COIN SELECTOR
The coin selector should be cleaned once every 3 months. When cleaning, follow the procedure below:
1
Turn off the power switch.
2
Unlock the coin chute door with the master
key and open it.
3
Remove the coin selector from the coin chute door.
4
Open the gate and dust off by using a soft brush.
5
Remove and clean smears by using a soft cloth dipped in water or diluted chemical detergent and then
squeezed dry.
6
Remove the cradle. When removing the retaining ring (E ring), be very careful so as not to bend the rotary
shaft.
7
Remove stain from the rotary shaft and shaft receiving
portions by wiping off with a soft cloth, etc.
8
After wiping off dirt, wipe away moisture with a dry cloth and make sure that the coin selector is completely dry.
14
GATE
CRADLE
COIN CHUTE DOOR
Unlock
