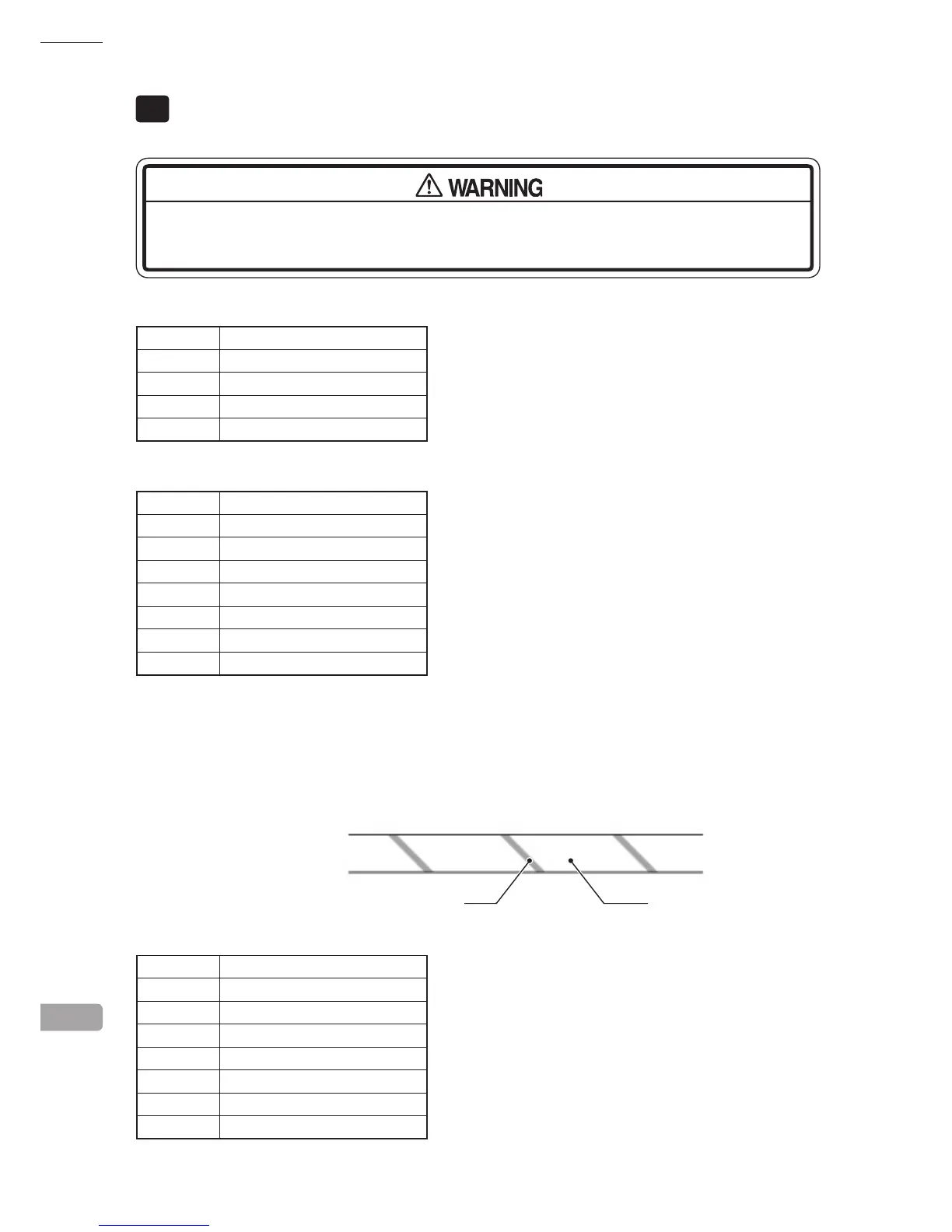

WIRE COLOR CODE TABLE
22
WIRE COLOR CODE TABLE
TheDCpowerwirecolorforthisproductisdifferentfrompreviousSEGAtitles.
Workingfromthepreviouswirecolorswillcreateahighriskofre.
The color codes for the wires used in the diagrams in the following chapter are as follows.
A PINK
B SKY BLUE
C BROWN
D PURPLE
E LIGHT GREEN
Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric characters.
1 RED
2 BLUE
3 YELLOW
4 GREEN
5 WHITE
7 ORANGE
8 BLACK
9 GRAY
If the right-hand side numeral of the code is 0, then the wire will be of a single color shown by the left-hand side
numeral (see the above).
If the right-hand side numeral is not 0, that particular wire has a spiral color code. The left-hand side character shows
the base color and the right-hand side one, the spiral color.
<Example> 51………WHITE/RED
The character following the wire color code indicates the size of the wire.
U: AWG16
K: AWG18
L: AWG20
None: AWG22
T: AWG24
△
: AWG26 UL1007
☆
: AWG18 UL1672
★
: AWG20 UL1672
23
WHITERED
