67
CONTROLLER
6

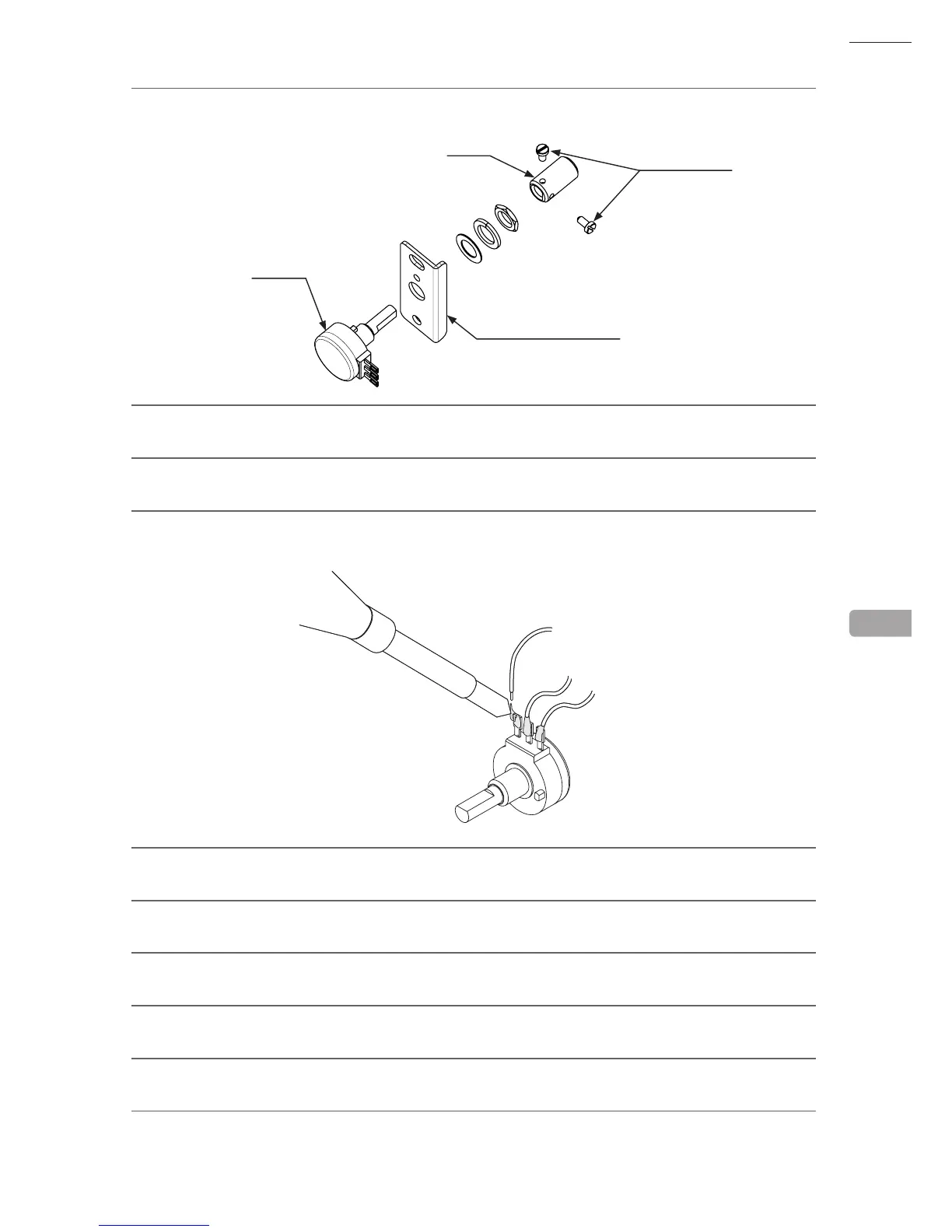

Remove the 2 setscrews and pull the gear off the volume shaft.
7
Remove the nut holding the side volume bracket in place and take the volume off the side volume bracket.
8
The wires connected to the volume will proceed to be used. Use a tool such as nippers or a cutter to
remove the old heat-shrinkable tubes from the places where the wires are connected.
9
Use a soldering iron to melt the solder and separate the wires from the old volume. Be very careful when
using the soldering iron.
10
If the exposed conductive wire at the end is less than 5 mm, use a tool such as a wire stripper or cutter to
cut the coating back.
11
Pass the wires through the 3 heat-shrinkable tubes.
12
Solder the wires to the terminals on the new volume. Check the wiring diagram and be careful not to mix
up the wires.
13
Cover the soldered parts with the heat-shrinkable tubes and apply heat with an industrial dryer until the
heat-shrinkable tubes tightly cover the soldered parts.
14
Refer to Steps 2 to 7 and work in reverse order to attach the side volume, cover lid, and controller cover.
15
Refer to 13-2-1 “SIDE VOLUME ADJUSTMENT” and adjust the side volume.
13
SET SCREW (2)
M3 x 6
GEAR
VOLUME
SIDE VOLUME BRACKET
To Next Page
