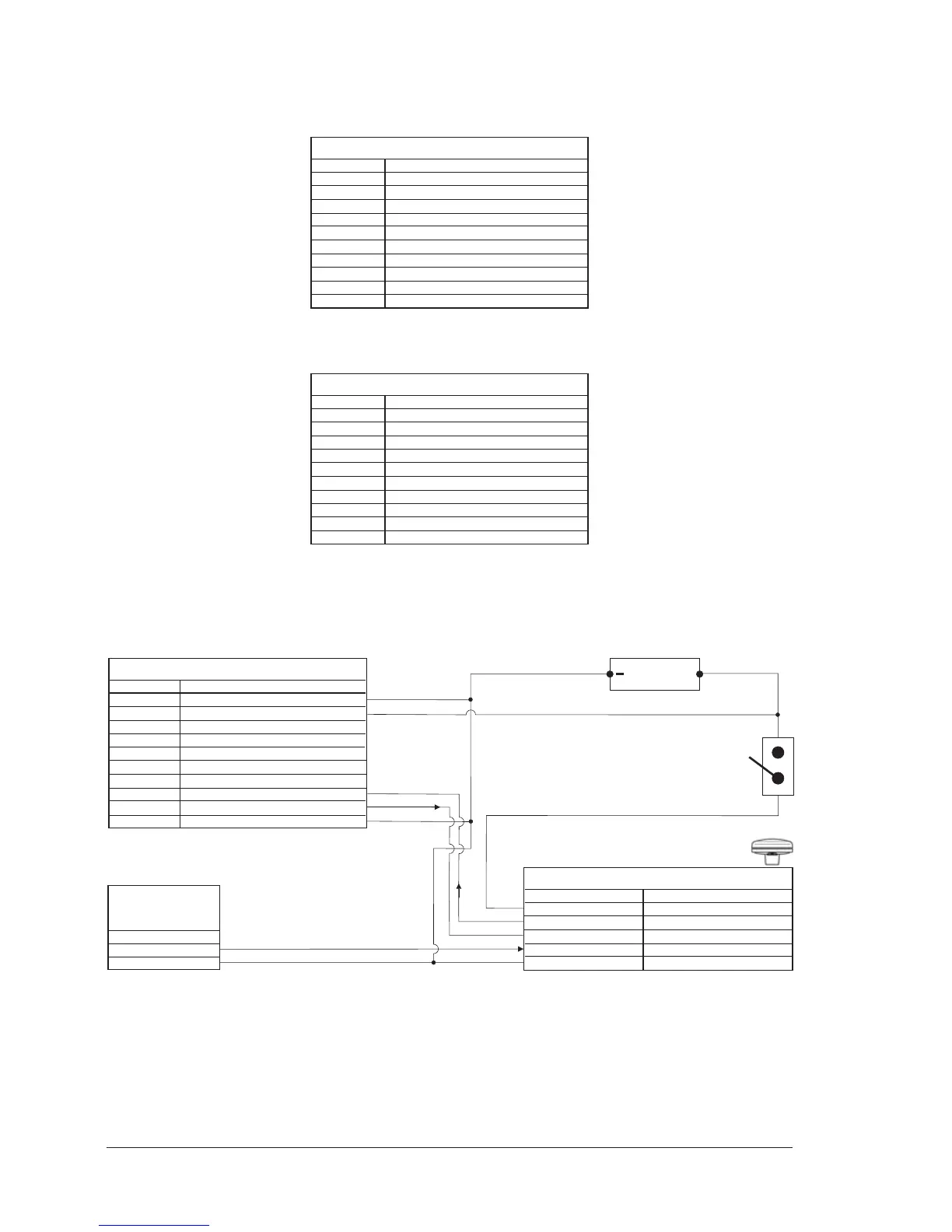

EXTERNAL WIRING
External Wiring T-50.05 (External GPS Receiver)
QUICK DISCONNECT BRACKET CABLE
DESCRIPTION
WIRE COLOR
BLACK
RED
WHITE
GREEN
YELLOW
BROWN
GRAY
ORANGE
PINK
BLUE
PWR-/GND/COMMON
POWER+ 10-35Vdc
INPUT 1+
COMMON
OUTPUT 1+
INPUT 2+
OUTPUT 2+
INPUT 3+
OUTPUT 3+
COMMON
External Wiring T-55.05 (Internal GPS Receiver)
QUICK DISCONNECT BRACKET CABLE
DESCRIPTION
WIRE COLOR
BLACK
RED
WHITE
GREEN
YELLOW
BROWN
GRAY
ORANGE
PINK
BLUE
PWR-/GND/COMMON
POWER+ 10-35Vdc
INPUT 1+
COMMON
OUTPUT 1+
INPUT 2+
OUTPUT 2+
RTCM 104 INPUT
OUTPUT 3+
COMMON
TYPICAL CONNECTIONS
GPS Connection T-50.05 (External GPS Receiver)
QUICK DISCONNECT BRACKET CABLE
DESCRIPTION
WIRE COLOR
BLACK
RED
WHITE
GREEN
YELLOW
BROWN
GRAY
ORANGE
PINK
BLUE
PWR-/GND/COMMON
POWER +10-35Vdc
INPUT 1+
COMMON
OUTPUT 1+
INPUT 2+
OUTPUT 2+
INPUT 3+
OUTPUT 3+
COMMON
POWER
SUPPLY
+
SMART GPS
SENSOR
GPS POWER
SWITCH
DIFFERENTIAL
BEACON
RECEIVER
RTCM 104 OUTPUT+
SIGNAL RETURN
FUNCTION
SMART GPS SENSOR CABLE
RED
BROWN
GREEN
WHITE
BLACK/YELLOW/SHIELD
POWER +10-35 Vdc
GPS NMEA0183 OUTPUT+
GPS NMEA0183 INPUT+
RTCM 104 INPUT+
GND/SIGNAL RETURN
WIRE COLOR
FUNCTION
GPS Connections on Port 3
