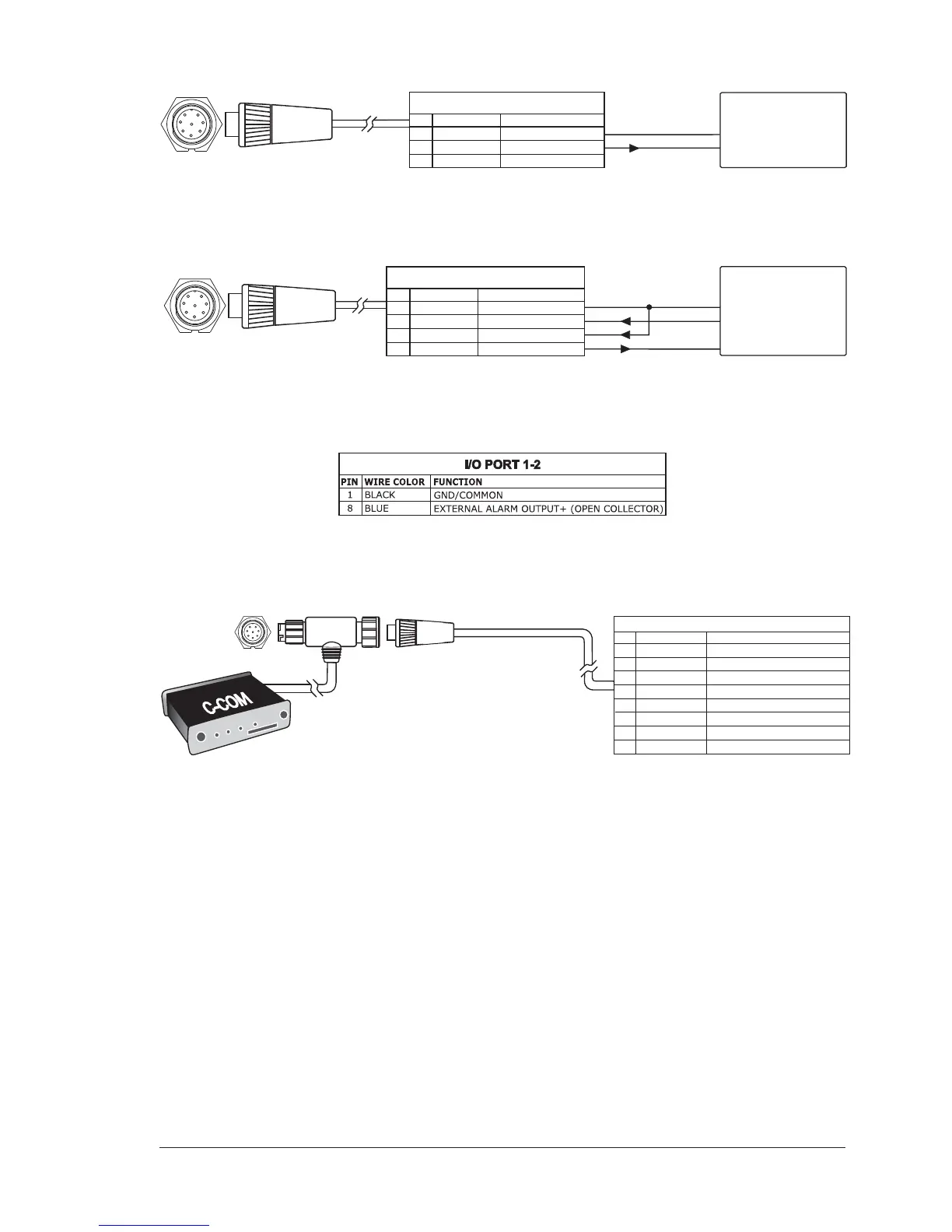

Autopilot Connection
COMMON
RX+
AUTOPILOT
I/O PORT 1-2
1
I/O PORT 1-2 CABLE
I/O PORT 1-2 CABLE
PWR-/GND/COMMON
OUTPUT 2+
INPUT 2+
BLACK
GRAY
BROWN
PIN
1
5
7
WIRE COLOR
FUNCTION
Autopilot on Port 2
External NMEA Connection
+
-
COMMON
TX+
RX+
I/O PORTA 1-2
1
EXTERNAL
NMEA
DEVICE
PWR-/GND/COMMON
INPUT 1+
INPUT 1-
OUTPUT 1+
BLACK
WHITE
GREEN
YELLOW
PIN
1
3
4
6
WIRE COLOR
FUNCTION
I/O PORT 1-2 CABLE
I/O PORT 1-2 CABLE
External NMEA on Port 1
External Alarm Connection
External Alarm Connection
C-COM Connection
POWER & I/O
1
2
3
4
5
6
7
8
PIN CABLE COLOR FUNCTION
BLACK
RED
WHITE
GREEN
GRAY
YELLOW
BROWN
BLUE
PWR-/GND/COMMON
PWR+ (12-35 Vdc)
Used by C-COM
Used by C-COM
OUTPUT 2+
Used by C-COM
INPUT 2+
OUTPUT EXTERNAL ALARM+
POWER & I/O CONNECTOR/CABLE
C-COM Connection
