Overview of the components
ADN PS power supply
Overview of the status LEDs
CU/PS
PS
PORT I
12
PORT II
12
DATA
100 - 240V
50/60Hz 385W
PORT I & PORT II: max. 5.25A sum
6 7 8 9 0
A
C
E
D
B
21 134
5
15

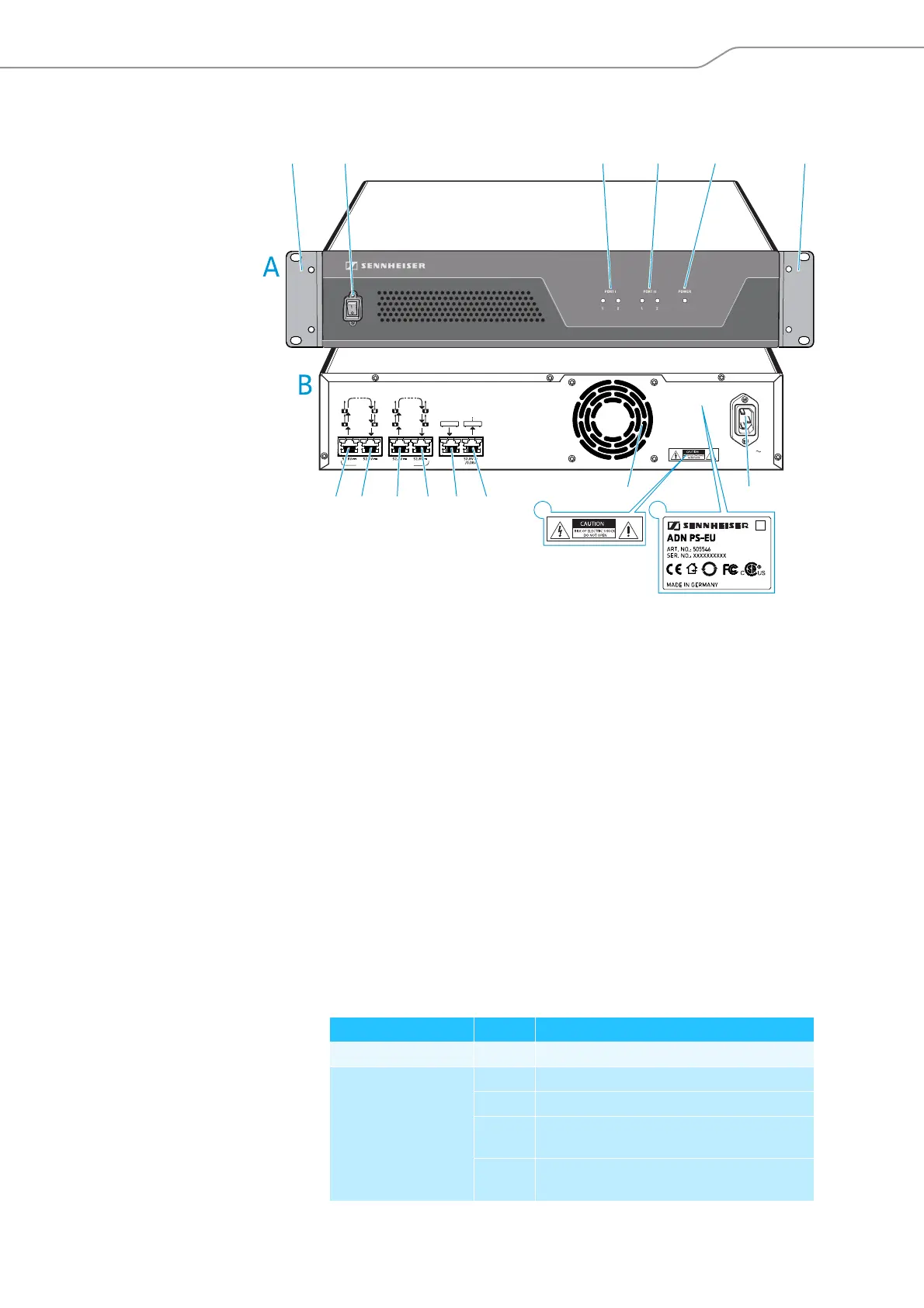

ADN PS
A Front view
Rack mount “ears”
On/off switch
PORT I status LED for
outputs 1 and 2
PORT II status LED for
outputs 1 and 2
POWER status LED
B Rear view
PORT I socket – output 1 (RJ 45) for connec-
tion of conference units
PORT I socket – output 2 (RJ 45) for connec-
tion of conference units
PORT II socket – output 1 (RJ 45) for
connection of conference units
PORT II socket – output 2 (RJ 45) for
connection of conference units
DATA CU/PS input socket (RJ 45) for
connection of ADN CU1 central unit
or ADN PS power supply
DATA PS output socket (RJ 45) for connec-
tion of additional ADN PS
Fans
Mains socket
Hazard warnings
Type plate
1
2
3
4
5
6
7
8
9
<
A
B
C
D
E
Status LED Color Meaning
POWER green ADN PS is switched on
PORT I /Port II
output 1/2
– Not used, switched off
orange Conference units are connected in strings
green Conference units are connected in redundant
ring topology via outputs 1 and 2
flashing
orange
Error in a cable string;
output is switched off
