Servicing the iCon APX Meter Replacement – Basic Components
Replacement of the Meter Cover
It is strongly recommended that all replacement procedures for component-level repairs be done
in the shop. Removal of the Meter Cover in the field may allow debris or other contaminants into
the meter, damaging the meter or causing further damage to a malfunctioning meter.
Removal of the Meter Cover in the field may allow debris or other contaminants into the
meter, further damaging the meter or causing the meter to malfunction.
Removing the Meter Cover
Hazardous voltages are present when power is applied to the meter. Do not remove the
Meter Cover or attempt to disassemble the metering equipment while power is applied.
Failure to observe this warning exposes personnel to the risk of death or serious injury and
risks damage to the equipment.
1. If the APX meter is in a test socket, ensure the power has been removed from the socket.
2. Remove the meter from the test socket.
3. Remove the T-Bar Seal from the meter.
4. Grasp the Meter Cover, and turn it counter-clockwise until it reaches a positive stop.

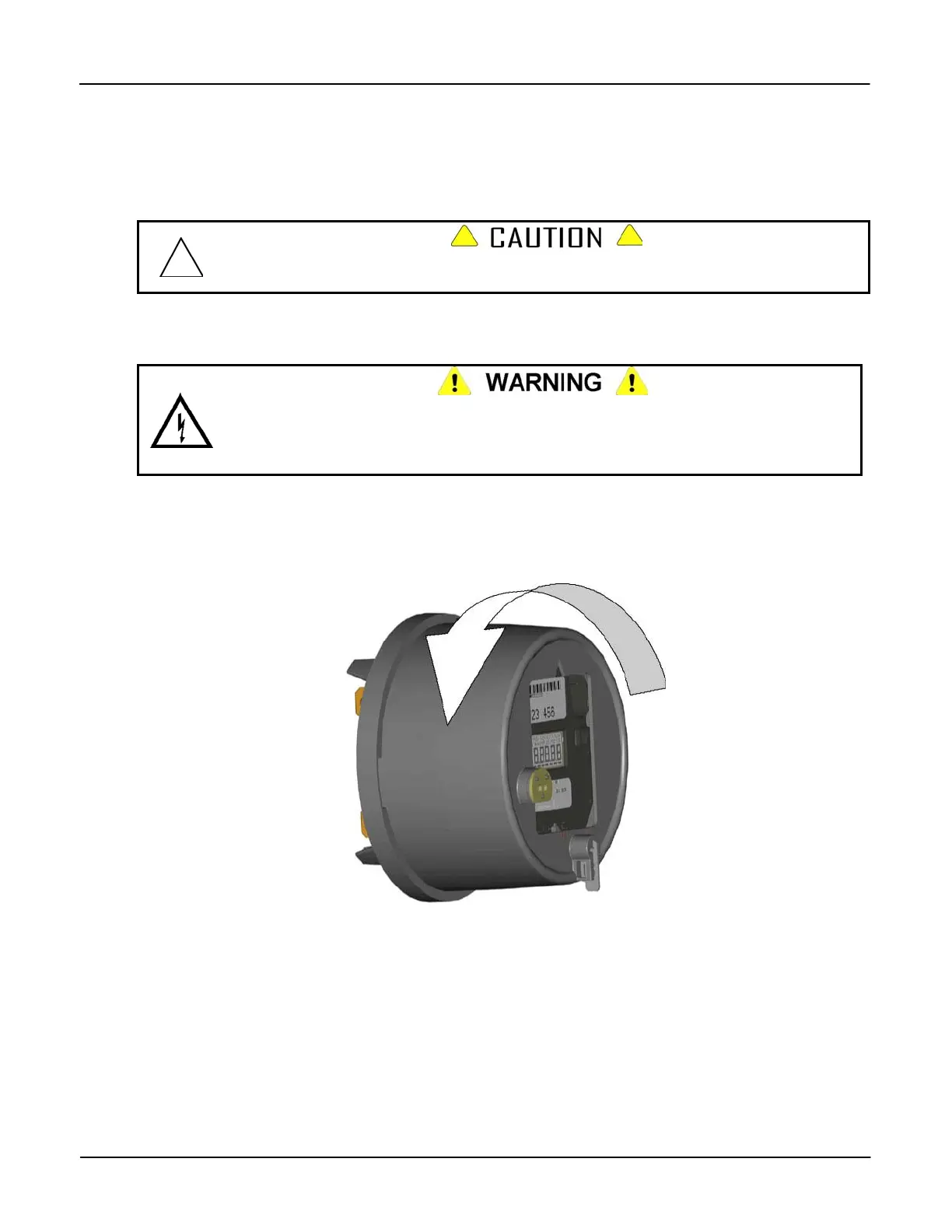

Figure 4-1: Removing the Meter Cover
5. Remove the Meter Cover from the Meter Base Assembly.
Version 1.0 Servicing the iCon APX Meter 4-5
