Sensus iCon APX - APPENDIX A Socket Wiring; Form 8 S; Form 9 S

Socket Wiring Form 8S
Version 1.0 Socket Wiring A-1
Appendix A
This appendix provides meter and ANSI compliant socket specifications.
Form 8S
The standard connections for the iCon™ APX Advanced Functionality Meter are made with
blades that pass through the Meter Base into ANSI compliant sockets.

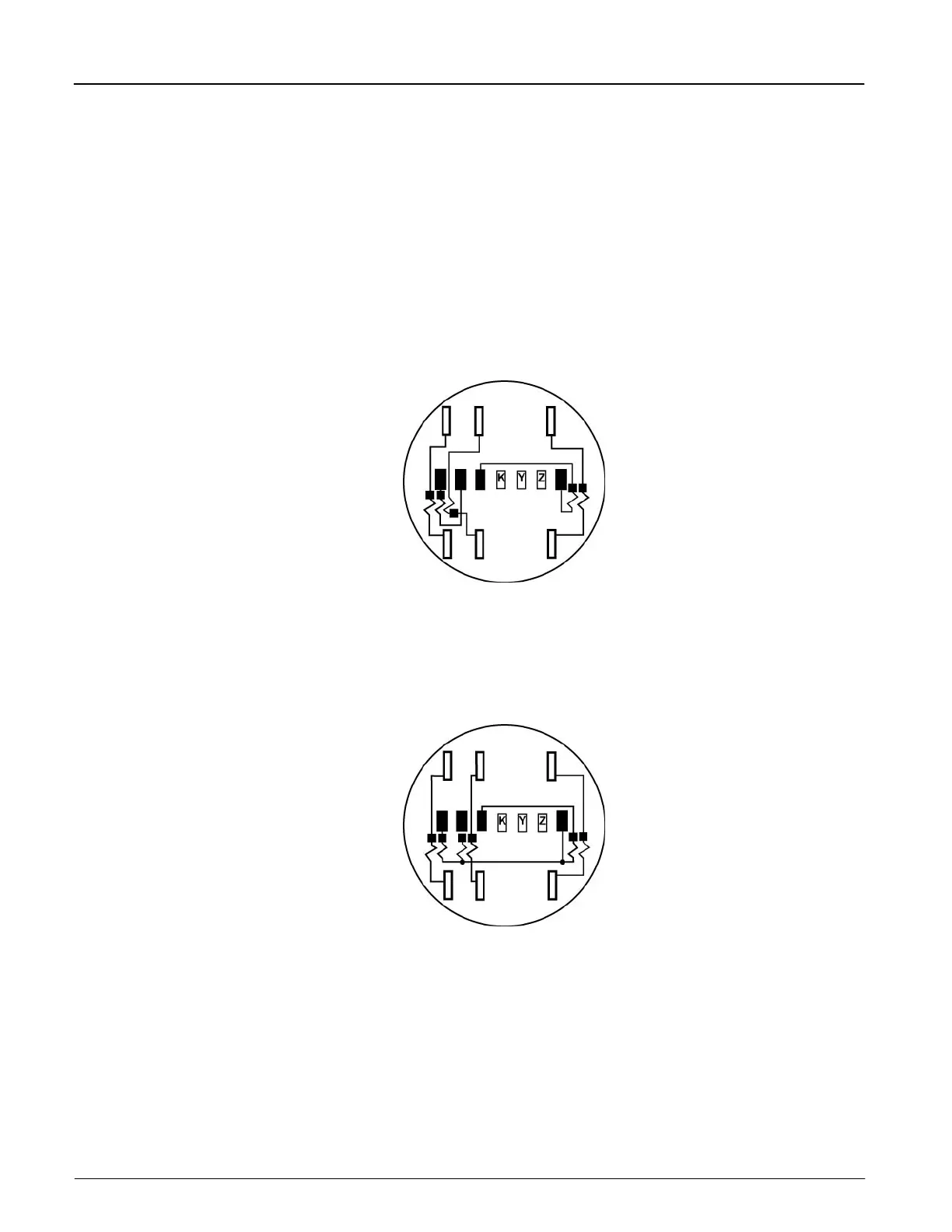

Figure A-1 shows the socket wiring for a two-element, transformer-rated, three-phase, four-wire
socket for Delta service connections.
Figure A-1: Socket Wiring - Form 8S
Form 9S
Figure A-2 shows the socket wiring for a three-element, transformer-rated, three-phase, four-wire
socket for Wye service connections.
Figure A-2: Socket Wiring - Form 9S
