Form 14S Socket Wiring
A-2 Socket Wiring TM-iX0A-0805
Form 14S

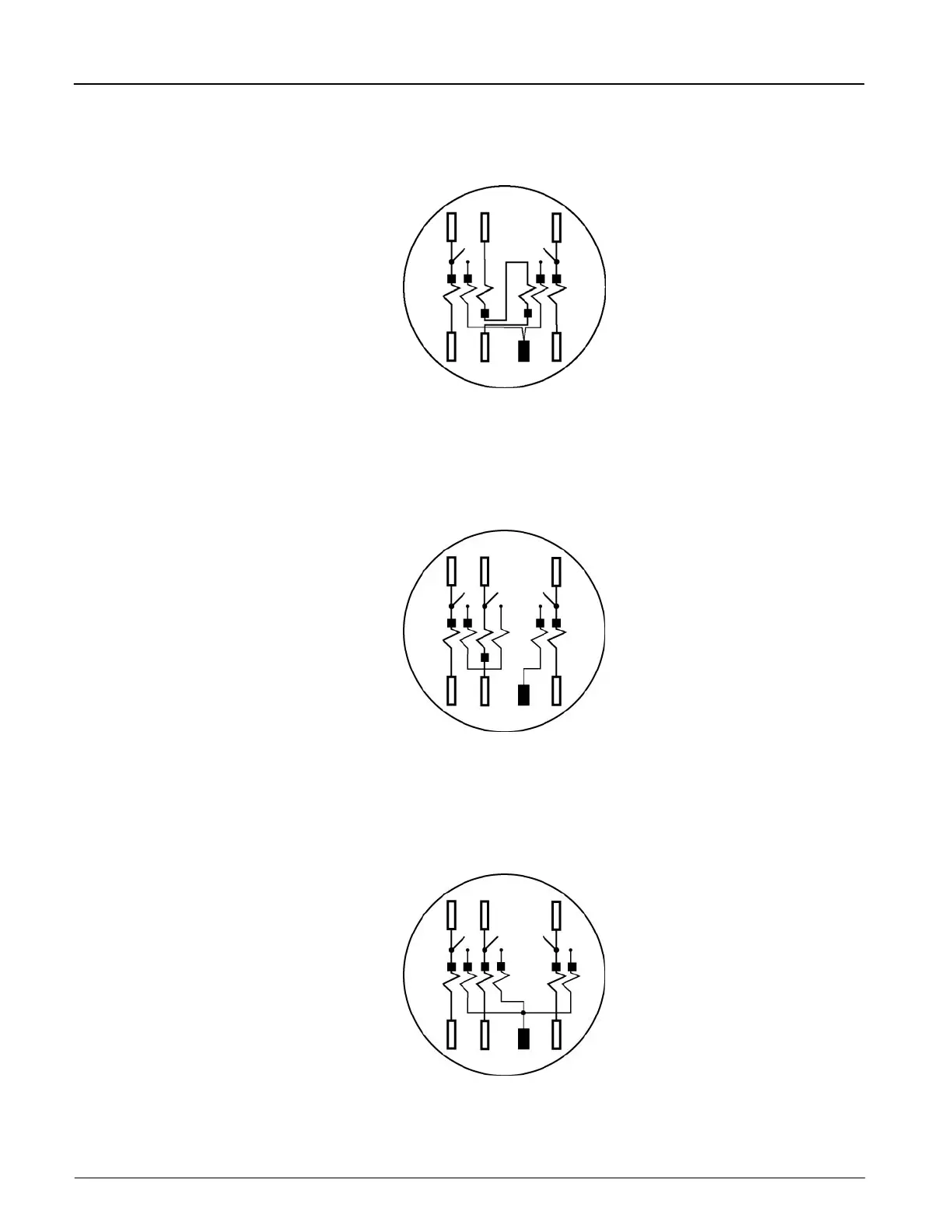

Figure A-3 shows the socket wiring for a two-element, self-contained, three-phase, four-wire
socket for Wye service connections.
Figure A-3: Socket Wiring - Form 14S
Form 15S
Figure A-4 shows the socket wiring for a two-element, self-contained, three-phase, four-wire
socket for Delta service connections.
Figure A-4: Socket Wiring - Form 15S
Form 16S
Figure A-5 shows the socket wiring for a three-element, self-contained, three-phase, four-wire
socket for Wye service connections.
Figure A-5: Socket Wiring - Form 16S
