Meter Overview System Architecture
Hardware
The basic components of the meter are shown in Figure 2-2.

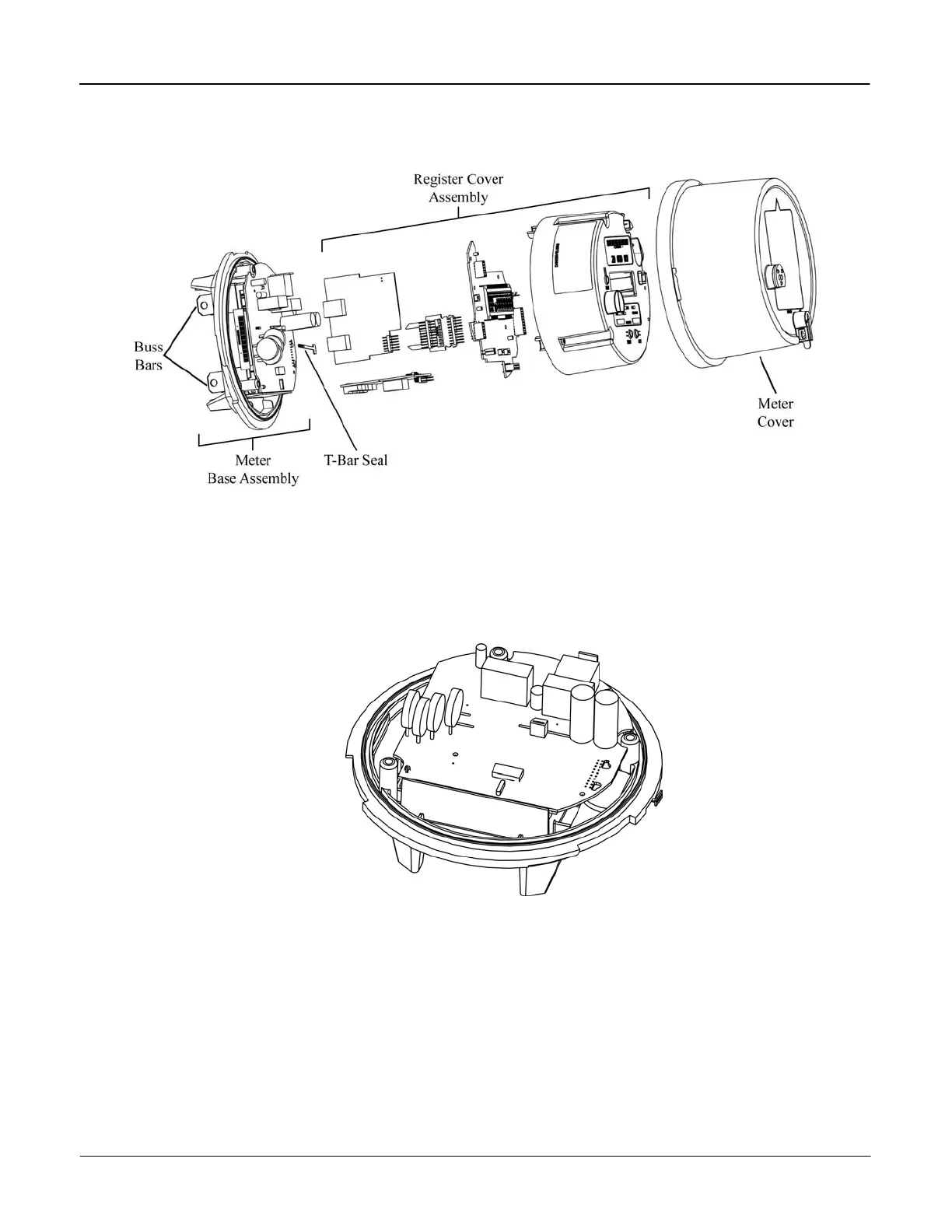

Figure 2-2: iCon APX Meter Components
Meter Base Assembly
The Meter Base Assembly consists of the Meter Base, the Sensor Board, and related hardware.
Figure 2-4 shows the Sensor Board in the Meter Base.
There are no field-serviceable parts in the Meter Base Assembly.
Figure 2-3: Meter Base Assembly
Meter Base
The Meter Base is molded from highly durable thermoplastics. It provides a stable platform for
the Sensor Board. In addition to the components described in this section, it contains the hangar
for mounting the meter, and the T-Bar for meter security.
