Doc. 177/5250x
Rev A
7-2
Display Parameters
The display has a number of user configurable settings which can be used to change the
regional settings, time, date, units format, etc.
Clock Settings
The display has a built in clock which is used to time stamp incoming fault events, and can
be displayed on the screen.
To affect the look of the date and time when displayed on the main screen, refer to the
“Time and Date item” setup in Section 16.
In addition the following settings are available, which affect the date and time globally on
the display:
Clock Format; 12hr or 24hr format.
Date Format; DDMMYY, MMDDYY, YYMMDD.
Actual time and date.
These settings are available on the Configuration screen, under “Display-Time and Date”

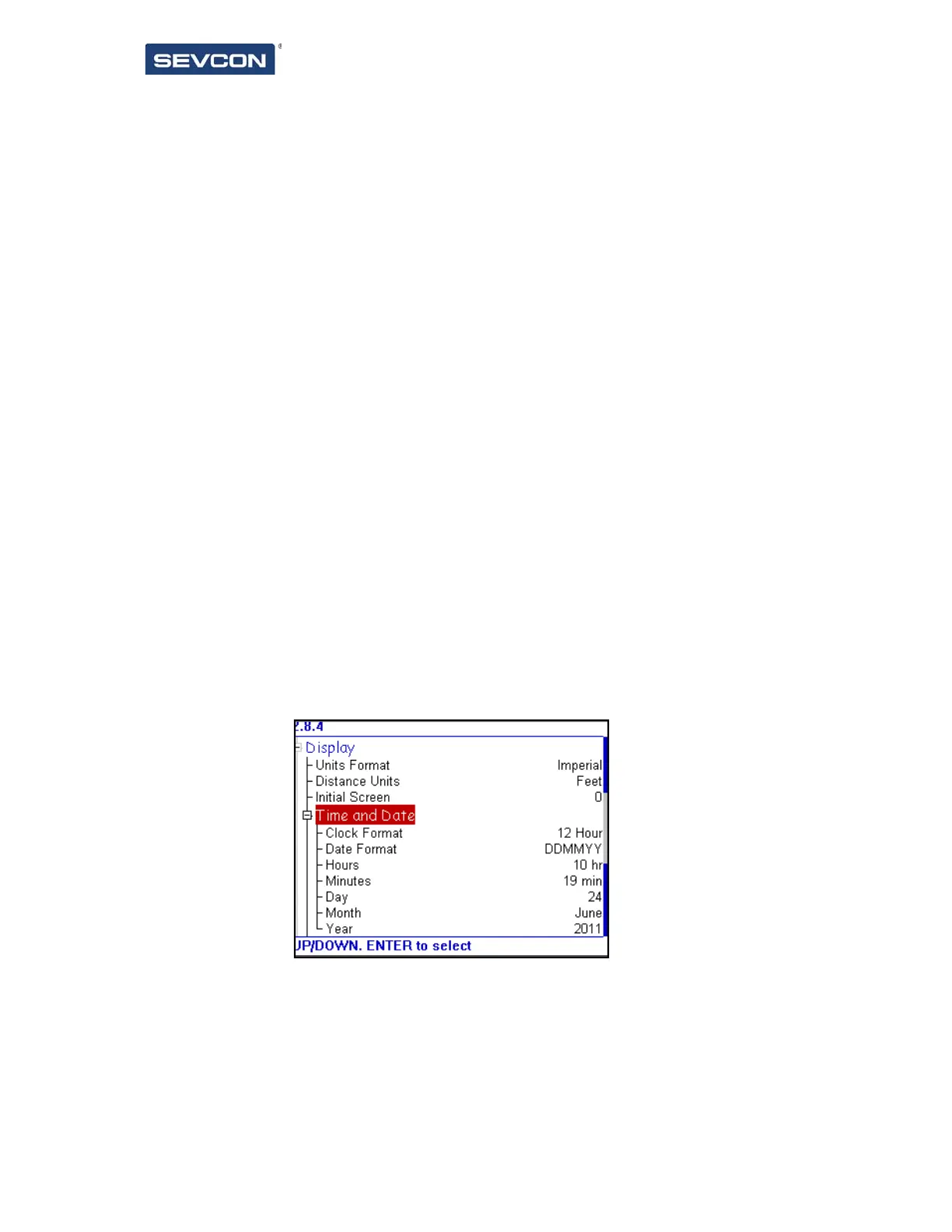

Figure 16 Time and Date Settings
