Sevcon MillipaK User Manual

Installation Mounting
_____________________________________________________________________________________
MillipaK PUMP Controller Manual Page 7 07/11/05
Installation
The small footprint of the MillipaK controller gives maximum flexibility to the user for mounting
options. The following section gives details of certain criteria that should be considered when
situating the controller on a vehicle.
Mounting
The MillipaK and MillipaK HP units provide 4 x M6 clearance holes for mounting. The
controllers should be mounted onto a metal base plate, as large as possible to provide heat-
sinking. The surface finish should be flat, clean and burr free and thermal compound should be
applied to the controller base before fitting.

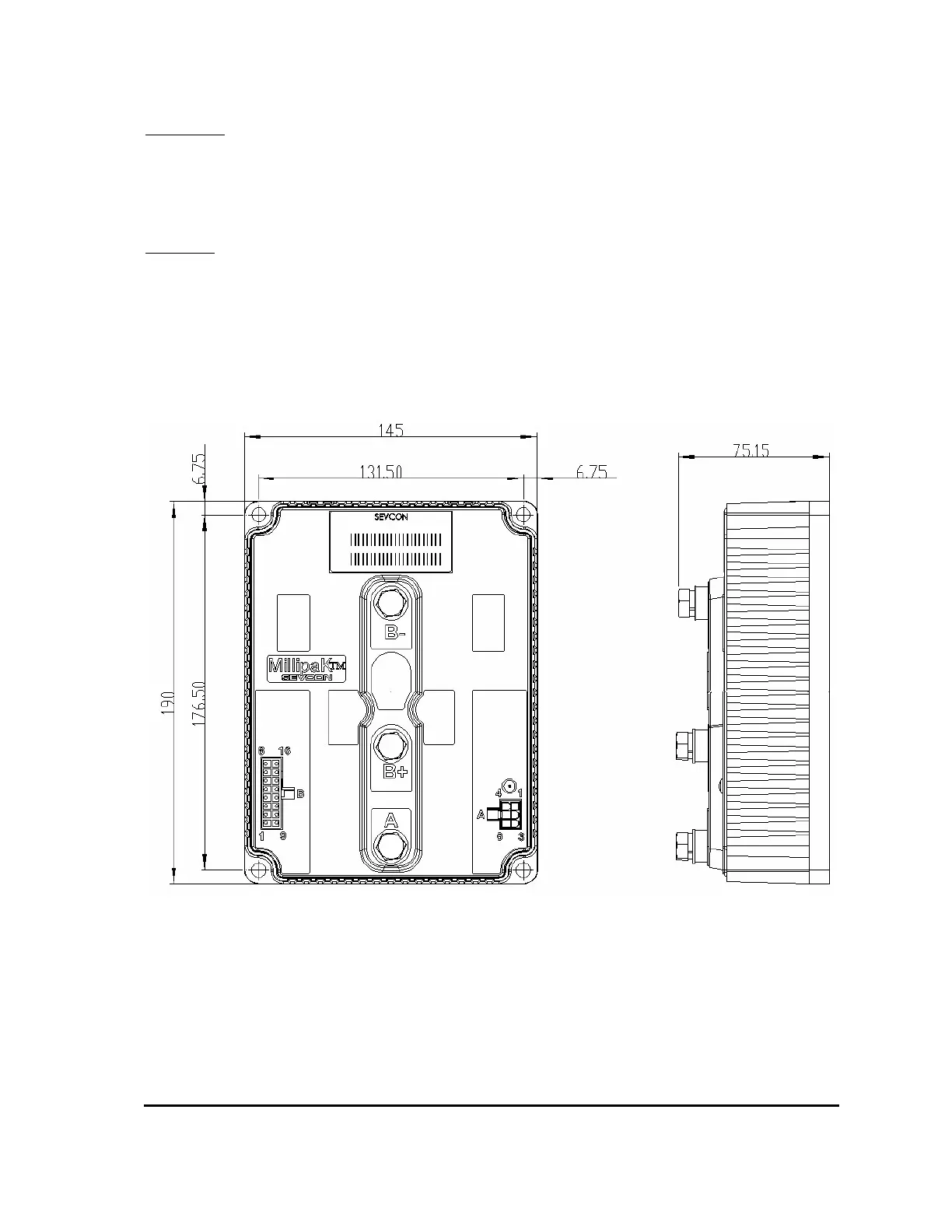

MillipaK HP Controller Dimensions
Maximum terminal torque: M8 terminals – 10NM
M6 terminals – 7NM
