SEW-Eurodrive MOVIMOT flexible MMF1 C/DBC Series User Manual

5
Electrical installation
Assignment of the optional plug connectors
Operating Instructions – MOVIMOT
®
flexible
102
Connection of cables with open end
HELUKABEL

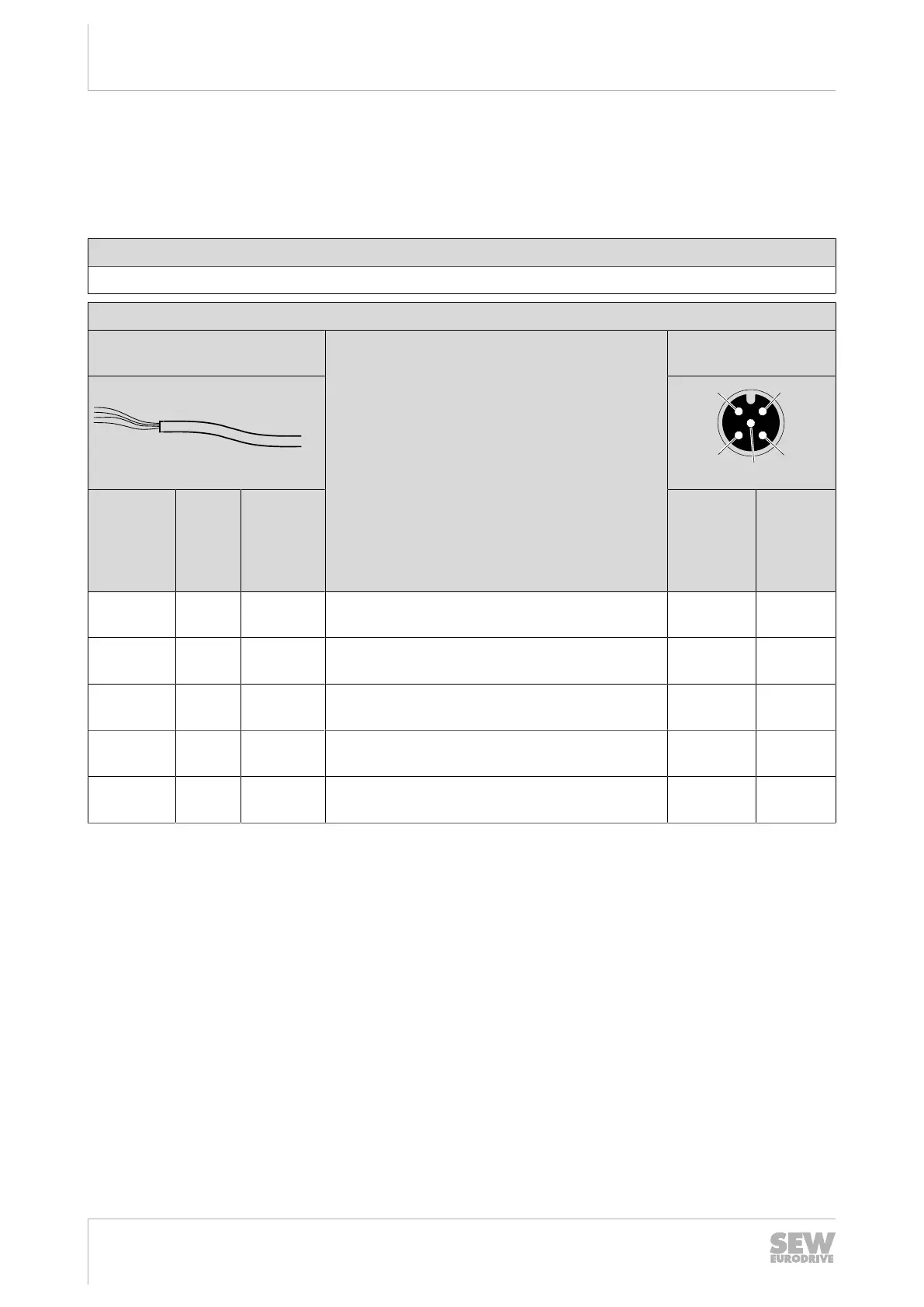

The following table shows the conductor assignment of cables with the following part
numbers:
Part numbers
28117808, 28110986
Assembly
Open cable end Description Prefabricated plug
connectors
1
4
3
2
5
Core
color/
Core
cross sec-
tion
Identi-
fication
Assembly Signal Contact
1)
–
Not pre-
fabricated
DC24V auxiliary output 24V_OUT 1
White
0.75mm
2
–
Not pre-
fabricated
F_STO_P2 connection F_STO_P2 2
1)
–
Not pre-
fabricated
0V24 reference potential
for DC24V auxiliary output
0V24_OUT 3
Brown
0.75mm
2
–
Not pre-
fabricated
F_STO_P1 connection F_STO_P1 4
Black
0.75mm
2
–
Not pre-
fabricated
F_STO_M connection F_STO_M 5
1) Do not connect these cores in the plug connector.
29129451/EN – 12/2019
