SEW-Eurodrive MOVIMOT flexible MMF1 C/DBC Series User Manual

5
Electrical installation
Plug connector assignment at the electronics cover
Operating Instructions – MOVIMOT
®
flexible
123

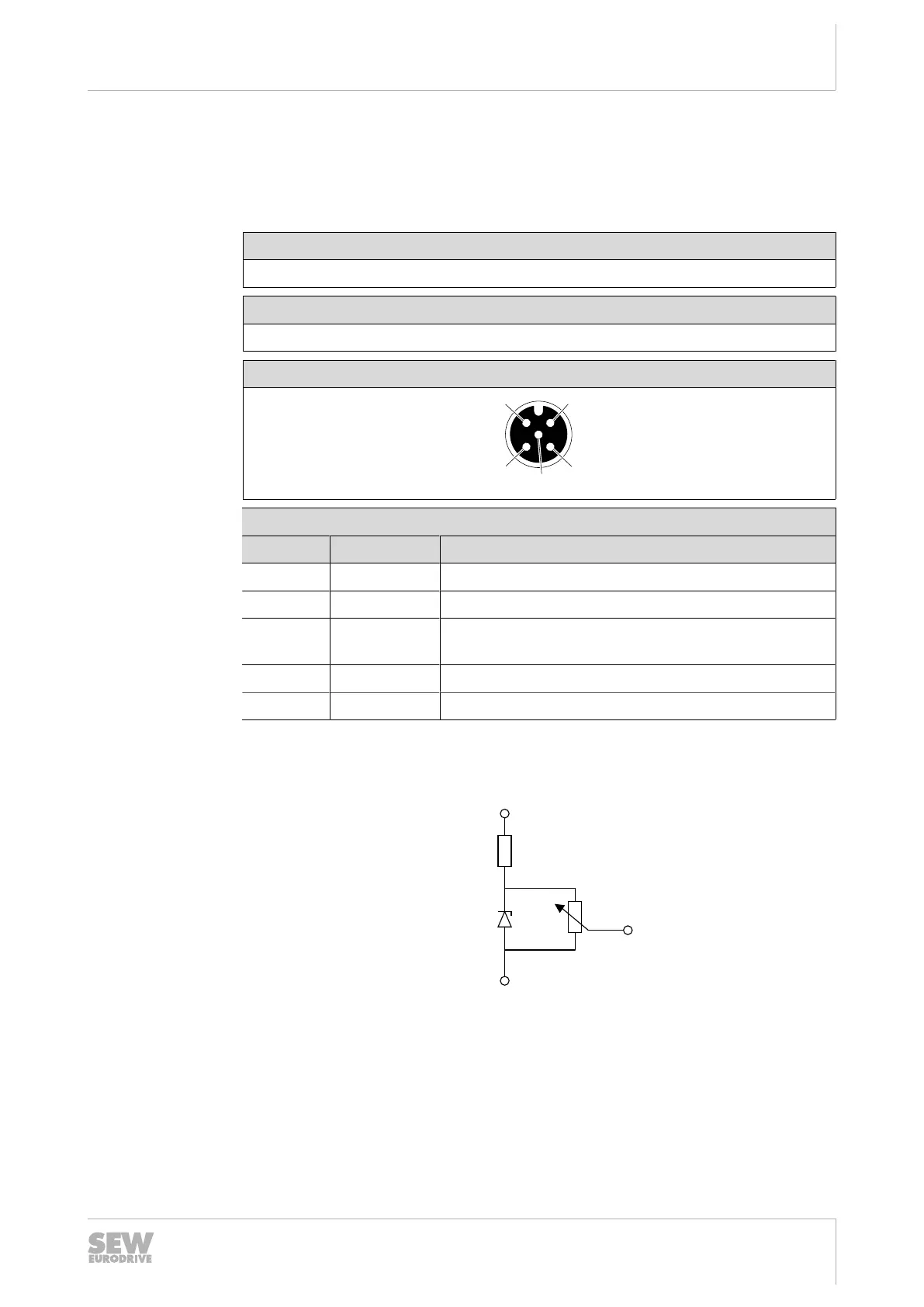

5.12 Plug connector assignment at the electronics cover
5.12.1 X5231: Analog input
The following table shows information about this connection:
Function
Analog input
Connection type
M12, 5‑pin, female, A‑coded, color: black
Connection diagram
1
4
3
2
5
Assignment
Contact Signal Description
1 24V_OUT DC24V output
2 AIV1 Analog voltage input AI1
3 0V24 0V24 reference potential / Reference potential of the
analog input
4 AIC1 Analog current input AI1
5 FE Functional earth
SEW‑EURODRIVE recommends using the following connection type for connecting a
potentiometer to the voltage input AIV1:
X5231.1
24V_OUT
2.7 kΩ
10 kΩ
X5231.3
0V24 V
X5231.2
AIV1
Zener diode
11V
30249539851
29129451/EN – 12/2019
