5.9 EMC cable glands
5.9.1 Cable shielding
For shielded cables, it is best to use EMC cable glands to connect the shield. EMC
cable glands are available as option.
25216680843
5.9.2 Assembly of EMC cable glands

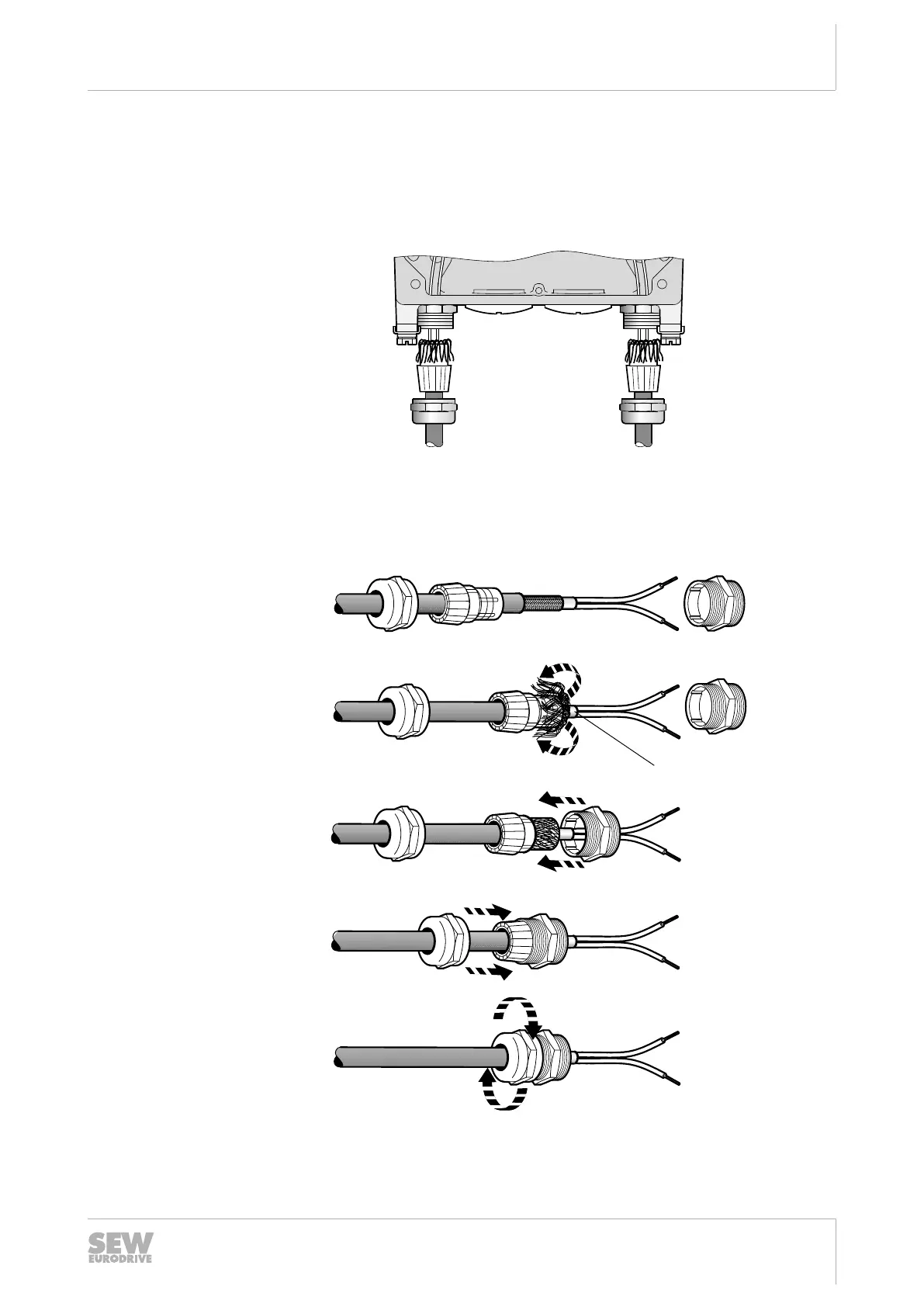

Assemble the EMC cable glands supplied by SEW‑EURODRIVE according to the fol-
lowing figure:
[1]
18014401170670731
[1] Cut off insulation foil and fold it back.
