SEW-Eurodrive MOVIMOT flexible MMF1 C/DBC Series - Device dimension drawings

11
Technical data and dimension sheets
Device dimension drawings
Operating Instructions – MOVIMOT
®
flexible
332
11.11 Device dimension drawings

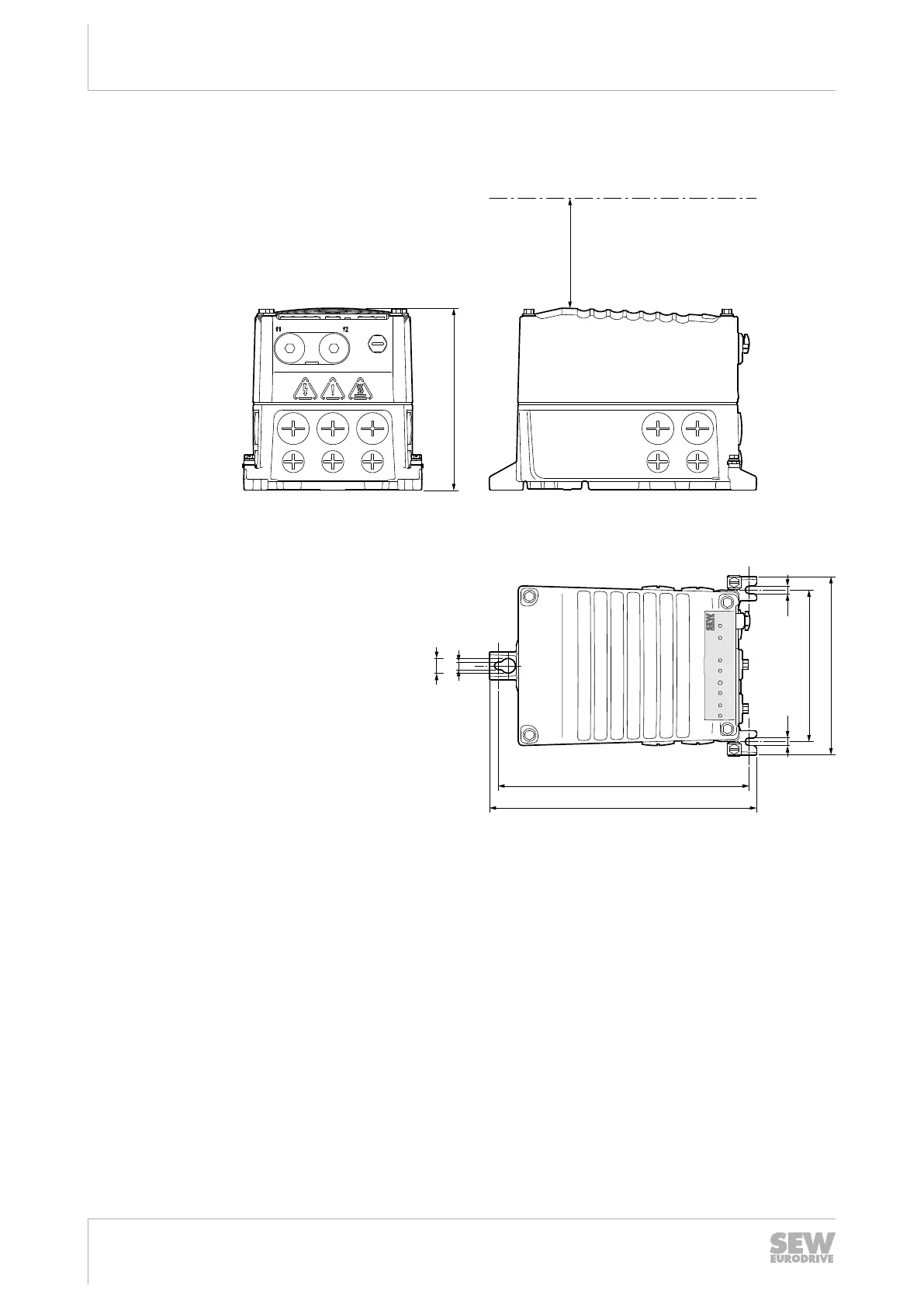

11.11.1 Design MMF1.
165
100
138 162
228
243
Ø7
Ø13.5
Ø7Ø7
30564611595
