Mechanical installation
Mounting the unit
Operating Instructions – MOVIMOT
®
flexible
36
4.6 Mounting the unit
4.6.1 Design MMF1.

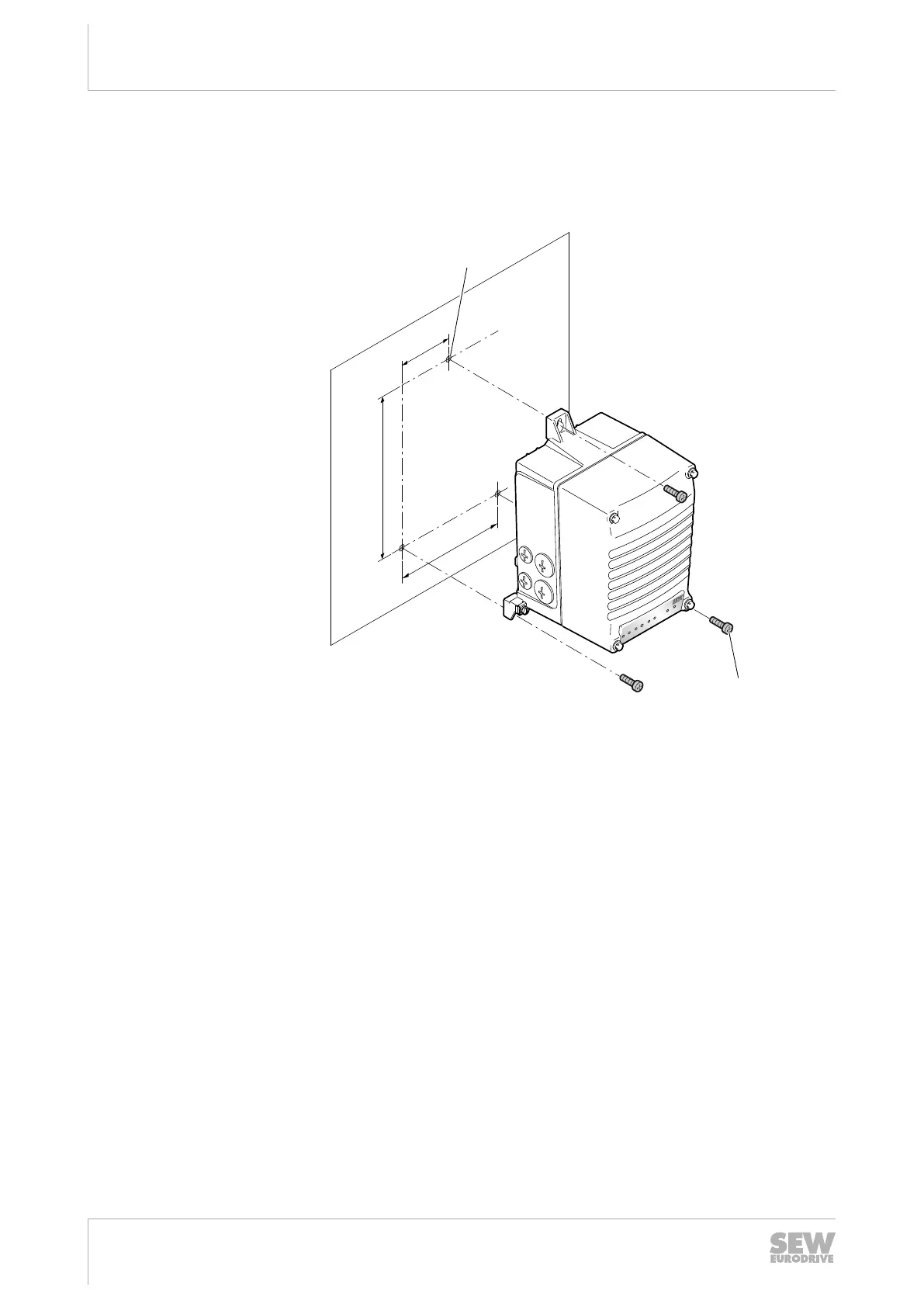

The following figure shows the mounting dimensions for the device:
69
1
38
228
M6
M6
