5
Electrical installation
Assignment of the optional plug connectors
Operating Instructions – MOVIMOT
®
flexible
114

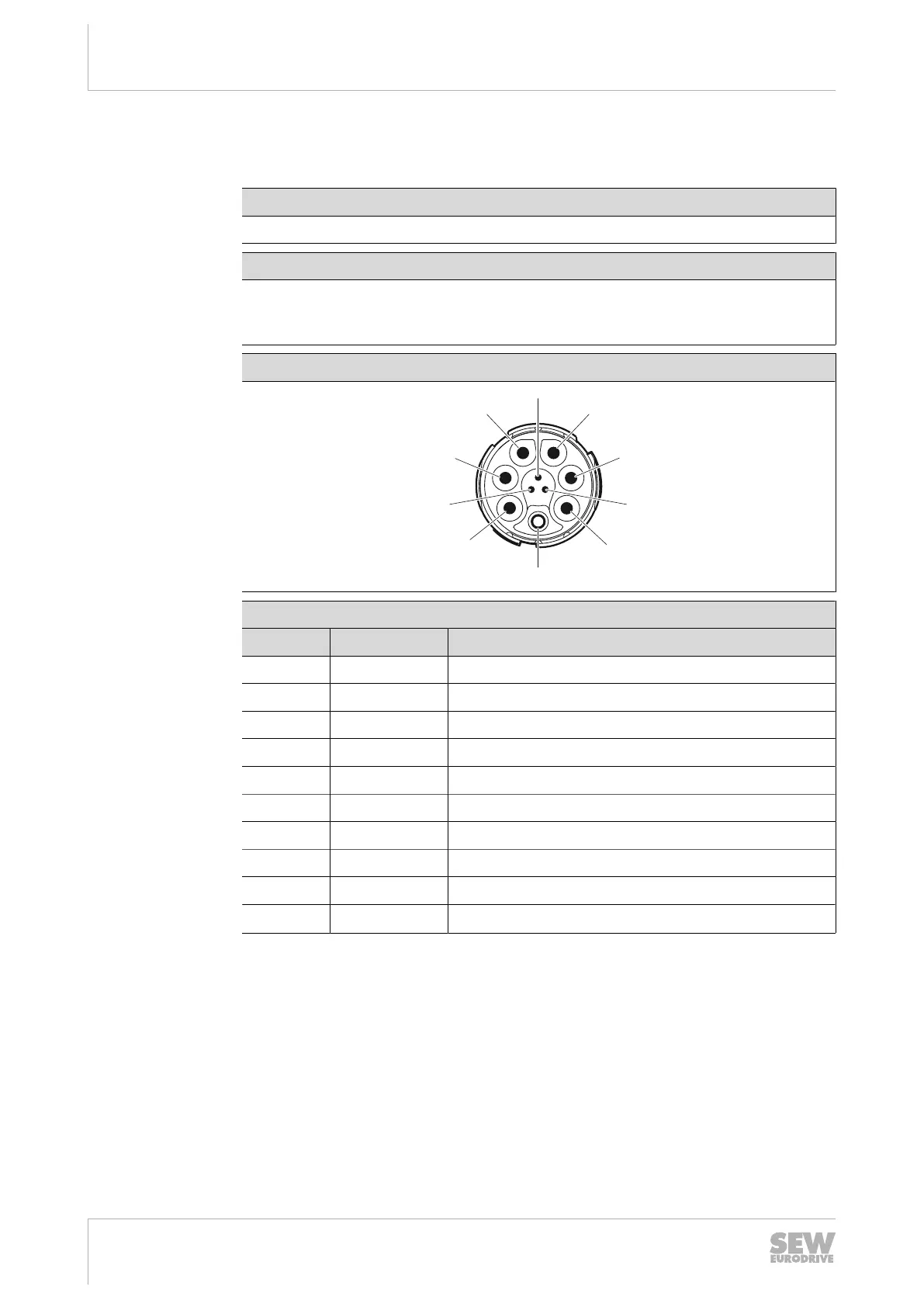

5.11.8 X2041: Inverter output for connecting motors without digital interface
The following table shows information about this connection:
Function
Inverter output for connecting motors without digital interface
Connection type
M23, female, union nut with female thread, TE Connectivity - Intercontec Products,
series 723, SEW insert, SpeedTec equipment, coding ring: brown, protected against
contact
Connection diagram
PE
F
3
E
D
2
C
B
1
A
Assignment
Contact Signal Description
A U Motor connection, phase U
B V Motor connection, phase V
C W Motor connection, phase W
D 13 Brake connection 13
E 14 Brake connection 14
F 15 Brake connection 15
PE PE PE connection
1 Temp+ Connection temperature sensor+
2 Res. Reserved
3 Temp- Connection temperature sensor -
29129451/EN – 12/2019
