5
Electrical installation
PC connection
Operating Instructions – MOVIMOT
®
flexible
125
Connection to X4141 (M12 at the connection box)
The engineering interface X31 in the connection box is assigned to the internal wiring
of plug connector X4141.
NOTICE
Unauthorized insertion of the STO jumper plug into the engineering interface.
Damage to the device.
• Never insert the STO jumper plug into the engineering interface.

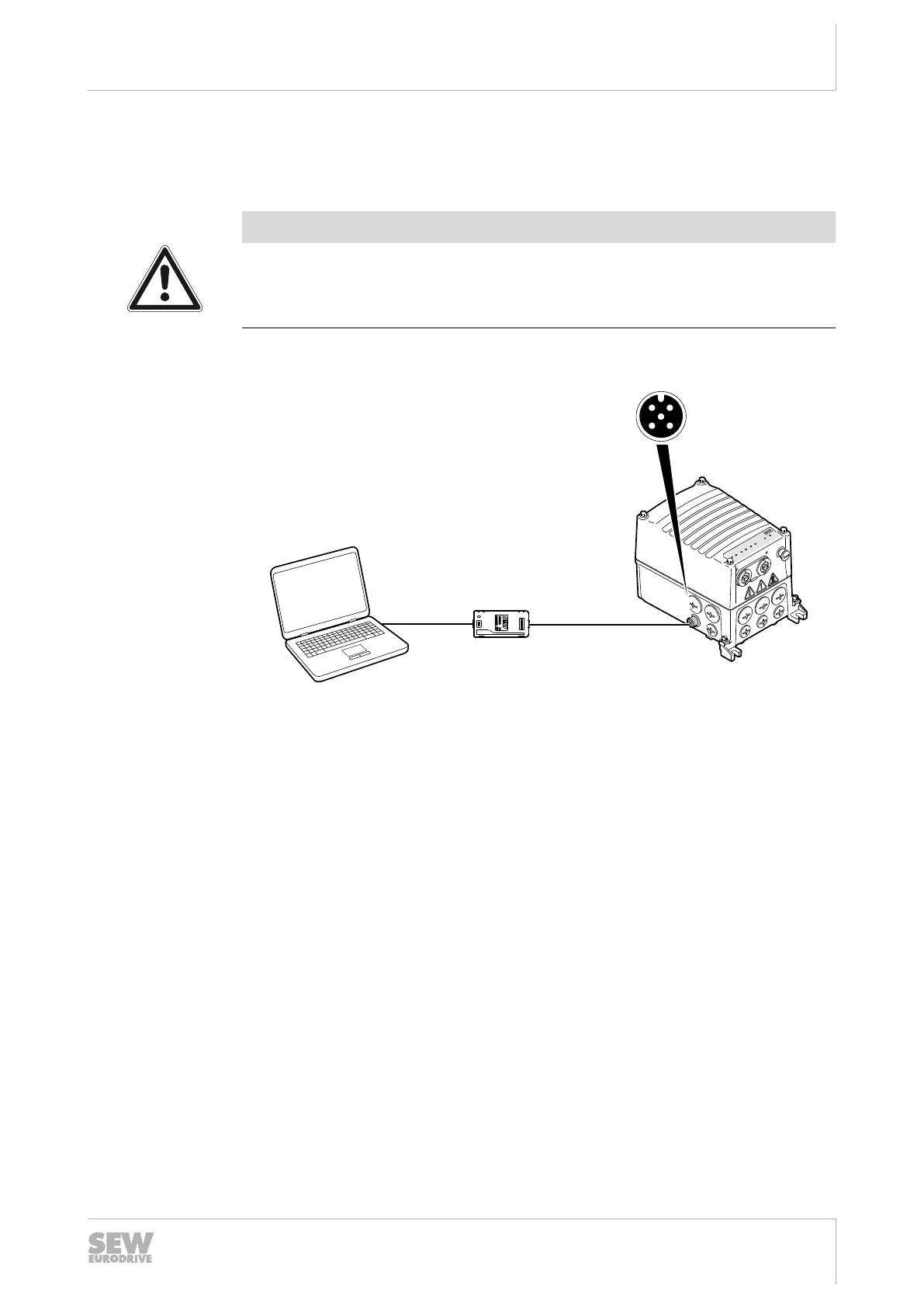

The following illustration shows how to connect the PC to the device:
30551277195
[1] USB 2.0 connection cable
(commercial, included of the USM21A delivery)
[2] USM21A interface adapter
[3] Connection cable RJ10/M12
(available for delivery from SEW‑EURODRIVE, part number: 28111680)
29129451/EN – 12/2019
