7
Operation
Function "Releasing the brake / deactivating DynaStop® with FCB01"
Operating Instructions – MOVIMOT
®
flexible
183

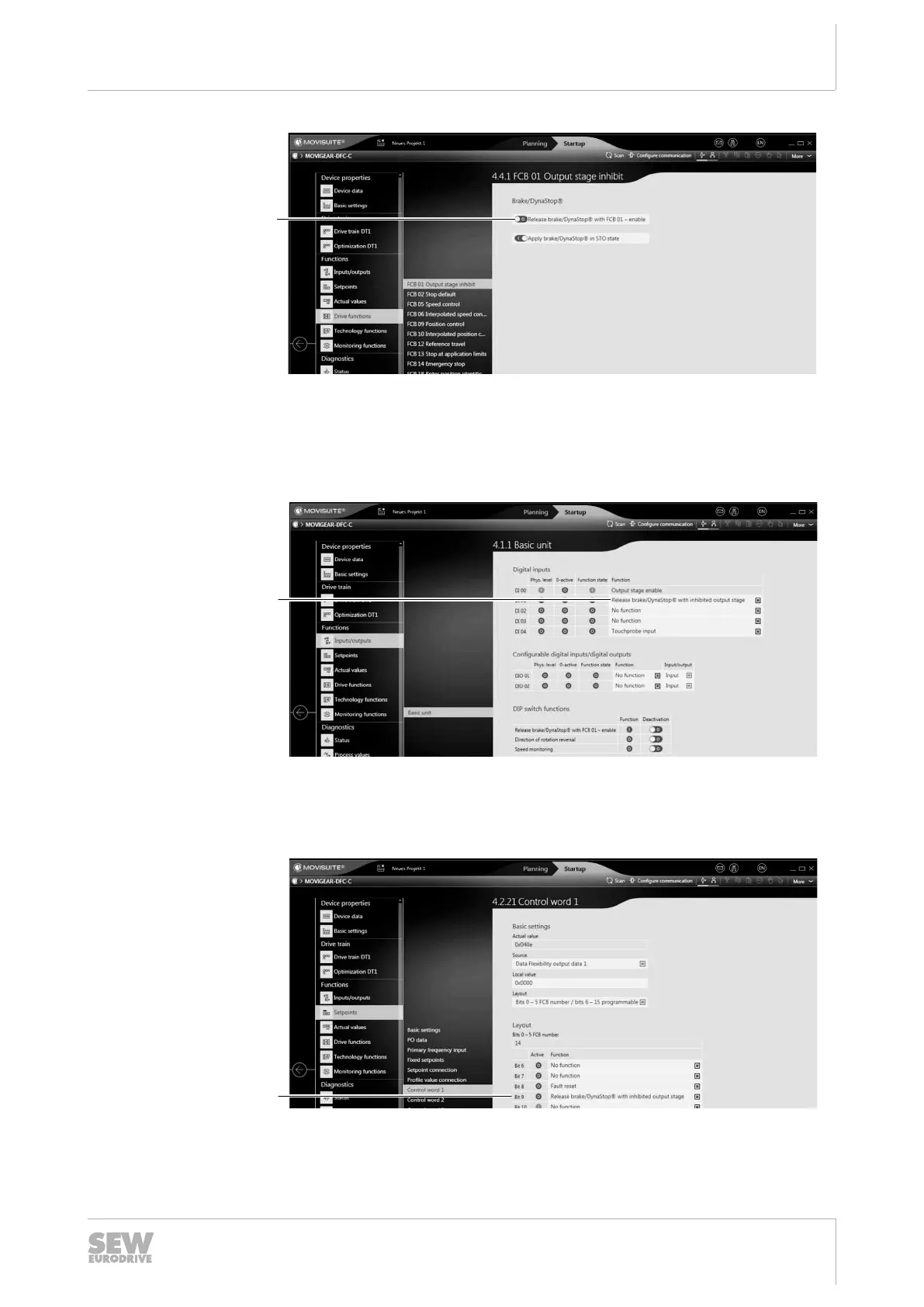

[1]
18014420484359179
2. Configuring the control signal:
• Control via the digital input
Assign the function "Releasing the brake / deactivating DynaStop
®
with
FCB01" [2] to a digital input.
[2]
18014420484362123
• Control via process data bit (not available with DBC designs)
Assign the function "Releasing the brake / deactivating DynaStop
®
with
FCB01" [3] to a process output bit.
[3]
27021619739106059
The set control signal can be used to release the brake/deactivate DynaStop
®
when
the function block FCB01 is active.
29129451/EN – 12/2019
