SEW-Eurodrive MOVIMOT flexible MMF1 C/DBC Series User Manual

3
Device structure
Electronics
Operating Instructions – MOVIMOT
®
flexible
24
Design MMF3.

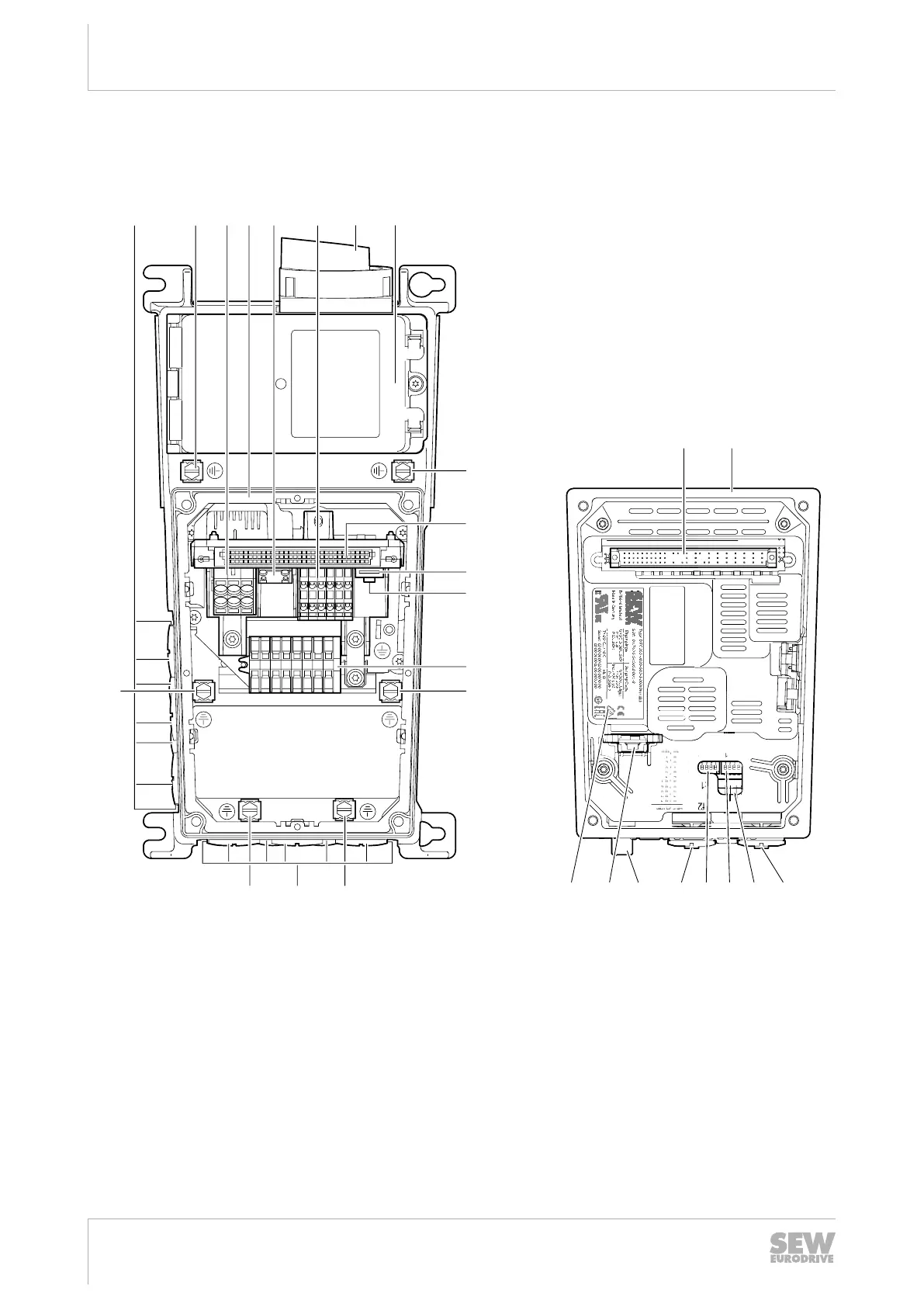

The following figure shows the connection box and the bottom side of the electronics
cover:
D C B A1 T2 U V W
S1 1 2 3 4 1 2 3 4 S2
ON
On
Off
3 4
3 4
3 4 1 2 3
f1
1 2 3
1 2 3
1 2 3 4 S2
On
On
Off
3 5 64 7
[11]
[4][3][2] [6][5] [7] [8][1]
[1]
[3][3]
[3][3]
[3]
[10]
[9]
[12]
[9] [13]
[21]
[16] [15][17][20] [19] [18] [14]
29487277963
[1] Cable glands [11] MOVILINK
®
DDI connection
[2] Screws for PE connection [12] Motor and brake connection
[3] Connection line L1, L2, L3 [13] Electronics cover
[4] Connection box [14] Potentiometer f1 (underneath the screw plug)
[5] Braking resistor connection [15] Potentiometer t1
[6] Electronics terminal strip [16] DIP switches S1/1 – S1/4
[7] Maintenance switch [17] DIP switches S2/1–S2/4
[8] Front module [18] Potentiometer f2 (underneath the screw plug)
[9] Plug connector connection unit for elec-
tronics cover
[19] Plug connector
[20] Replaceable memory module
[10] Engineering interface [21] Electronics cover nameplate
29129451/EN – 12/2019

SEW-Eurodrive MOVIMOT flexible MMF1 C/DBC Series Specifications

General

Brand	SEW-Eurodrive
Model	MOVIMOT flexible MMF1 C/DBC Series
Category	DC Drives
Language	English
