Line choke
Operating Instructions – MOVIMOT
®
flexible
326

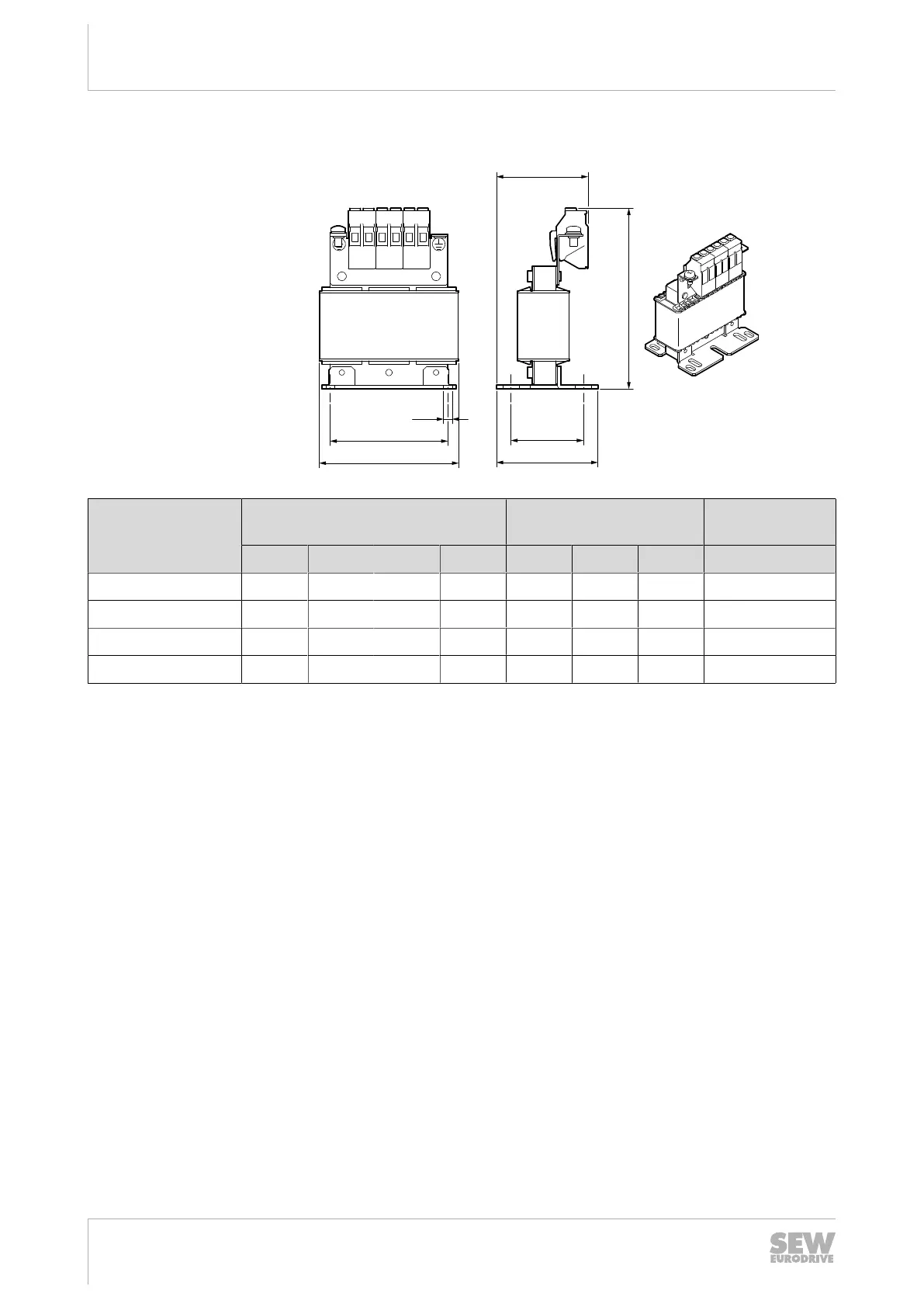

11.7.3 Dimension drawing
d
b
B
E
C
a
A
31249196171
Line choke Main dimensions in mm Mounting dimensions in
mm
Connection
A B C E a b d PE
ND0070-503 78 57 105 56 65 40 4.8 M4
ND0160-503 96 70 120 65 71 54 4.8 M4
ND0300-503 121 86 145 86 105 70 4.8 M5
ND0420-503 121 86 150 90 105 70 4.8 M5
29129451/EN – 12/2019
