Technical data and dimension sheets
Screw fittings
Operating Instructions – MOVIMOT
®
flexible
328

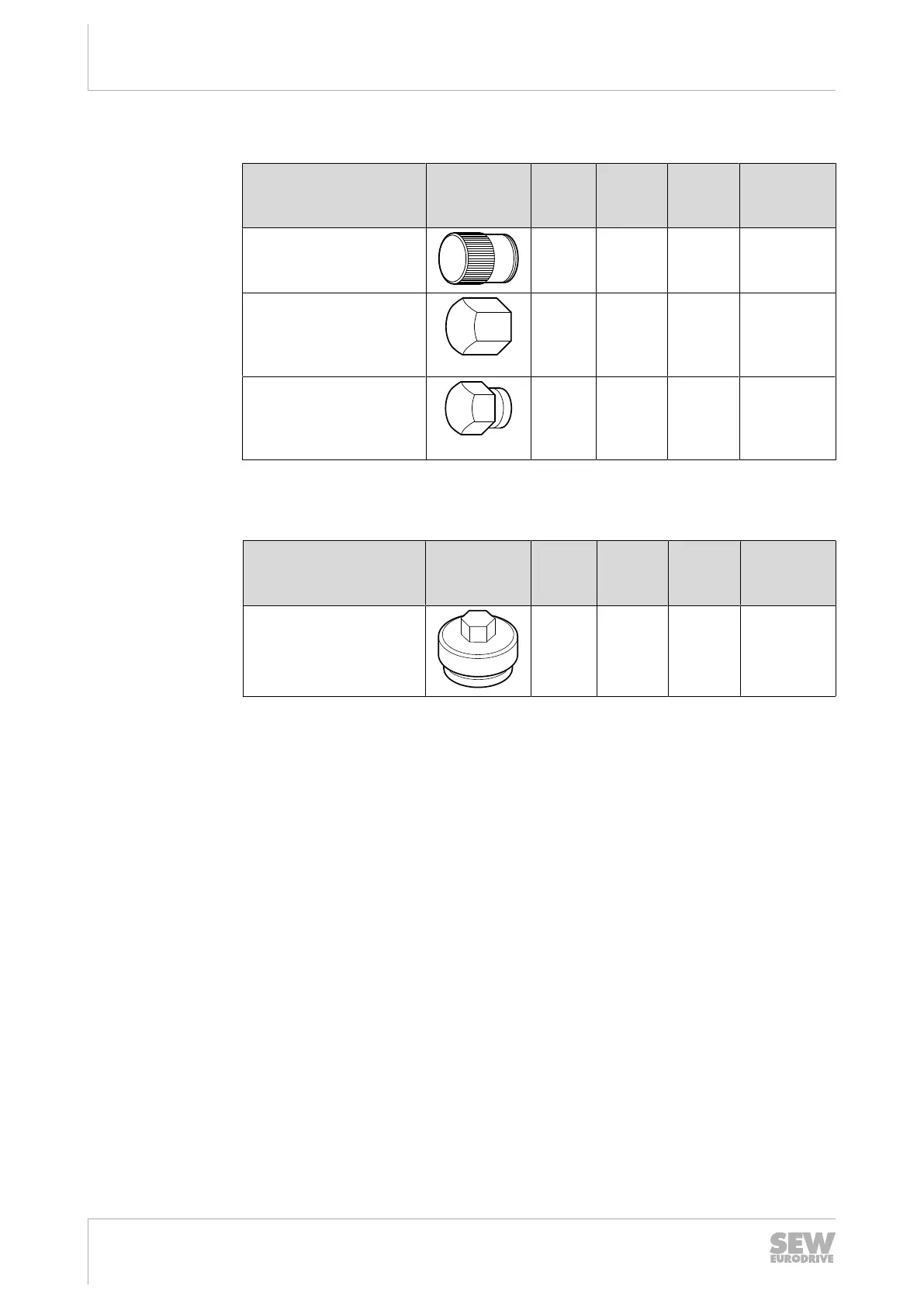

11.8.2 Screw fittings:Plug connectors
Type of screw fitting Figure Con-
tent
Size Tighten-
ing
torque
1)
Part num-
ber
M23 plug (made of
stainless steel)
1 piece M23 ×
1.5
Tighten
fully
19094558
M12 plug for plug con-
nector with male thread
(made of stainless
steel)
10 pcs M12 ×
1.0
2.3Nm 18202799
M12 plug for plug con-
nector with female
thread (made of stain-
less steel)
10 pcs M12 ×
1.0
2.3Nm 18202276
1) The specified torques must be adhered to with a tolerance of +/-10%.
11.8.3 Screw fittings of the potentiometer
Type of screw fitting Image Con-
tent
Size Tighten-
ing
torque
1)
Part num-
ber
Hexagon head screw
plug for potentiometer
(stainless steel)
10
piece
M24 ×
1.5
6.8Nm 18241077
1) The specified torques must be adhered to with a tolerance of +/-10%.
29129451/EN – 12/2019
