Technical data and dimension sheets
Dimension drawings of plug connectors in the connection box
Operating Instructions – MOVIMOT
®
flexible
339
11.13.2 Design MMF3.
Plug connectors
INFORMATION

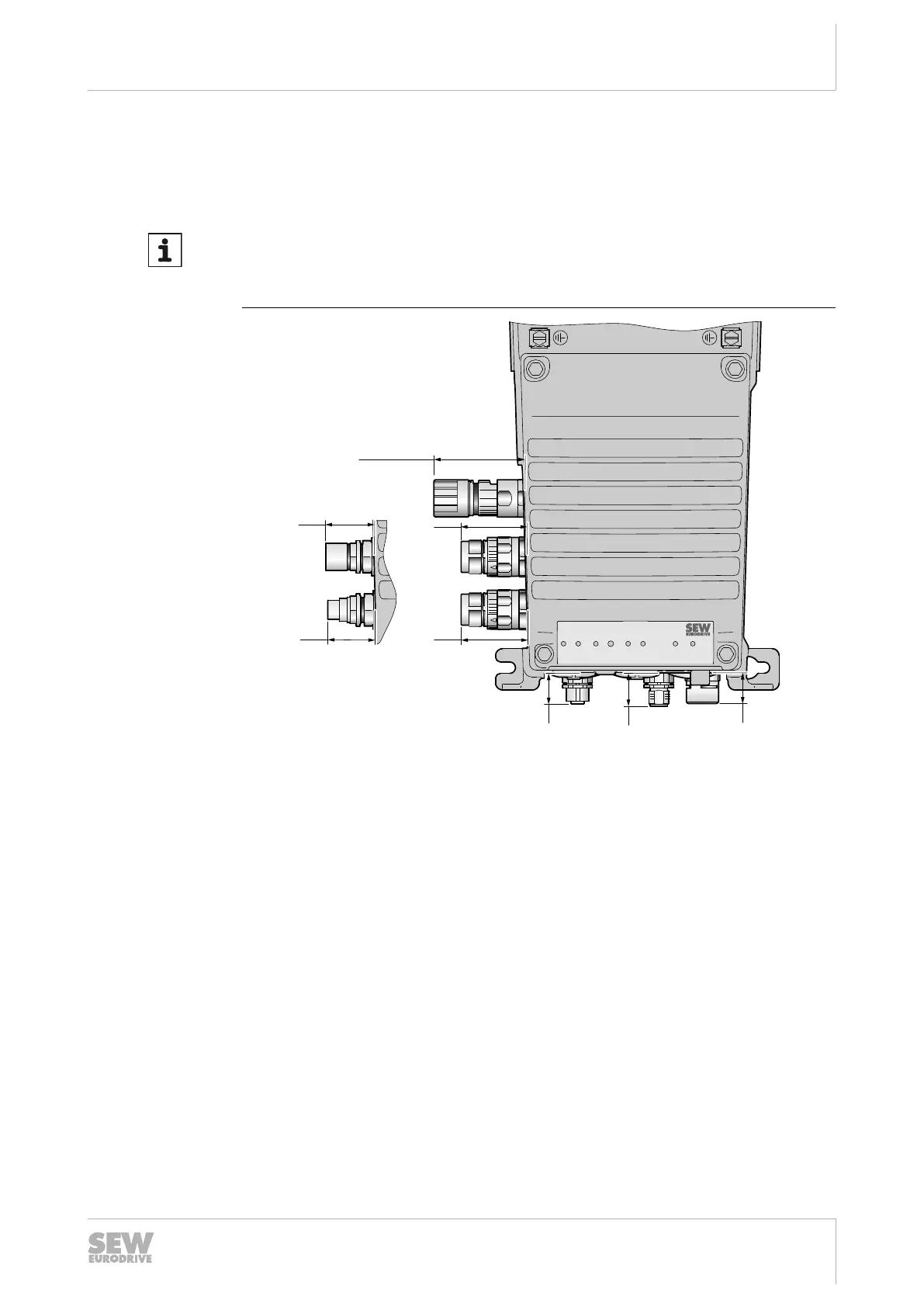

• The following figure shows an example of the additional dimensions of the op-
tional plug connectors for a possible plug connector configuration.
• For more information, refer to chapter "Plug connector positions".
16
[1]
56.2
1)
/69.0
2)
[7]
18
[3]
22
[2]
30
1)
32
1)
[5]
[6]
50
1)
[4]
50
1)
[4]
31249349515
1) "Straight" plug connector variant M23
2) "Right-angle" plug connector variant M23
[1] Optional pressure compensation
[2] M12 plug connector, male
[3] M12 plug connector, female
[4] Plug connector design M23, without union nut, female
[5] Plug connector design MQ15-X-Power, without union nut, male
[6] Plug connector design MQ15-X-Power, with union nut, female
[7] Plug connector design M23, with union nut, female
29129451/EN – 12/2019
