Functional safety
Integrated Safety Technology
Operating Instructions – MOVIMOT
®
flexible
345

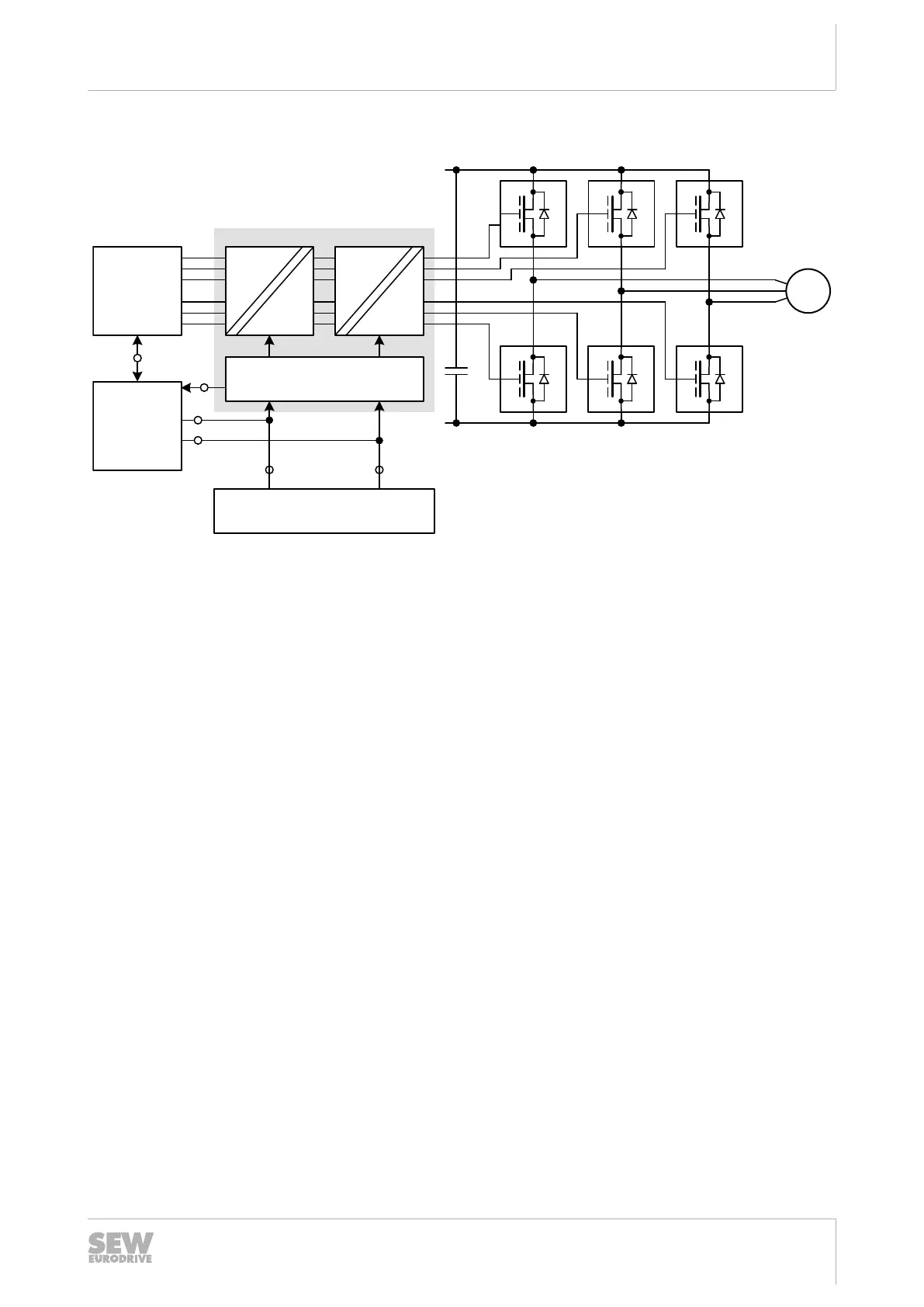

12.2.4 Schematic representation of the safety concept
Uz+
Uz-
[2]
[4]
[5]
[6]
[1]
[3]
23543720971
[1]
STO function
[2]
Drive control
[3]
Internal safety card (optional)
[4]
Diagnostics and inhibiting unit
[5]
External safety controller (optional)
[6]
Motor
29129451/EN – 12/2019
